Description

Price

1

Shift Shaft | Includes 1 to 5

420637592

$98.99

2

Sleeve

420247948

$4.23

3

SPRING - Call your local BRP dealership

420239422

Unavailable

4

Spring

420239431

$7.79

5

Retaining Ring 11 X 1

420945060

$1.47

6

STEP RING - Call your local BRP dealership

420247662

$9.27

7

Snap Ring

420245440

$2.74

8

Pin 8, M6 X 55

420229384

$5.71

9

Index Spring

420239243

$8.47

10

Index Lever

420248489

$29.99

11

Step Ring

420227716

$11.59

12

Flat Washer

224061121

$0.53

13

Torx Flange Screw M6 X 16

420440164

$2.19

14

Gear Locking Shaft Ass'y | Includes 14 to 15

420637155

$49.99

15

Retaining Ring

420945470

$5.50

16

Spring

420838419

$8.47

17

Control Lever

420248275

$15.81

18

Flat Washer

224061121

$0.53

19

Allen Screw M6 X 14

420840391

$1.69

20

Shift Drum

420657529

$174.49

21

Ball Bearing

420932290

$23.99

22

Ball Bearing

420232625

$20.99

23

Shim Index

420657174

$64.49

24

Allen Screw M8 X 40

420840686

$5.82

25

Shift Fork

420657148

$104.99

26

Shift Fork

420657572

$104.99

27

Fork Spindle

420657150

$43.99

28

Shift Fork

420657139

$104.99

29

Shift Fork

420657570

$43.99

30

ANGLE ROTATION SENSOR - Call your local BRP dealership

420265120

$204.99

31

Torx Flange Screw M6 X 16

420440164

$2.19

32a

Shift Actuating Lever Ass'y | Includes 32a to 37

420657196

$199.99

32b

Not Available As Spare Part - Friction Washer

Unavailable

33

Gear Shift Lever Ass'y | Includes 33 to 35

420657216

$69.99

34

Not Available As Spare Part - Friction Washer

Unavailable

35

Not Available As Spare Part - Friction Washer

Unavailable

36

Fitting Bolt

420441790

$16.87

37

Hex. Nut M6

420242350

$12.69

38

Sleeve

420647221

$64.49

39

Spring

420638011

$29.49

40

Allen Screw M6 X 20

420241939

$0.73

41

Sleeve

420249180

$15.87

42

Needle Bushing

420232031

$15.74

43

Washer

420627400

$4.44

44

FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership

420440270

Unavailable

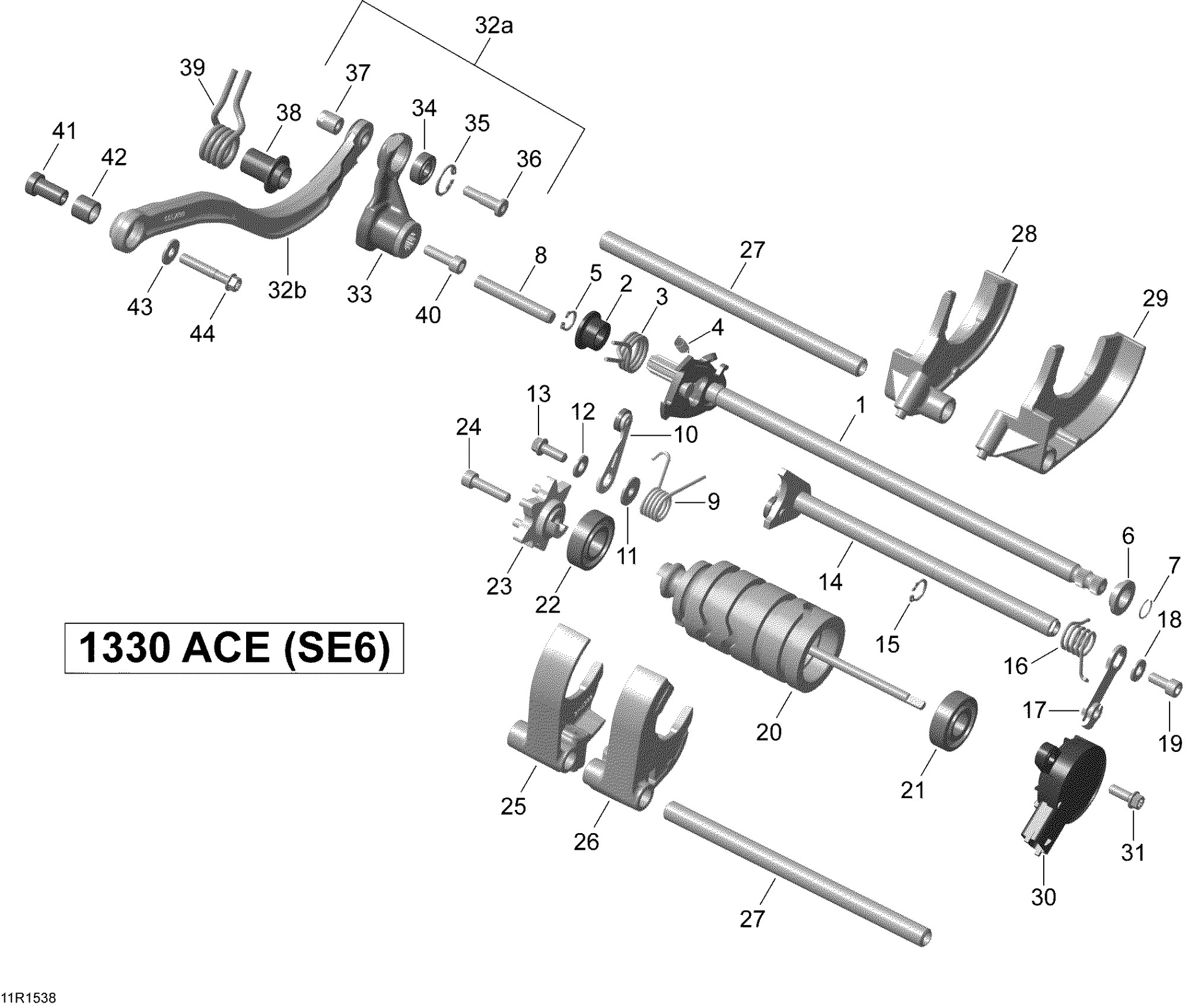

Can-Am Spyder F3-S SE6, 2015 05- Shifting System _11R1538 Diagram

Shift Shaft | Includes 1 to 5

Sleeve

SPRING - Call your local BRP dealership

Spring

Retaining Ring 11 X 1

STEP RING - Call your local BRP dealership

Snap Ring

Pin 8, M6 X 55

Index Spring

Index Lever

Step Ring

Flat Washer

Torx Flange Screw M6 X 16

Gear Locking Shaft Ass'y | Includes 14 to 15

Retaining Ring

Spring

Control Lever

Flat Washer

Allen Screw M6 X 14

Shift Drum

Ball Bearing

Ball Bearing

Shim Index

Allen Screw M8 X 40

Shift Fork

Shift Fork

Fork Spindle

Shift Fork

Shift Fork

ANGLE ROTATION SENSOR - Call your local BRP dealership

Torx Flange Screw M6 X 16

Shift Actuating Lever Ass'y | Includes 32a to 37

Not Available As Spare Part - Friction Washer

Gear Shift Lever Ass'y | Includes 33 to 35

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

Fitting Bolt

Hex. Nut M6

Sleeve

Spring

Allen Screw M6 X 20

Sleeve

Needle Bushing

Washer

FLANGED TORX SCREW M6 X 35 - Call your local BRP dealership
