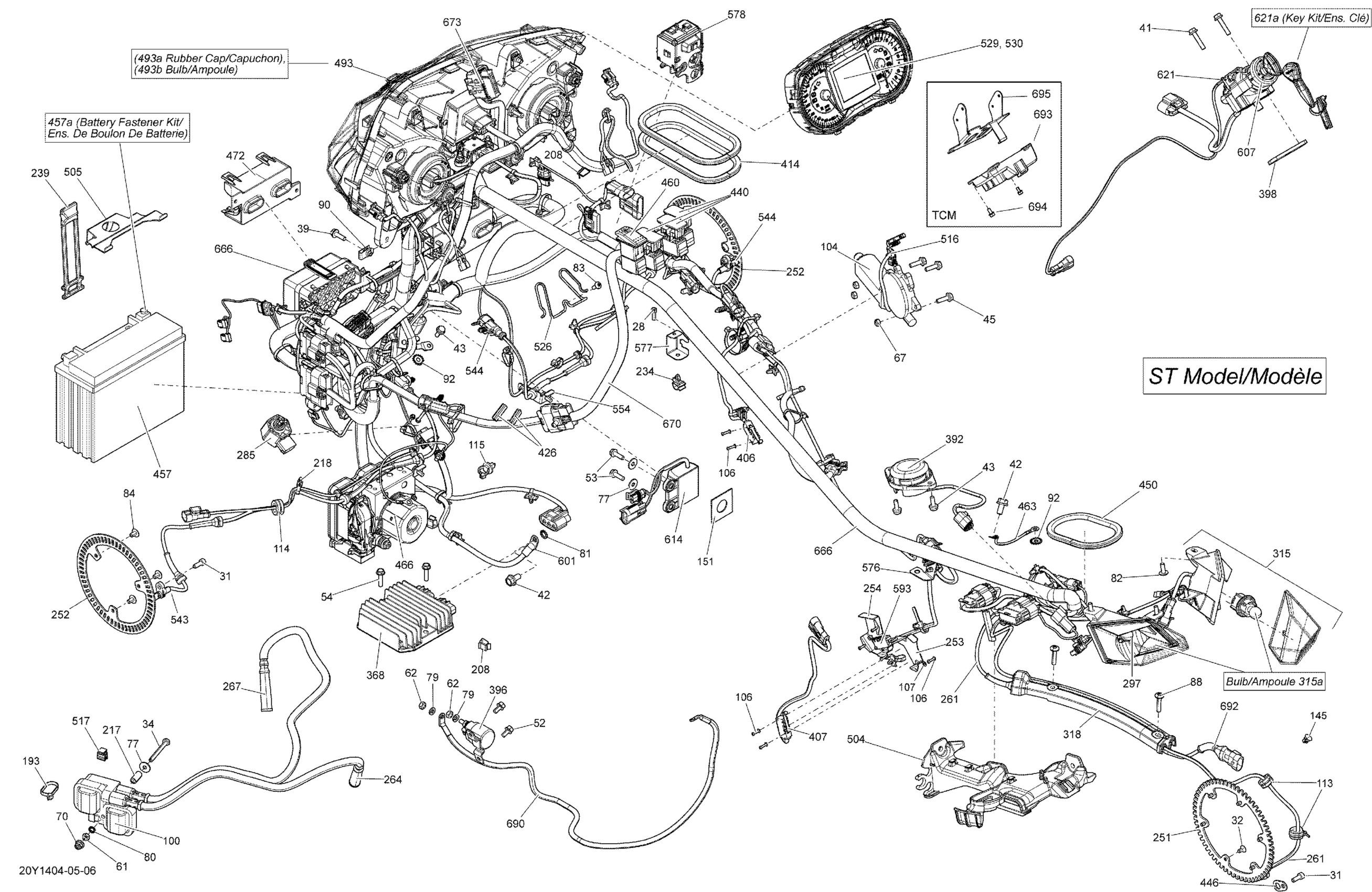

Can-Am Spyder STS SM5, 2014 10- Electrical System _20Y1405 Diagram

Socket Screw M5 X 16

205051644

$2.22

Socket Head Screw M6 X 16, Scotch Grip

205561660

$1.68

Socket Head Screw M5 X 10

205851036

$6.77

Hex. Screw M6 X 55

207065544

$2.11

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

Hex. Flange Screw M6 X 16

207661644

$0.74

Hex. Flange Screw M6 X 20

207662084

$1.69

Hex. Flange Screw M6 X 12

210261250

$1.90

Hexagonal Head Screw

210262050

$2.11

Hex. Flange Forming Screw M6 X 25

210262580

$1.90

Hex. Nut M6

232061414

$0.53

Hex. Nut M6

232061600

$1.15

Elastic Stop Nut M6

232561434

$1.99

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Flat Washer 6 mm

234062410

$0.77

Lock Washer Helical M6

234161601

$1.15

External Serrated Lock Washer 6 mm

234461608

$1.15

Serrated Lock Washer 8 mm

234481608

$1.15

Torx Truss Screw M6 X 16

250000721

$1.69

Torx Screw M5 X 14

250000742

$1.47

Torx-truss M/s M6 X 10

250000995

$4.44

Torx Truss Screw M6 X 30

250000843

$2.11

Panel Nut M6 X 1.0

250100198

$2.11

Lock Washer Serrated M6

250200041

$1.15

Ignition Coil

278001546

$158.99

Windshield Motor

278002579

$234.99

RIVET_POP 1/8 X ,625 - Call your local BRP dealership

293150023

Unavailable

Flat Washer M3, Stainless

234032600

$0.55

Grommet

293720084

$6.09

Grommet

293720095

$7.69

Mount Dart

293730040

$1.04

Tie Rap Mount

293750044

$2.49

Rubber Bumper

293830091

$8.29

Tie-Rap 180 mm

414115200

$0.11

Clip

414227300

$1.67

SPACER - Call your local BRP dealership

512059812

Unavailable

WRAP_TIE 200 X 4.6 - Call your local BRP dealership

515175220

Unavailable

Tie Rap Mount (screwable)

515176795

$5.39

Latch

520000528

$7.69

Sensor Wheel

705601372

$46.99

Front Sensor Wheel

705601512

$43.99

LPS Deflector

705601402

$13.23

Deflector

705601344

$12.71

Speed Sensor

706202361

$164.99

Cable Ass'y

707000399

$71.99

Cable Ass'y

707000518

$65.99

Steering Position Sensor

219800354

$269.99

LH Tail Light Ass'y

515176850

$59.49

RH Tail Light Ass'y

515176849

$59.49

Bulb

520000758

$9.10

PROTECTOR - Call your local BRP dealership

710001035

Unavailable

Voltage Regulator | XT, XTP, LTD

710001191

$185.49

Passenger Detection Switch

710008103

$76.99

Starter Relay

710007777

$48.49

Switch Support

710001365

$20.99

Brake Pressure Switch Ass'y

710001379

$43.49

Brake Pressure Switch Ass'y

710001379

$43.49

Trim 1000Mm Long

219704354

$15.99

Trim 1000Mm Long

219704354

$15.99

Plug Carling | Australia, Brazil, Europe, Japan

710007173

$8.85

Shim

710002024

$5.66

Trim 1000Mm Long

219704354

$15.99

Battery, 12 Volts, 21 Amperes

410922962

$194.99

Battery Bolt Kit

250000282

$7.29

Switch, Parking Brake

710002350

$25.99

Fuel Tank Cable

710004368

Unavailable

VCM Module

219800375

$1,229.99

FUSE HOLDER SUPPORT - Call your local BRP dealership

710002388

Unavailable

Headlamp

710004953

$369.99

Rubber Cap Protector

219800280

$19.49

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

Rear Support

710002860

$11.49

Battery Holder

710002893

$17.49

Clip Tie-Rap

710002899

$8.49

Clip Tie-Rap

710002899

$8.49

Grommet Spindle

710003017

$14.83

Speed-Prog | Includes 529 à 530

710004722

$1,139.99

Lens | XTP

415129349

$24.49

Kit Speed Sensor

219800456

$86.99

Kit Speed Sensor

219800456

$86.99

Connectors Bracket

710003305

$13.17

KNOCK HOLDER SUPPORT - Call your local BRP dealership

710003306

Unavailable

Connector Support

710003310

Unavailable

Brake Light Switch Ass'y

710003412

$46.49

Cable Neg

710004733

$61.99

Switch Cover

710003594

$16.49

Dess Module

710004916

$179.99

Ignition Switch with Harness

710005640

$306.99

Ignition Key Kit | Includes 35b1 to 35b1a

710004408

$63.49

Harnness Frame, ST/SM5 | SM5

710003654

Unavailable

WIRING HARNESS_CHASSIS - Call your local BRP dealership | SE5

710003655

Unavailable

WIRING HARNESS_SWITCH - Call your local BRP dealership

710004762

Unavailable

WIRING HARNESS_CONSOLE - Call your local BRP dealership | Europe, Int'l

710004358

Unavailable

WIRING HARNESS_CONSOLE - Call your local BRP dealership

710004754

Unavailable

START CABLE - Call your local BRP dealership

710004735

Unavailable

WIRING HARNESS REAR - Call your local BRP dealership

710004756

Unavailable

CALIBRATED MODULE - Call your local BRP dealership | SE5

710003750

Unavailable

Hex. Flange Screw M6 X 12

210261250

$1.90

Tcm Support | SE5

710004629

$15.99
