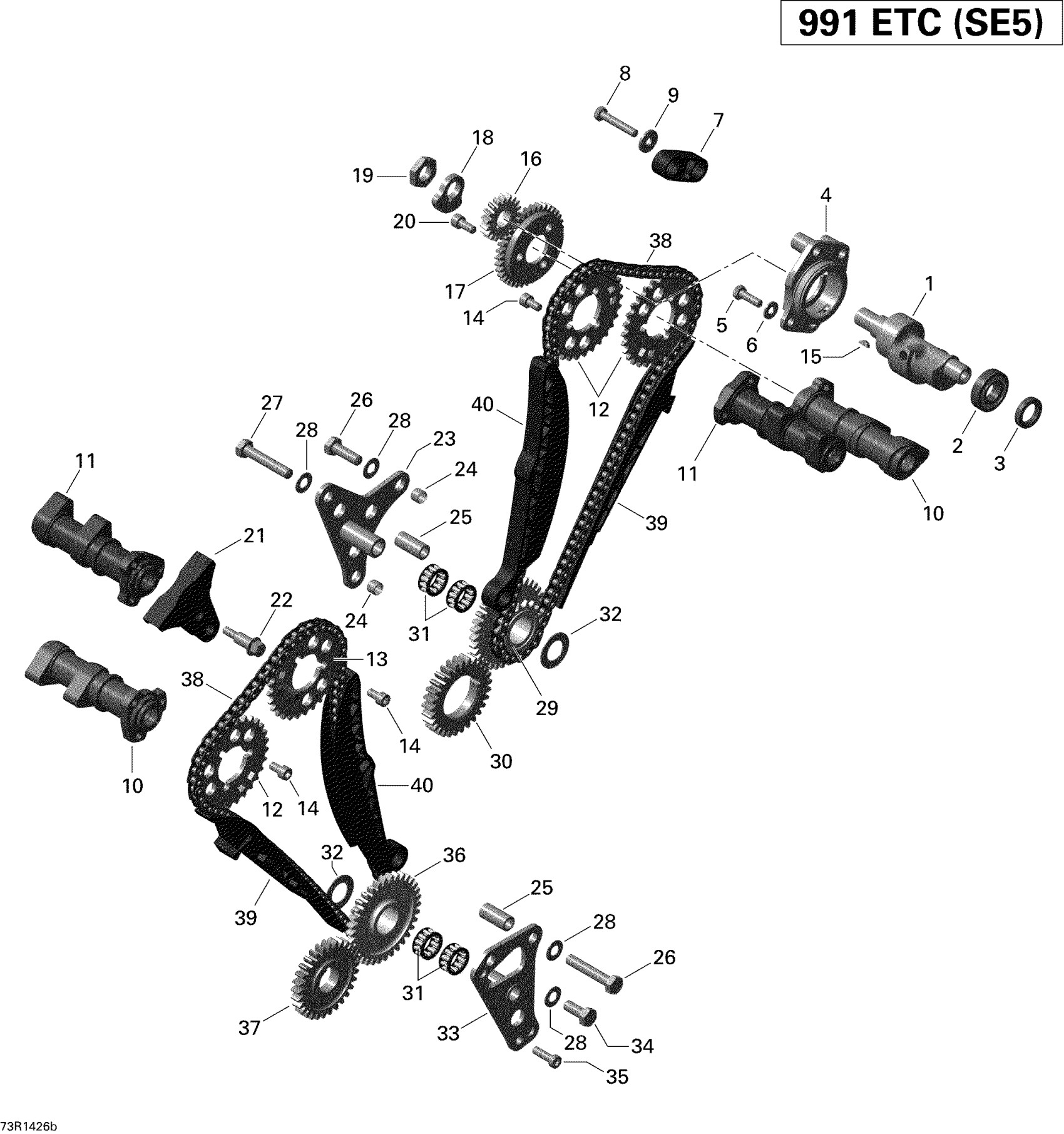

Can-Am Spyder STS SE5, 2014 01- Valve Train Diagram

#

Description
Price

1

Top Balancer

420220442

$153.49

2

Ball Bearing

420832362

$23.99

3

Oil Seal

420250130

$17.59

4

Flange Bearing

420211686

$27.49

5

HEX. SCREW M6 X 20 - Call your local BRP dealership

420940560

Unavailable

6

Flat Washer

224061121

$0.53

7

Chain Guide

420236380

$18.45

8

Hex. Flange Screw M6 X 35

207063544

$1.37

9

FLAT WASHER - Call your local BRP dealership

420827305

Unavailable

10

CAMSHAFT EXHAUST - Call your local BRP dealership

420620945

Unavailable

11

INTAKE CAMSHAFT - Call your local BRP dealership

420620940

Unavailable

12

TIMING GEAR - Call your local BRP dealership

420435112

Unavailable

13

TIMING GEAR - Call your local BRP dealership

420435116

Unavailable

14

Socket Head Screw M6 X 11.5

420840379

$5.90

15

Woodruff Key

420246055

$2.43

16

Gear-Balance Assy. | Includes 16 to 17

420295777

$103.99

17

Not Available As Spare Part - Friction Washer

Unavailable

18

BALANCING - Call your local BRP dealership

420219340

$10.99

19

HEX. NUT M14 X 1 - Call your local BRP dealership

420942571

Unavailable

20

Allen Screw M6 X 14

420840391

$1.69

21

Chain Guide

420236322

$16.95

22

DISTANCE SCREW M6 X 16 - Call your local BRP dealership

420240960

Unavailable

23

Flange Bearing

420211756

$71.99

24

DOWEL TUBE - Call your local BRP dealership

420929501

Unavailable

25

SLEEVE - Call your local BRP dealership

420247980

Unavailable

26

Hex. Screw M8 X 45

207084544

$1.48

27

Hex. Screw M8 X 25

207182544

$0.90

28

SPRING WASHER - Call your local BRP dealership

420845030

Unavailable

29

Camshaft Drive Gear Ass'Y | Includes 7 to 8

420295762

$104.99

30

Not Available As Spare Part - Friction Washer

Unavailable

31

Needle Bearing

420632162

$23.99

32

Thrust Washer

420627190

$7.09

33

Flange Bearing

420211766

$73.99

34

Hex. Screw M8 X 18

207181860

$1.48

35

SOCKET HEAD SCREW M6 X 20 - Call your local BRP dealership

420240404

Unavailable

36

Distribution Drive Gear Ass'Y | Includes 25 to 26

420295767

$104.99

37

Not Available As Spare Part - Friction Washer

Unavailable

38

Camshaft Chain

420297957

$100.49

39

Chain Guide

420236310

$28.49

40

Chain Tension Guide

420236300

$30.49
