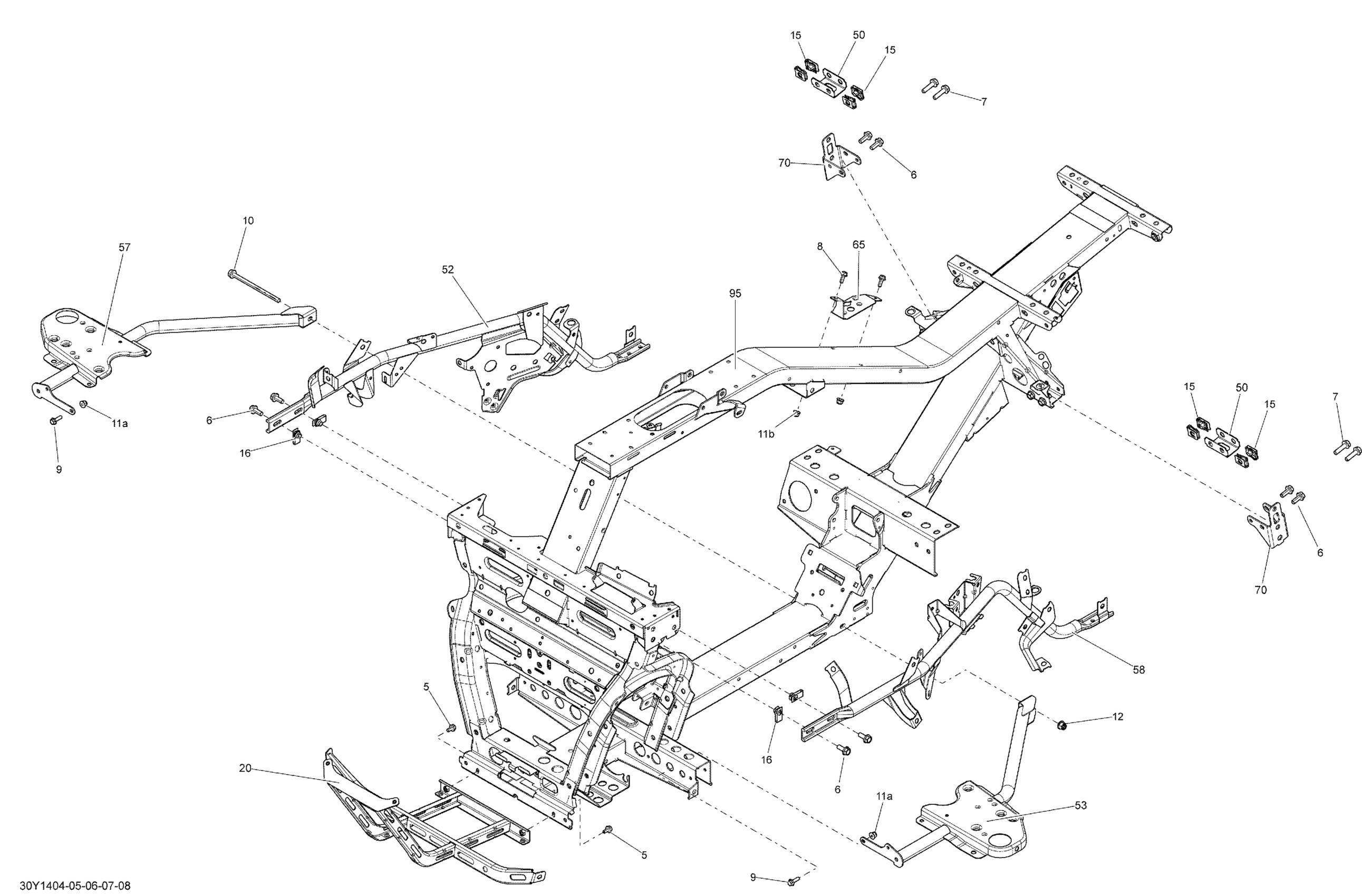

Can-Am Spyder ST SE5, 2014 09- Frame _30Y1404 Diagram

#

Description
Price

5

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

6

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

7

Not Available As Spare Parts

XXX

Unavailable

8

Hex. Flange Screw M6 X 16

207661646

$1.36

9

Hex. Flange Screw M6 X 20

207662044

$2.00

10

Hex. Flange Screw M8 X 130

230683034

$7.51

12

Hex. Flange Elastic Nut M8

233281414

$1.47

15

Panel Nut M8 X 1.25

250100069

$4.29

16

Panel Nut M8 X 1.25

250100118

$2.09

20

Front Frame

705201326

$81.99

50

U-Bracket

705202484

$19.49

52

RH Painted Lateral Support Ass'y

705204510

$159.99

53

LH Painted Lower Lateral Support

705202626

$85.99

57

RH LOWER SIDE SUPPORT - Call your local BRP dealership

705202680

Unavailable

58

LH UPPER SIDE SUPPORT - Call your local BRP dealership

705202681

Unavailable

65

Latch Support

705205078

$15.49

70

REAR SUPPORT - Call your local BRP dealership

705202963

Unavailable

95

Frame

705204866

$1,389.99

11a

ELASTIC FLANGE NUT M6 - Call your local BRP dealership

250100130

Unavailable

11b

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47
