Description

Price

3

Hex. Flange Screw M6 X 12, Scotch Grip

207561234

$2.11

4

Hex. Flange Screw M8 X 30, Scotch Grip

207583044

$1.69

5

Hex. Flange Screw M6 X 20

207662044

$2.00

6

Hex. Flange Screw M6 X 45

207664544

$1.46

7

Flat Washer, Stainless/Neoprene

211200055

$0.73

8

Flat Washer

224061201

$1.37

9

Hex. Flange Screw M6 X 130

230663084

$3.38

10

Hex. Nut M6

232061414

$0.53

11

Domed Nut M6

232361493

$2.11

13

Flange Elastic Nut M6

233261434

$4.44

14

Hex. Flange Elastic Nut M6

233261494

$1.58

15

Hex. Flange Elastic Nut M8

233281414

$1.47

16

Flat Washer M6, Stainless

234062600

$0.77

17

Torx Screw K50 X 16

250000720

$1.69

18

Torx Screw M6 x 25

250000284

$2.11

19

Torx Truss Screw M6 X 20

250000303

$7.27

20

Torx Truss Screw M6 X 16

250000348

$2.11

21

Torx Truss Screw M6 X 10

250000349

$7.51

22

Torx Truss Screw M6 X 20

250000350

$5.29

23

Torx Truss Screw M6 X 30

250000843

$2.11

24

Torx Screw M6 X 12

250000454

$4.44

25

Panel Nut M6 X 1.0

250100198

$2.11

26

Ball Head Stud

250300016

$14.81

27

Ball Head Stud

250300039

$7.51

30

Tuflok Plastic Rivet

293150230

$1.47

32

Tie Wrap 142 mm

293750002

$1.25

33

Tie-rap Mount (square - self-adhsive)

293750040

$3.99

35

Tie-Rap 180 mm

414115200

$0.11

36

Lateral Console Foam

518327441

$6.99

40

Plastic Washer

705003207

$0.80

41

Heat Shield

705004173

$47.99

42

Deep Black, LH Arm Rest | Model-With Black Seat

708000614

$89.99

44

Deep Black, RH Arm Rest | Model-With Black Seat

708000615

$89.99

51

Hinge

708300006

$25.99

55

Main Control (WO lock cylinder)

708302620

$164.99

63

Gaz Shock

708300011

$79.99

67

Fender Rear

708302277

$204.99

68

Panel R B-302 | Model-Black

708301560

$329.99

68

Panel R B-367 | Model-Cognac

708301569

$329.99

68

Rear Pannel, Vegas White B-313 | Model-White

708301564

$329.99

68

CIRCUIT YELLOW REAR PANNEL - Call your local BRP dealership | Model-Yellow

708300800

Unavailable

69

Not Available As Spare Parts

XXX

Unavailable

74

RH Handle Pannel

708300027

$84.99

75

Under Tail Rear Wheel Cover

708300028

$49.99

76

Sound Box LH

708301555

$80.49

77

RH SOUND BOX - Call your local BRP dealership

708300037

Unavailable

80

STORAGE - Call your local BRP dealership

708300044

Unavailable

89

Deep Black RH Grille | Model-With Black Seat

708300382

Unavailable

91

Back Plate Support

708300129

$11.49

92

RH Radio Antena Base

708300156

$22.49

93

License Plate Light Support

708300177

$14.49

94

LH Handle Pannel

708300209

$84.99

95

LH Inner Fender

708300327

$56.99

96

RH Inner Fender

708300328

$56.99

97

Deep Black LH Grille | Model-With Black Seat

708300381

Unavailable

99

Gaz Shock

708300383

$79.99

102

Spacer

708300384

$14.49

103

Retainer Cable

708300385

$38.99

105

Spacer

708300394

$14.99

106

Seal

708300397

$38.99

107

Cap

708300405

$6.39

111

Seal, 1PC = 3M

293830188

$39.99

114

Not Available As Spare Parts

XXX

Unavailable

115

Latch Protector

708300514

$15.99

120

Inner Cover

708300678

$89.99

129

Timeless Black LH Arm Cover | Model-Black

708301125

Unavailable

129

Cognac LH Arm Cover | Model-Cognac

708301123

Unavailable

129

Arm Cover LH, Vegas White B-313 | Model-White

708300708

$244.99

129

Circuit Yellow LH Arm Cover | Model-Yellow

708300795

Unavailable

130

TRIM REST ARM RH B-302 - Call your local BRP dealership | Model-Black

708301126

Unavailable

130

TRIM REST ARM RH B-367 - Call your local BRP dealership | Model-Cognac

708301124

Unavailable

130

Arm Cover RH, Vegas White B-313 | Model-White

708300709

$244.99

130

TRIM REST ARM RH B-349 - Call your local BRP dealership | Model-Yellow

708300796

Unavailable

131

CAP ANTENNA LH B-302 - Call your local BRP dealership | Model-Black

708301130

Unavailable

131

Antenna Cap LH, Vegas White B-313 | Model-White

708300716

$15.99

131

CAP ANTENNA LH B-349 - Call your local BRP dealership | Model-Yellow

708300798

Unavailable

131

CAP ANTENNA LH B-367 - Call your local BRP dealership | Model-Cognac

708301129

Unavailable

134

Center Latch

708301642

$154.99

135

Latch Ass'y RH

708301641

$154.99

136

Latch Ass'y LH

708301640

$154.99

141

Cargo Box Inner LH

708301016

$92.99

142

Cargo Box Inner RH

708301017

$92.99

145

Cover Interior RH

708301022

$83.99

146

Cover Interior LH

708301023

$83.99

152

LH Passenger Handle Heat Ass'y | Includes 152 to 153

708300496

$142.99

153

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

154

Male Housing, 2 Circuits

710000667

$8.32

155

RH Passenger Handle Heat Ass'y | Includes 155 to 157

708300498

$142.99

156

Vinyl Tubing, Low Temp 3000Mm Long

219704424

$20.99

157

Male Housing, 2 Circuits

710000667

$8.32

158

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

159

Hex. Elastic Stop Nut M6

232561600

$1.15

160

Rear Support Ass'y | Includes 160 to 162

708300781

$279.99

161

M6 Nut Housing Ass'y | Includes 7r to 7r2

269500725

$4.55

162

Hex. Elastic Stop Nut M6

232561600

$1.15

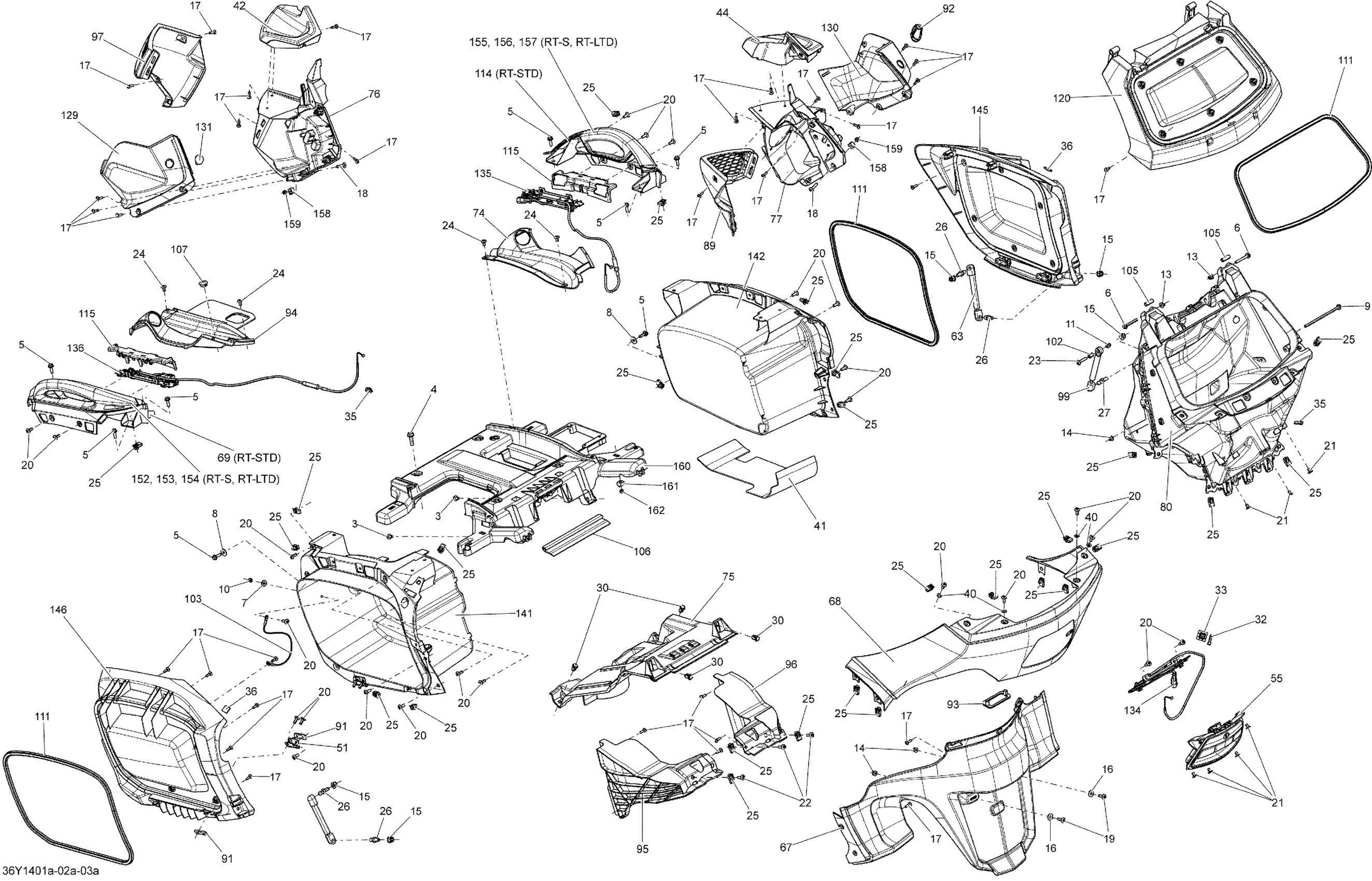

Can-Am Spyder RTS SM6, 2014 09- Luggages _36Y1402a Diagram
