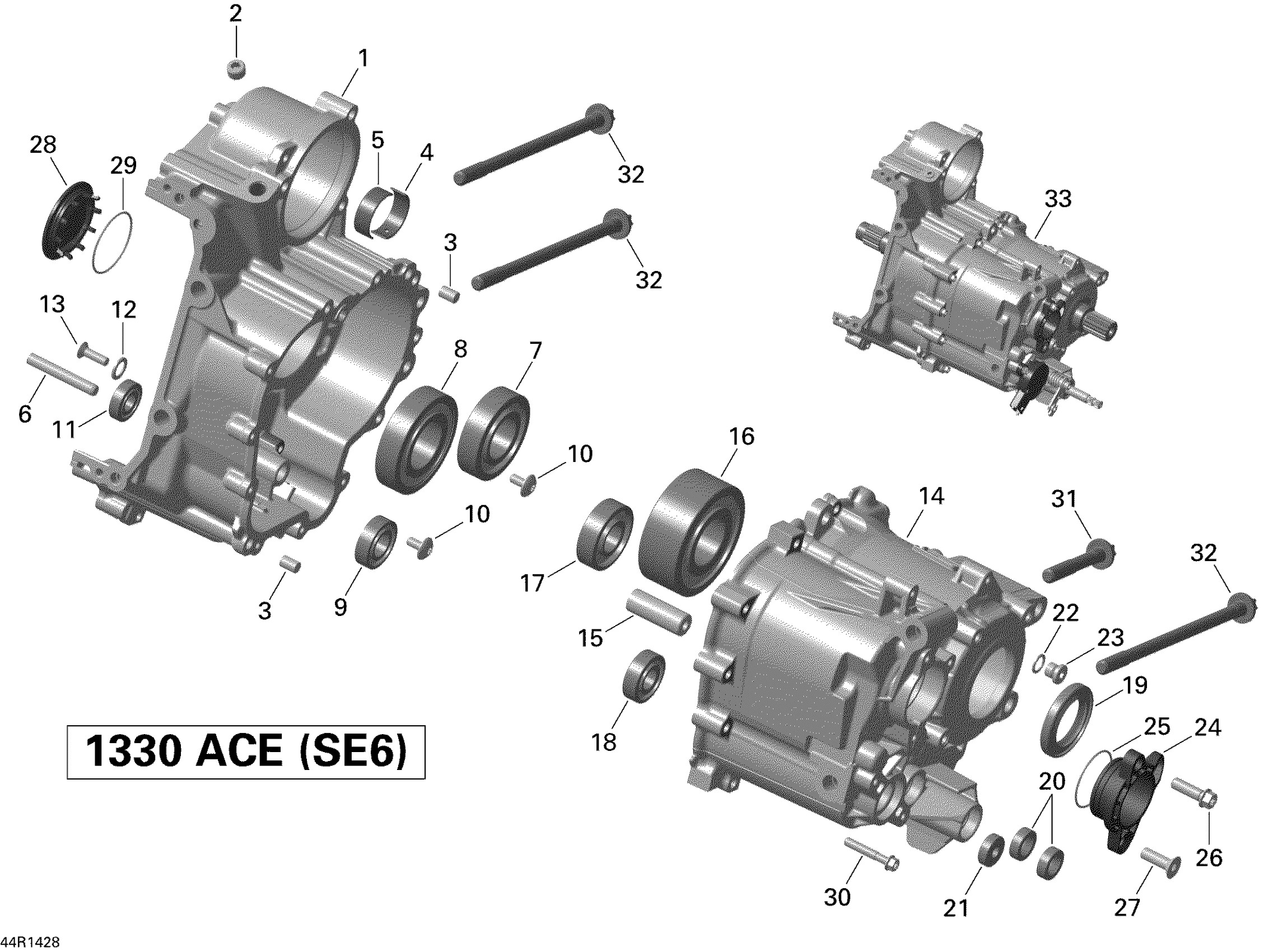

Can-Am Spyder RTS SE6, 2014 01- Gearbox Housing Diagram

#

Description
Price

1

GEAR HOUSING ASS'Y, CLUTCH SIDE - Call your local BRP dealership | Includes 1 to 13

420210215

Unavailable

2

Plug Screw M12 X 1.5

420840657

$8.57

3

Center Pin 8 X 12

420632010

$4.01

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

PIN, M6 X 55 - Call your local BRP dealership

420229385

Unavailable

7

Ball Bearing

420232782

$24.49

8

Ball Bearing

420832232

$13.16

9

Ball Bearing

420232625

$20.99

10

Hex Flat Head Screw M6 X 13 T30

420241537

$3.17

11

BALL BEARING - Call your local BRP dealership

420232402

Unavailable

12

Washer

420227085

$2.75

13

Screw M6 X 20

420941436

$3.17

14

GEAR HOUSING ASS'Y, PTO SIDE - Call your local BRP dealership | Includes 14 to 19

420210205

Unavailable

15

Bolt

420249050

$20.99

16

Not Available As Spare Part - Friction Washer

Unavailable

17

Ball Bearing

420932677

$23.99

18

Ball Bearing

420932290

$23.99

19

Oil Seal

420831185

$19.99

20

Oil Seal

420250455

$17.38

21

Oil Seal

420631910

$12.16

22

Oil Seal

420230150

$2.85

23

Plug Screw M10 X 1

420641733

$12.72

24

Cover Support

420211240

$15.81

25

O-Ring

420230035

$8.26

26

Torx Flange Screw M6 X 20

420440207

$3.06

27

Screw M6 X 20

420941436

$3.17

28

Cover

420201050

$10.17

29

O-Ring

420831160

$2.32

30

Torx Flange Screw M6 X 35

420440274

$1.01

31

Torx Screw M10 X 65

420441521

$5.82

32

Torx Screw M10 X 175

420640136

$12.16

33

Gearbox

420686484

$3,299.99

33

GEARBOX - Call your local BRP dealership | Model-Australia, Brazil

420685784

$2,999.99
