Description

Price

1

SPRAG CLUTCH HOUSING - Call your local BRP dealership

420458010

Unavailable

2

SPRAG CLUTCH - Call your local BRP dealership

420659090

Unavailable

3

Socket Head Screw M8 X1 8

420641509

$3.49

4

GEAR 66 TEETH ASS'Y - Call your local BRP dealership | Includes 4 to 5

420435335

Unavailable

5

Not Available As Spare Part - Friction Washer

Unavailable

6

Thrust Washer

420427111

$4.23

7

Circlip

420945720

$3.49

8

Starter Ass'y | Includes 8 to 9

420893830

$265.99

9

O-Ring

420250140

$8.57

10

Torx Flange Screw M6 X 30

420440647

$2.00

11

Pin Cylindrical

420229472

$14.24

12

Double Gear

420435382

$179.99

13

Gear 44 Teeth

420435390

$79.99

14

Gasket

420450010

$19.49

15

Cover

420210290

$169.49

16

Torx Flange Screw M6 X 35

420440274

$1.01

17

O-Ring

420430783

$1.90

18

Plug Screw M24 X 1.5

420241635

$5.82

19

Carbon Brush Set

420881145

$204.99

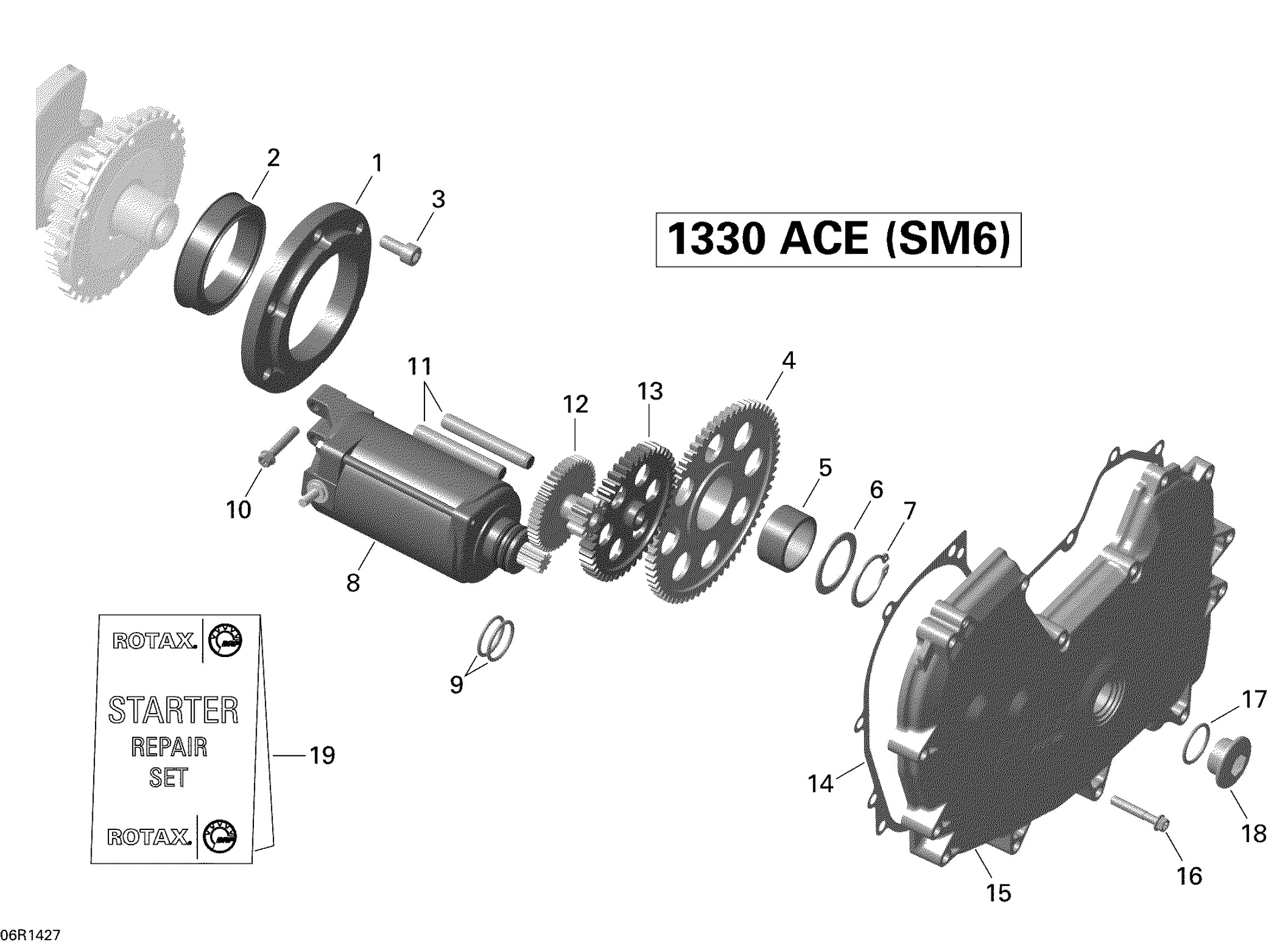

Can-Am Spyder RT SM6, 2014 03- Electric Starter Diagram

SPRAG CLUTCH HOUSING - Call your local BRP dealership

SPRAG CLUTCH - Call your local BRP dealership

Socket Head Screw M8 X1 8

GEAR 66 TEETH ASS'Y - Call your local BRP dealership | Includes 4 to 5

Not Available As Spare Part - Friction Washer

Thrust Washer

Circlip

Starter Ass'y | Includes 8 to 9

O-Ring

Torx Flange Screw M6 X 30

Pin Cylindrical

Double Gear

Gear 44 Teeth

Gasket

Cover

Torx Flange Screw M6 X 35

O-Ring

Plug Screw M24 X 1.5

Carbon Brush Set
