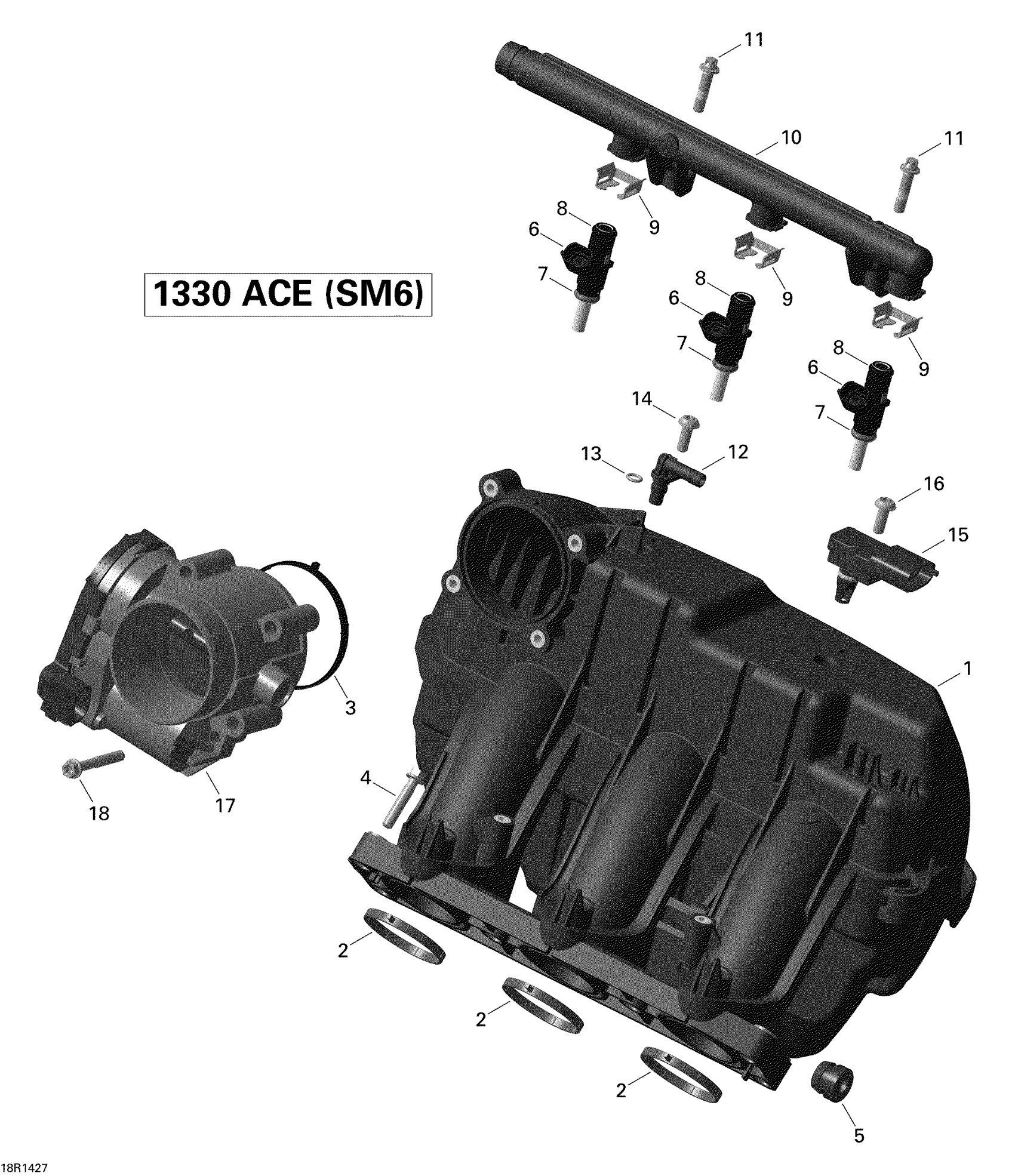

Can-Am Spyder RT SM6, 2014 02- Air Intake Manifold And Throttle Body Diagram

Description

Price

Airbox Ass'y | Includes 1 to 3

420667687

$279.99

Gasket

420431665

$12.16

Gasket

420431901

$34.99

Torx Flange Screw M6 X 30

420440647

$2.00

Isolator

420201170

$15.87

Injection Valve | Includes 6 to 8

420274217

$119.99

O-Ring

420431890

$7.49

O-Ring

420631220

$14.28

Injector Clip

420853030

$3.09

Fuel Rail

420274230

$33.99

Torx Flange Screw M6 X 25

420440234

$3.06

Fitting

420201190

Unavailable

O-Ring

420230530

$3.17

Torx Flange Screw M6 X 16

420641588

$2.11

Pressure And Temperature Sensor

707000995

$88.99

Torx Flange Screw M6 X 16

420641588

$2.11

Throttle Body Socket Ass'y

420892596

$466.49

Torx Flange Screw M6 X 45

420440324

$0.98
