Description

Price

1

Oil Pump Gear 30 Teeth

420435170

$20.99

2

Needle Pin

420232431

$4.39

3

Intermediate Gear 28\18 Teeth Ass'y | Includes 3 to 4

420435165

$86.99

4

Needle Bushing

420232031

$15.74

5

Pin Cylindrical

420229472

$14.24

6

Torx Flange Screw M6 X 20

420440207

$3.06

7

Oil Pump Cover

420210220

$33.99

8

Needle Pin

420929075

$2.11

9

Oil Pump Rotor 16 mm

420956675

$36.99

10

Shaft And Oil Pump Rotor

420637077

$116.49

11

Pressure Regulator Valve Ass'y | Includes 11 to 12.

420456141

$67.99

12

O-Ring

420230405

$4.55

13

Torx Flange Screw M6 X 20

420440207

$3.06

14

Oil Pump Cover

420210260

$33.99

15

Needle Pin

420929075

$2.11

16

Oil Pump Rotor

420256831

$75.99

17

Needle Pin

420232731

$4.01

18

Oil Pump Cover

420210770

$33.99

19

O-Ring

420631830

$2.11

20

Oil Pump Shaft

420637070

$36.99

21

Oil Pump Rotor

420956278

$72.99

22

Oil Sieve

420656885

$13.62

23

Screw M14 X 1.5

420441681

$39.99

24

O-Ring

420250460

$2.32

25

O-Ring

420430115

$2.32

26

Gasket Ring

420430624

$1.89

27

Gasket

420431711

$5.77

28

Oil Radiator

420888857

$148.49

29

Torx Flange Screw M6 X 16

420440162

$3.17

30

Baffle

420201450

$17.03

31

O-Ring

420430372

$6.77

32

Vent Hose

420210710

$18.49

33

Torx Flange Screw M6 X 20

420440207

$3.06

34

O-Ring

420430783

$1.90

35

Vent Hose

420224810

$18.49

36

Torx Flange Screw M6 X 16

420641588

$2.11

37

Oil Tank Cover Ass'y | Includes 37 to 44

420893282

$423.49

38

Oil Filter

420956744

$20.99

39

Oil Filter Cover Ass'y | Includes 39 to 42

420210885

$33.49

40

O-Ring

420850482

$9.32

41

O-Ring

420950812

$5.93

42

O-Ring

420650927

$5.93

43

O-Ring

420430783

$1.90

44

Gasket

420431990

$17.04

45a

Oil Filler Tube Ass'y | Includes 45a to 49.

420456510

$29.99

45b

Not Available As Spare Part - Friction Washer

Unavailable

46

Not Available As Spare Part - Friction Washer

Unavailable

47

O-Ring

420631876

$11.60

48

O-Ring

420430140

$6.92

49

Spring Clip

420939343

$7.19

50

Torx Flange Screw M6 X 16

420641588

$2.11

51

Oil Gauge Ass'y | Includes 51 to 52

420656984

$29.99

52

Gasket Ring

420431790

$8.57

53

Silent Block

420201180

$8.47

54

Oil Pressure Switch

420256917

$49.99

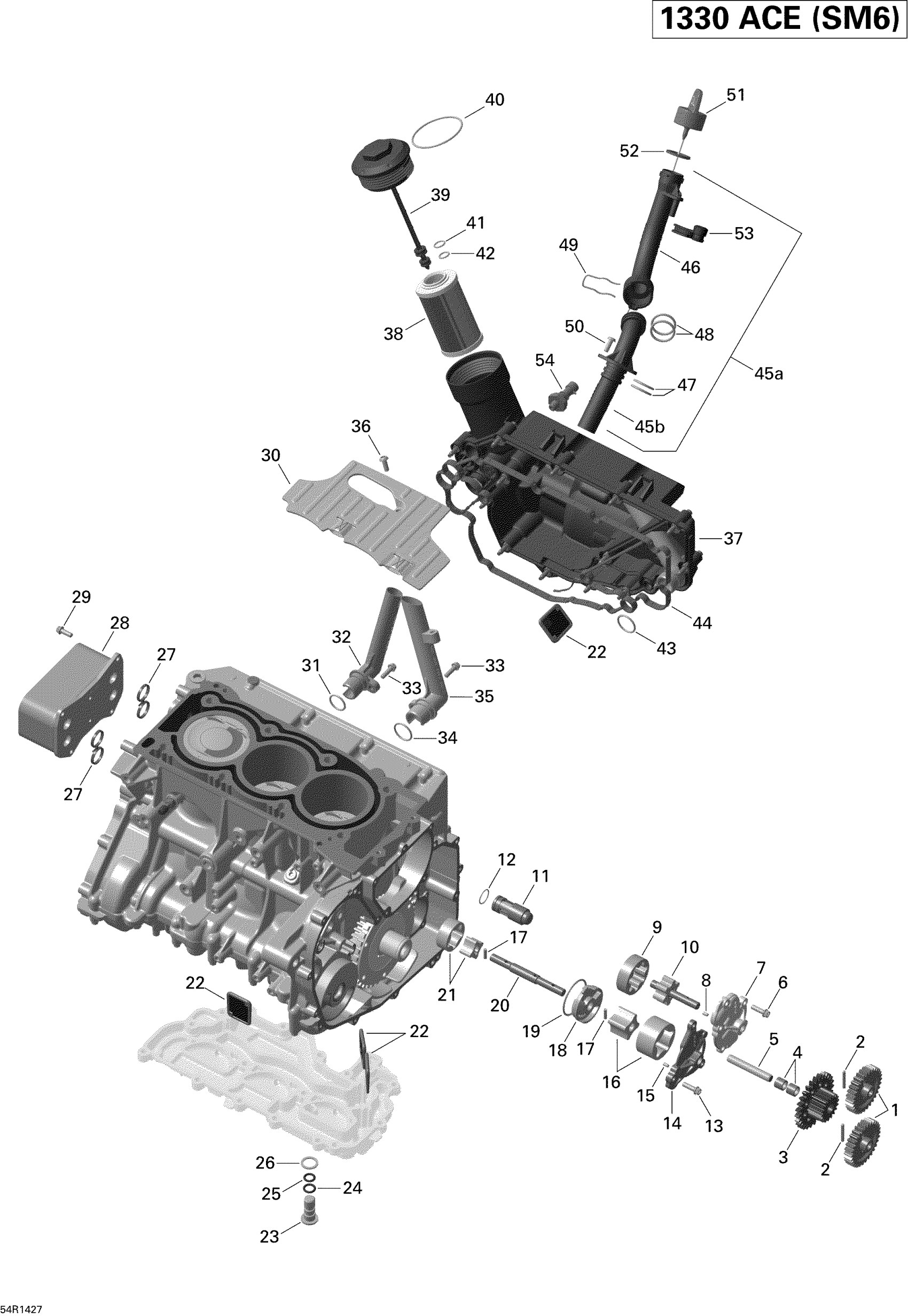

Can-Am Spyder RT SM6, 2014 01- Engine Lubrication Diagram

Oil Pump Gear 30 Teeth

Needle Pin

Intermediate Gear 28\18 Teeth Ass'y | Includes 3 to 4

Needle Bushing

Pin Cylindrical

Torx Flange Screw M6 X 20

Oil Pump Cover

Needle Pin

Oil Pump Rotor 16 mm

Shaft And Oil Pump Rotor

Pressure Regulator Valve Ass'y | Includes 11 to 12.

O-Ring

Torx Flange Screw M6 X 20

Oil Pump Cover

Needle Pin

Oil Pump Rotor

Needle Pin

Oil Pump Cover

O-Ring

Oil Pump Shaft

Oil Pump Rotor

Oil Sieve

Screw M14 X 1.5

O-Ring

O-Ring

Gasket Ring

Gasket

Oil Radiator

Torx Flange Screw M6 X 16

Baffle

O-Ring

Vent Hose

Torx Flange Screw M6 X 20

O-Ring

Vent Hose

Torx Flange Screw M6 X 16

Oil Tank Cover Ass'y | Includes 37 to 44

Oil Filter

Oil Filter Cover Ass'y | Includes 39 to 42

O-Ring

O-Ring

O-Ring

O-Ring

Gasket

Oil Filler Tube Ass'y | Includes 45a to 49.

Not Available As Spare Part - Friction Washer

Not Available As Spare Part - Friction Washer

O-Ring

O-Ring

Spring Clip

Torx Flange Screw M6 X 16

Oil Gauge Ass'y | Includes 51 to 52

Gasket Ring

Silent Block

Oil Pressure Switch
