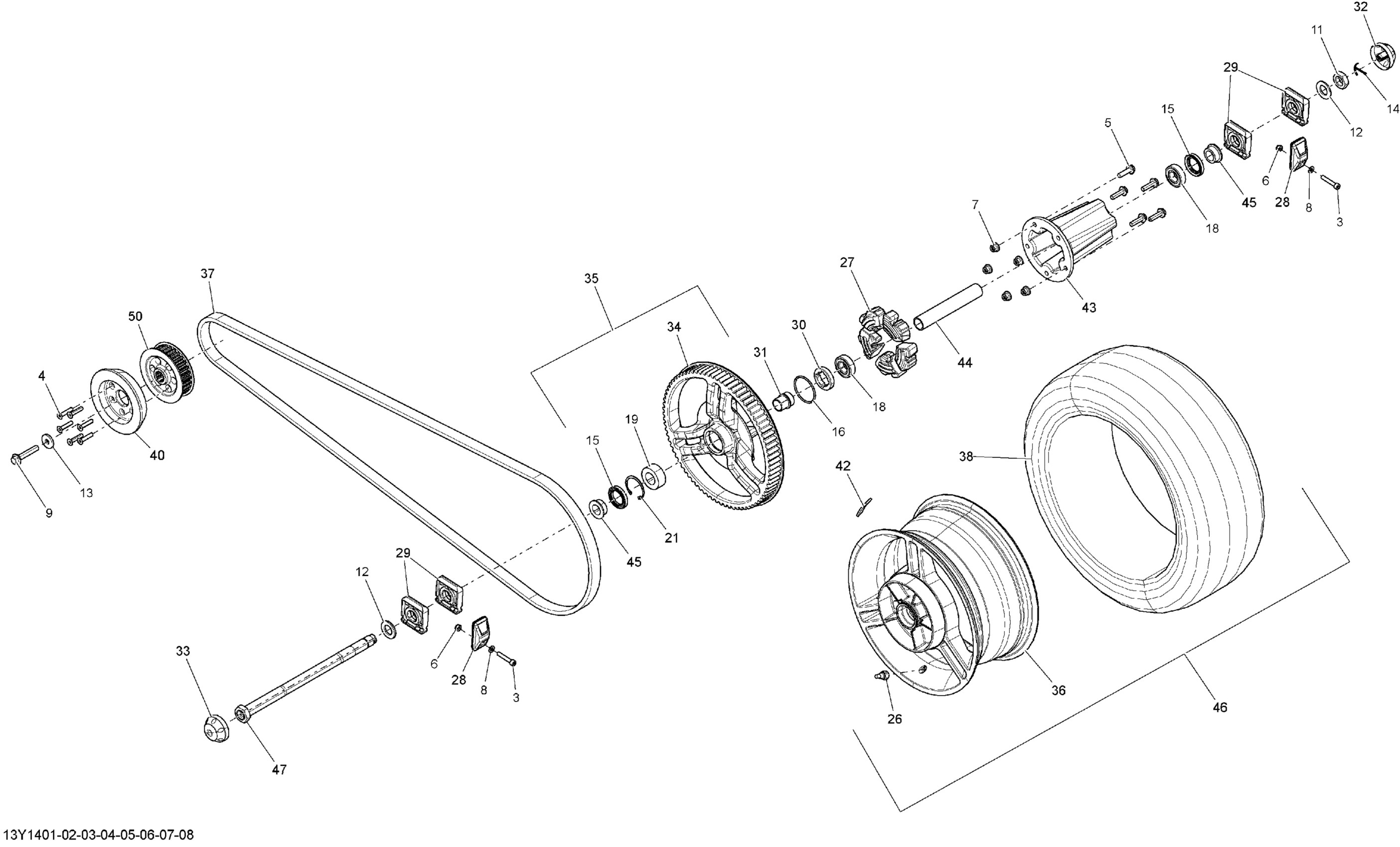

Can-Am Spyder RSS SE5, 2014 08- Drive System, Rear _13Y1408 Diagram

SOCKET HEAD SCREW M8 X 45 - Call your local BRP dealership

250000514

Unavailable

Socket Screw M8 X 40, Scotch Grip | Model-RS

205884046

$1.89

FLANGED HEX. SCREW M10 X 35, SCOTCH GRIP - Call your local BRP dealership

207503587

Unavailable

Hex. Elastic Nut M8

250100141

$2.00

Hex. Flange Elastic Nut M10

233201436

$2.11

Flat Washer 8 mm

234081410

$0.83

Hex Flange Screw DIN.6921 S.Grip

250001017

$13.22

Hex. Jam Nut M24

250100103

$12.12

Flat Washer

250200094

$4.44

Washer

250200052

$11.06

Cotter Pin

250400047

$2.32

Seal

293200094

$10.33

O-Ring

293300124

$3.38

Ball Bearing

293350115

$12.11

Double Row Bearing

293350065

$33.99

Circlip

293370053

$9.95

Rim Valve With Cap

705400193

$8.69

Damper

705500736

$24.49

Adjustment Support

705502450

$15.89

Sliding Block

705502448

$14.82

NUT - Call your local BRP dealership

705500852

Unavailable

Spacer

705500853

$23.49

RH Cap

705501022

$9.19

LH Cap

705501081

$9.27

Not Available As Spare Part - Friction Washer

Unavailable

Carbon Black, Sprocket Wheel 79 Teeth Ass'y | Included 200 to 200d

705503311

$499.99

Carbon Black Rear Rim | Model-RS S BREZIL

705502130

$391.99

Drive Belt | Model-RS

705501576

$409.99

Rear Tire 225/50R15

705503310

$201.49

FLYWHEEL - Call your local BRP dealership | Model-RS

705501250

Unavailable

Self Adhesive Weight, 5G 20mm

705502106

$4.69

CARBON BLACK REAR WHEEL HUB - Call your local BRP dealership | Model-RS S

705501598

Unavailable

Spacer Tube

705502093

$17.59

Spacer

705501602

$19.49

Not Available As Spare Part - Friction Washer

Unavailable

Rear Wheel Axle

705501691

$99.49

Wheel_Sprocket 28 Teeth B-356 | Model-RS

705503315

$154.99
