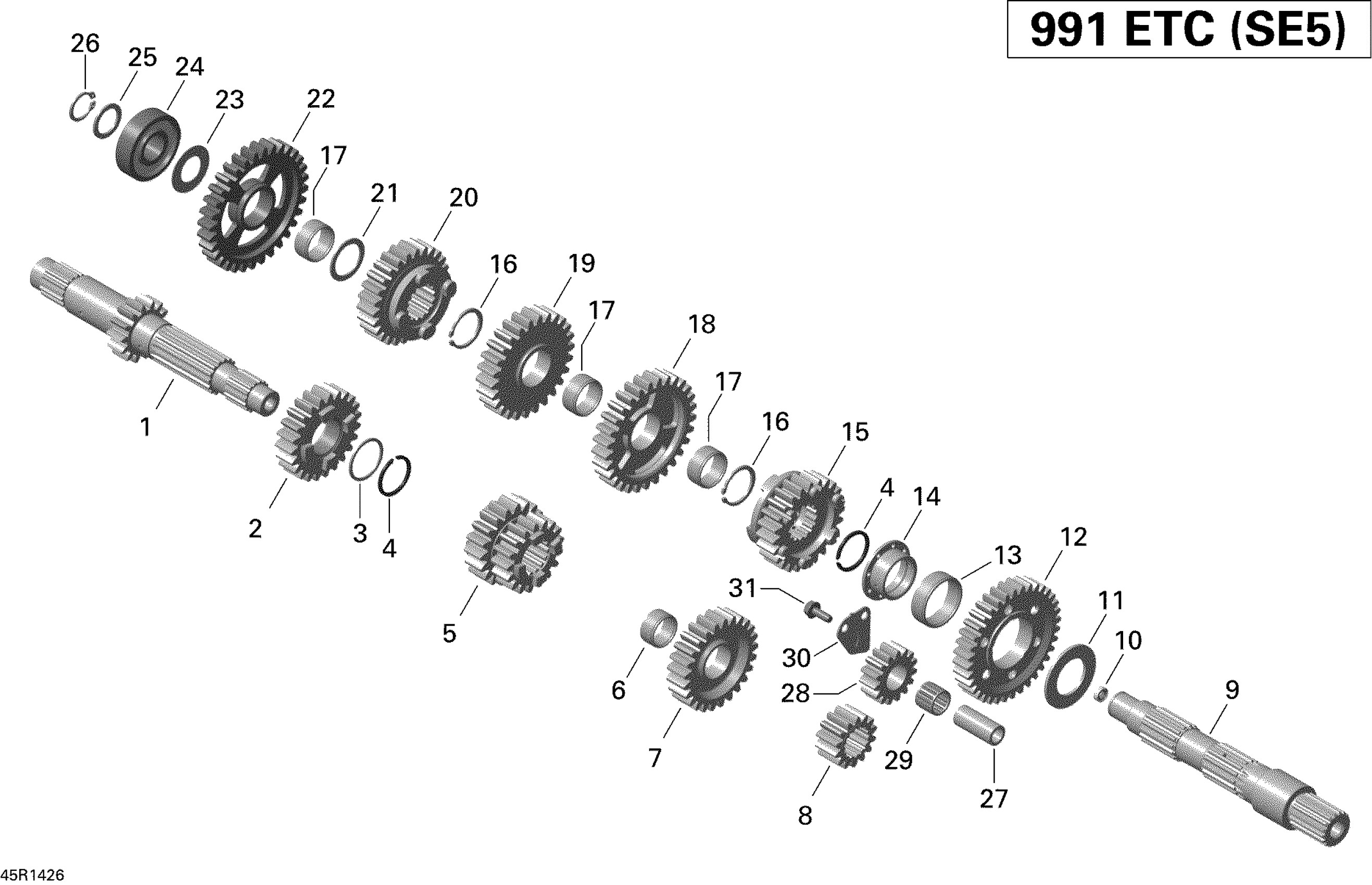

Can-Am Spyder RSS SE5, 2014 05- Gear Box Diagram

#

Description
Price

1

GEAR SET 1RST SPEED - Call your local BRP dealership

420481035

Unavailable

2

Gear Set

420481045

$164.99

3

Thrust Washer

420627122

$3.17

4

Snap Ring - SE5

420245817

$7.19

5

Gear Set

420481040

$184.99

6

Needle Bearing

420232530

$28.49

7

GEAR SET - Call your local BRP dealership

420481050

Unavailable

8

Gear Set

420481055

$124.99

9

Main Shaft | Includes 9 to 10

420620618

$179.99

10

Oil Seal

420930500

$18.54

11

Thrust Ring

420626381

$16.95

12

Gear Set

420481055

$124.99

13

Needle Bearing

420632197

$29.99

14

Bushing

420632530

$65.49

15

GEAR SET - Call your local BRP dealership

420481050

Unavailable

16

Retaining Ring

420845772

$6.38

17

Needle Bearing

420632070

$25.99

18

Gear Set

420481040

$184.99

19

Gear Set

420481040

$184.99

20

Gear Set

420481045

$164.99

21

Washer

420427106

$8.26

22

GEAR SET 1RST SPEED - Call your local BRP dealership

420481035

Unavailable

23

SHIM - Call your local BRP dealership

420827110

Unavailable

24

BALL BEARING - Call your local BRP dealership

420832144

Unavailable

25

Thrust Washer

420227442

$10.16

26

Retaining Ring

420945665

$5.08

27

BOLT - Call your local BRP dealership

420229450

Unavailable

28

Gear Set

420481055

$124.99

29

Needle Cage

420432034

$35.99

30

LOCKING TIE - Call your local BRP dealership

420224740

Unavailable

31

TAPTITE SCREW M6 X 16 - Call your local BRP dealership

420240580

Unavailable
