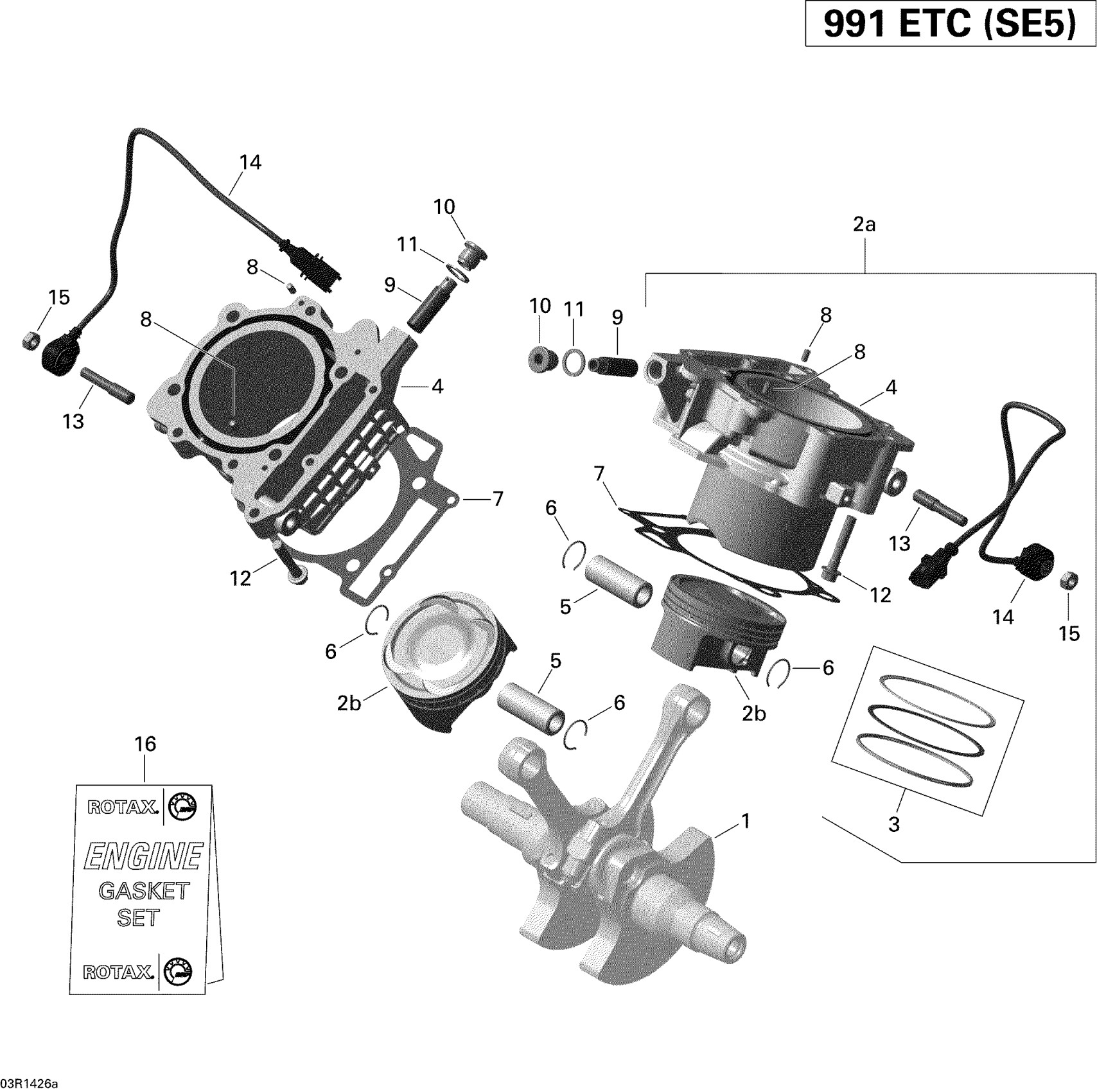

Can-Am Spyder RSS SE5, 2014 01- Cylinder And Piston Diagram

#

Description
Price

1

CRANKSHAFT - Call your local BRP dealership

420890567

$1,259.99

2a

Cylinder & Pistons Ass'y | Includes 2a to 4

420623912

$628.49

2b

Piston Ass'y, 96.945 mm | Includes 2b to 3

420685491

$217.99

2b

Piston Ass'y, 96.955 mm | Includes 2b to 3

420685492

$217.99

3

Piston Ring Set

420295858

$90.49

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Piston Pin

420216222

$31.99

6

Piston Circlip

420245436

$4.89

7

Cylinder Gasket

420650390

$16.86

8

Drive Pin 5 X 10

420929650

$1.68

9

Chain Tensioner

415129408

$63.49

10

Plug Screw

420640457

$14.83

11

O-Ring

420430622

$4.44

12

HEX. FLANGED SCREW M8 X 45 - Call your local BRP dealership

420940637

Unavailable

13

STUD M8/M10 - Call your local BRP dealership

420441444

Unavailable

14

Noise Sensor

420664031

$63.99

15

Hex. Nut M8

232081414

$0.72

16

Gasket Set, Engine

420685482

$280.99
