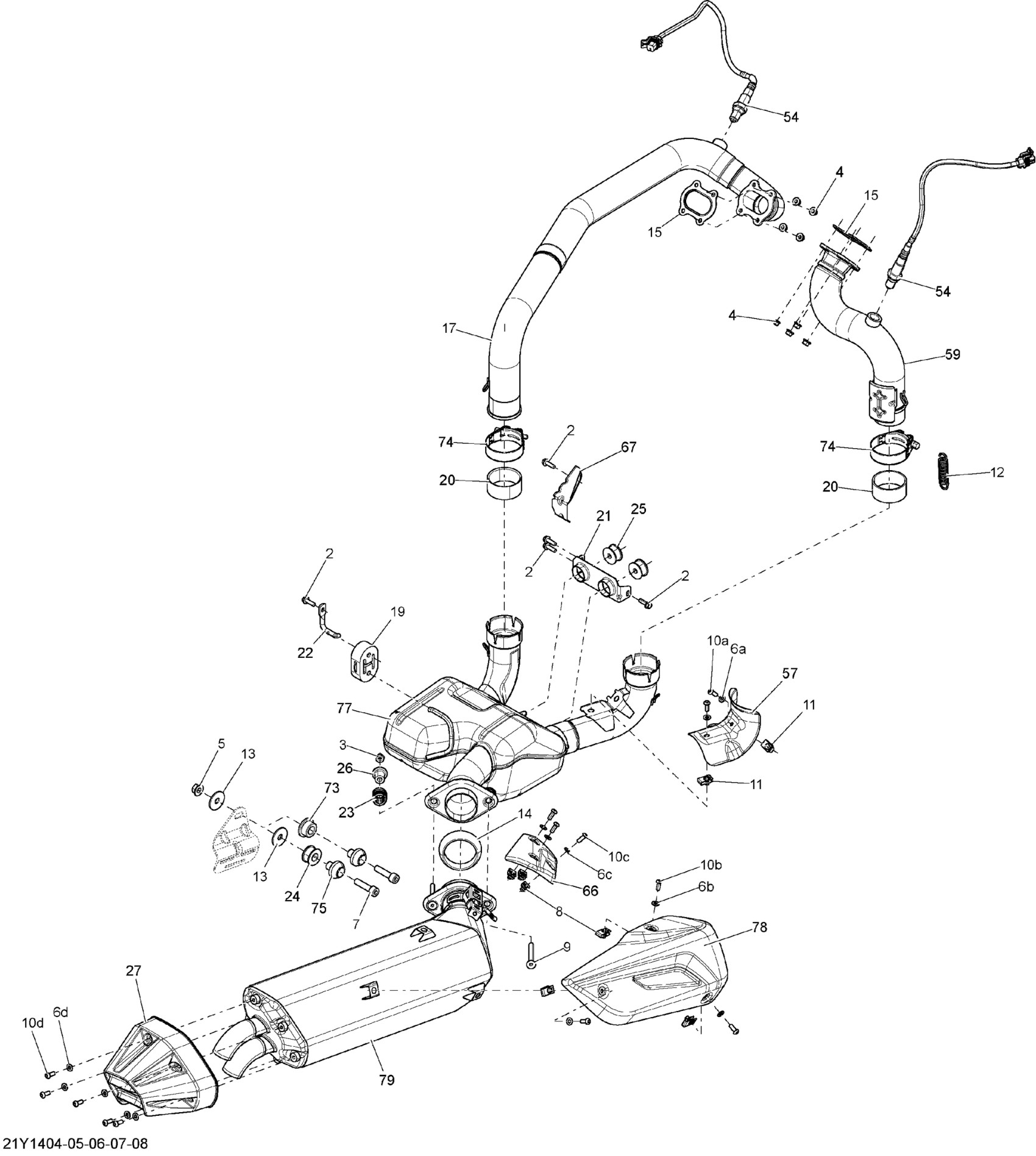

Can-Am Spyder RS SM5, 2014 01- Exhaust System _21Y1407 Diagram

#

Description
Price

2

Hexagonal Head Screw

210262050

$2.11

3

Hex. Elastic Nut M8

232581600

$1.48

4

Hex. Flange Nut M6

233061414

$1.68

5

Hex. Flange Nut M10

233101600

$5.29

6a

Stainless Flat Washer M6

234061600

$0.33

6b

Stainless Flat Washer M6

234061600

$0.33

6c

Stainless Flat Washer M6

234061600

$0.33

6d

Stainless Flat Washer M6

234061600

$0.33

7

Hex. Screw M10 X 40, Scotch Grip

244004060

$4.86

8

Panel Nut M6 X 1.0

250100198

$2.11

9

SOCKET SCREW, M8 X 75 S. GRIP - Call your local BRP dealership

250000404

Unavailable

10a

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

10b

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

10c

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

10d

Stainless, Socket Screw, M6X16 S.Grip

250000437

$1.90

11

Panel Nut M6 X 1.0

250100198

$2.11

12

Spring

415107100

$6.35

13

Washer 10 mm

506150000

$2.74

14

Exhaust Gasket

514053677

$24.99

15

Seal

707600296

$19.49

17

PIPE_EXHAUST IN WELD - Call your local BRP dealership

707600634

Unavailable

19

Rubber Bumper

707600638

$15.81

20

Pipe Slip Joint

707600650

$21.99

21

Front Bracket | Includes 360 to 360b1a

707600661

$13.22

22

RETAINING ROD - Call your local BRP dealership

707600666

Unavailable

23

Spring

707600682

$6.35

24

Not Available As Spare Parts

XXX

Unavailable

25

Anti-Vibration Rubber

707600702

$8.57

26

Bushing

707600750

$18.54

27

Crystal Silver Muffler End Cap

707600867

$82.49

54

Oxygen Sensor

707600872

$144.99

57

Heat Shield

707601042

$18.49

59

REAR EXHAUST TUNED PIPE - Call your local BRP dealership

707601367

Unavailable

66

Crystal Silver Heat Shield

707601132

$24.99

67

DEFLECTOR - Call your local BRP dealership

707601251

Unavailable

73

BUSHING - Call your local BRP dealership

707601236

Unavailable

74

COLLAR - Call your local BRP dealership

707601249

$19.49

75

BUSHING - Call your local BRP dealership

707601276

$16.49

77

Muffler Ass'y

707601357

$1,123.49

78

Crystal Silver Heat Shield

707601382

$76.49

79

Muffler Ass'y

707601704

$953.99
