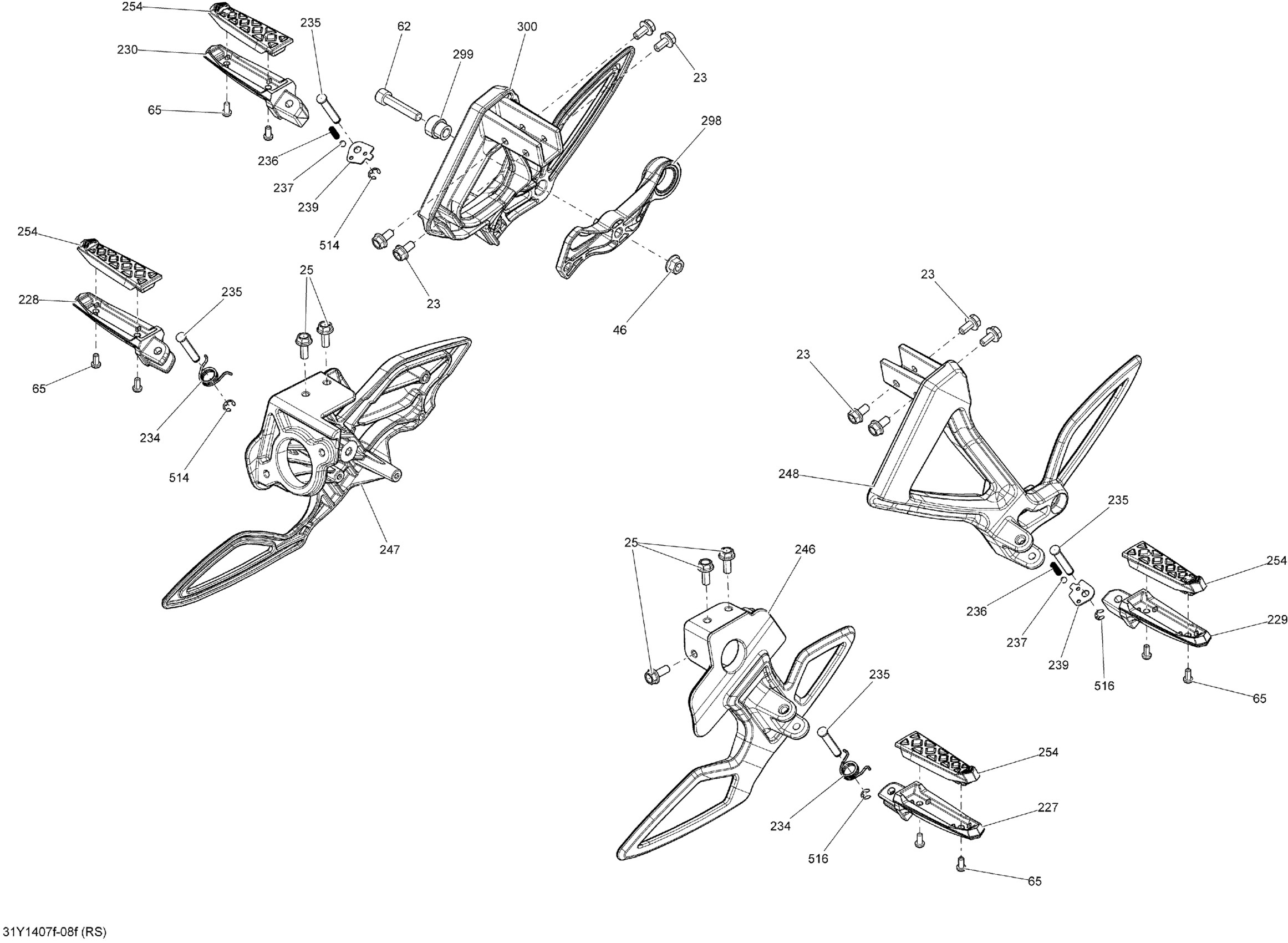

Can-Am Spyder RS SE5, 2014 09- Body And Accessories Footrest_31Y1407f Diagram

#

Description
Price

23

Hex. Flange Screw M8 X 16, Scotch Grip

207581644

$1.15

25

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

46

Hex. Flange Nut M10

233101600

$5.29

62

Allen Screw S.GRIP M10 X 50 | RS

244005060

$7.27

65

Allen Plastite Screw #12

250000099

$2.19

227

LH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004180

Unavailable

228

RH FRONT FOOTREST - Call your local BRP dealership | RS STD

705004183

Unavailable

229

LH REAR FOOTREST - Call your local BRP dealership | RS STD

705004186

Unavailable

230

RH REAR FOOTREST - Call your local BRP dealership | RS STD

705004189

Unavailable

234

Spring | RS STD

705001701

$14.99

235

Retainer Pin | RS STD

705001702

$18.49

236

Spring | RS STD

705001704

$12.99

237

Ball

705001705

$6.39

239

Indexation Plate | RS STD

705001706

$11.99

246

LH FRONT FOOT SUPPORT - Call your local BRP dealership | RS STD

705004179

Unavailable

247

RH Foot Support | RS STD

705004182

$154.99

248

LH Rear Foot Support | RS STD

705004185

$149.99

254

Rubber Pad | RS STD

705002359

$24.99

298

SUPPORT_EXHAUST B-316 - Call your local BRP dealership | RS STD

705006852

Unavailable

299

BUSHING - Call your local BRP dealership | RS

705003765

Unavailable

300

RH REAR FOOTREST SUPPORT - Call your local BRP dealership | RS STD

705006603

Unavailable

514

Circlip | RS STD

705601030

$4.39

516

Circlip | RS STD

705601030

$4.39
