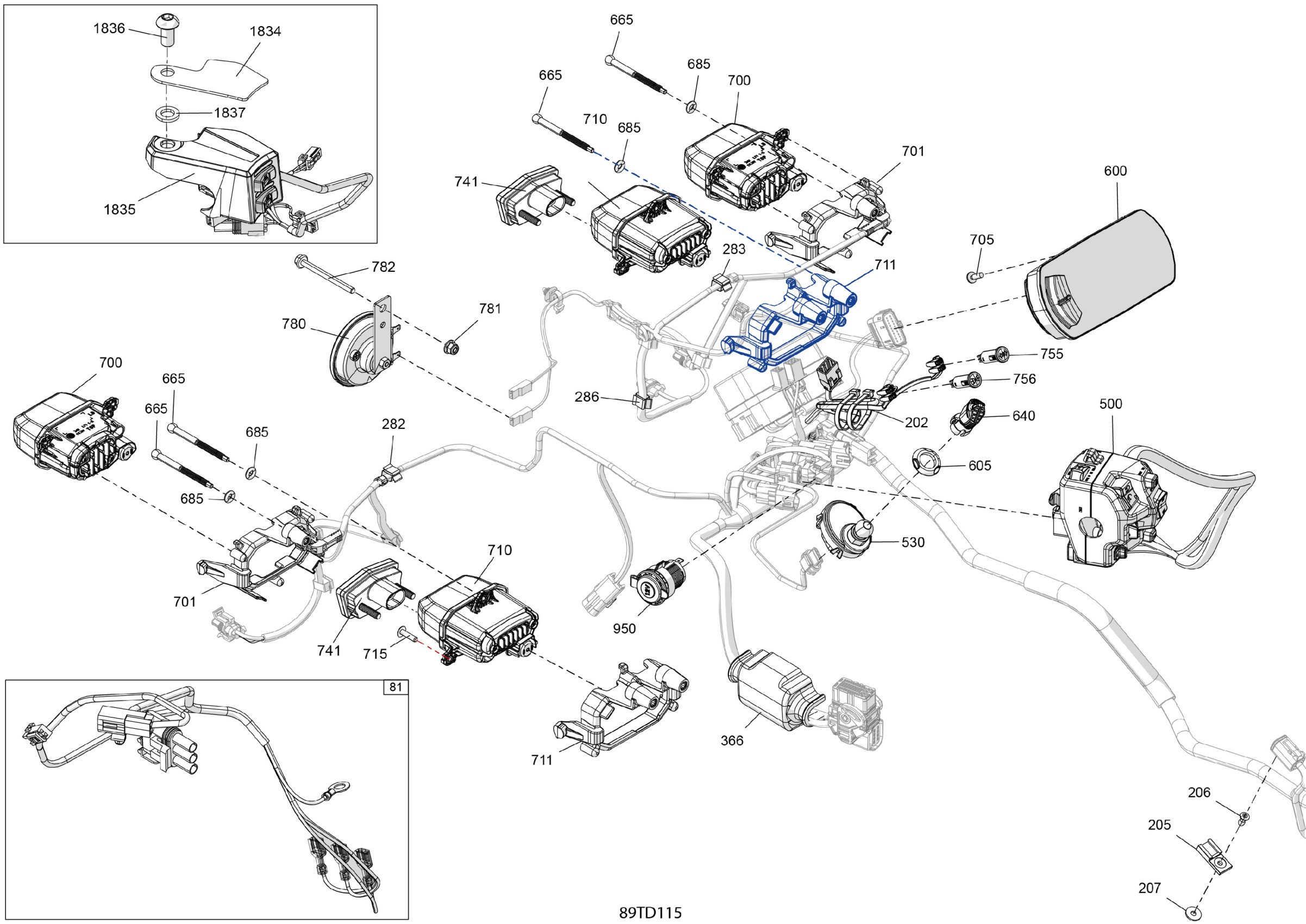

Can-Am T Regulation - Outlander MAX 1000 EFI 4X4 - 3URA - XU+ Package - Platinum Silver Satin, 2024 08- Electric - Front Section Diagram

Description

Price

Winch Wiring Harness

710008412

$44.99

202

Tell Tale Wiring Harness

710007825

$24.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

282

Clip

710010204

$1.67

283

Clip

710010204

$1.67

286

Clip

710010204

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

LH Front Switch Housing

710006672

$248.99

530

Terminal DESS One Wire

515179305

$74.99

540

Flange Elastic Nut M5

233251434

$2.00

600

Multifunction Compact Gauge

710008298

$389.99

605

Specialized Nut

278004274

$3.28

640

Grey, Can-Am DESS Key

515179384

$63.49

665

Ajustment Screw

710005837

$6.35

685

O-Ring

293300192

$4.92

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

705

Torx Screw K50 X 16

250000720

$1.69

710

HIgh Beam Light

710006910

$129.99

711

Interior Headlight Support

710008394

$9.09

715

Torx-Truss Pt K40 X 16

250000759

$2.11

741

Amber Light Turn Signal

710007217

$17.99

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 70

207667044

$0.85

950

DC Outlet

710001248

$37.99

1834

Top Plate

715004008

$21.99

1835

Multifonction Housing Ass'y

710004990

$154.99

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

1837

Washer

503192496

$0.77

1838

Housing Switch Support

710009590

$36.99
