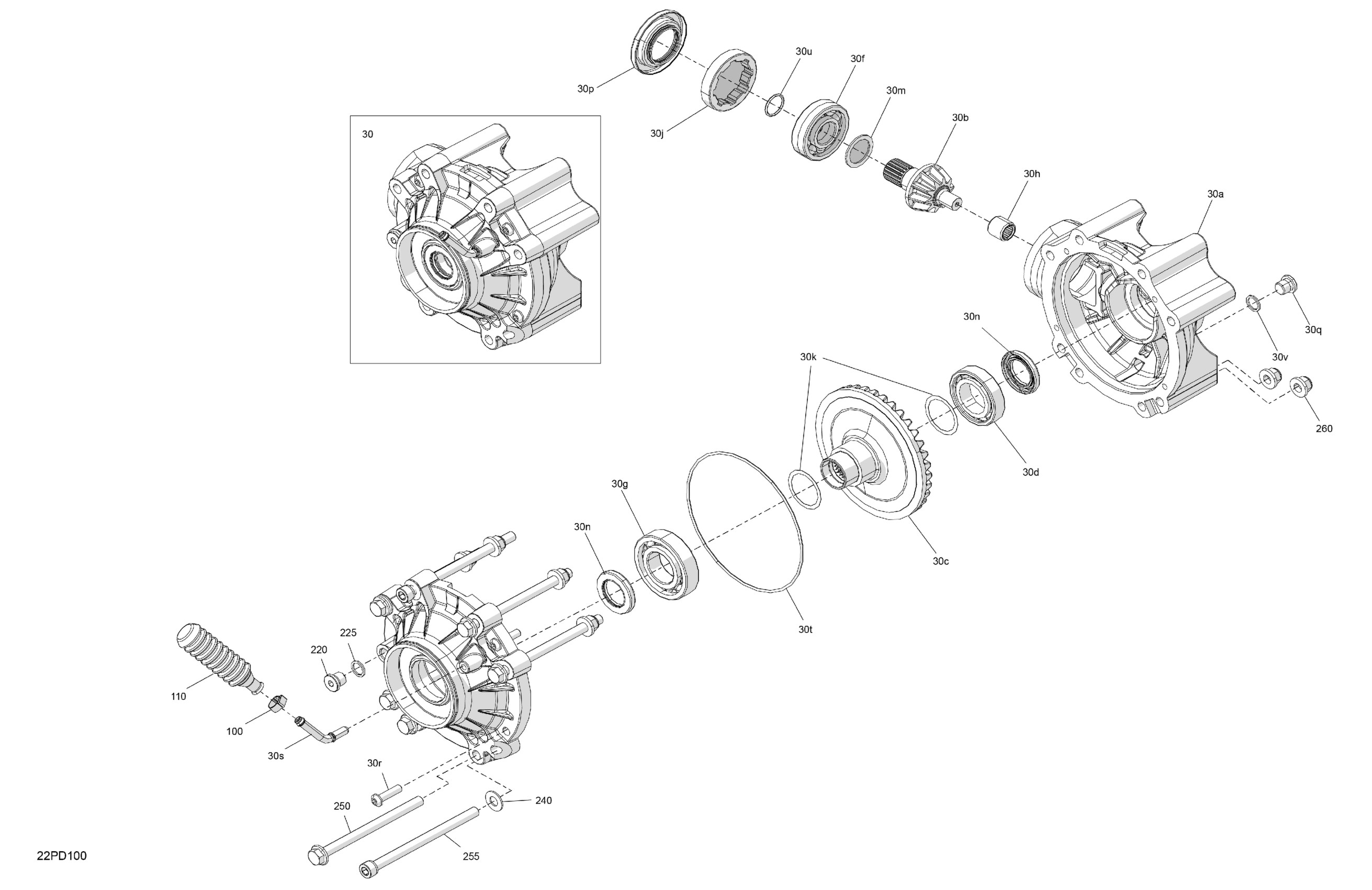

Can-Am T Regulation - Outlander MAX 450 EFI 6X6 - 5ERA - XU+ Package - Tundra Green, 2024 04- Drive - Final Drive Unit Diagram

Description

Price

Rear Drive Unit Ass'y | Includes 1000 to 1000u

705502370

$969.99

30a

Rear Cover

705502389

$179.99

30b

Pinion 10 Teeth

705502823

$219.99

30c

Gear 36 Teeth

705502822

$409.99

30d

Ball Bearing

705502736

$31.99

30f

Ball Bearing

705502737

$48.49

30g

Ball Bearing

705502738

$59.49

30h

Needle Bearing

705502058

$49.99

30j

Nut | 4X4

705401603

$35.99

30k

Differential Shim 0.02 mm

705502060

$13.76

30m

Pinion Gear Shim 1.67 mm

705502061

$18.99

30n

Oil Seal

705501996

$21.99

30p

Oil Seal

705402405

$27.49

30q

Fill Level Plug | 4X4

705500504

$10.01

30r

SOCKET HEAD SCREW M8 X 30 - Call your local BRP dealership

205483046

Unavailable

30s

Breather Tube

705501584

$14.99

30t

Seal

705502064

$8.47

30u

O-Ring

705502065

$5.95

30v

Copper Washer | 4X4

705500506

$0.45

100

Oetiker Clamp

293650042

$3.09

110

Rubber Bellow | 4X4

705400552

$6.14

220

Fill Level Plug | 4X4

705500504

$10.01

225

Copper Washer | 4X4

705500506

$0.45

240

Washer

506152582

$4.55

250

Hex. Flange Screw M10 X 135

250001041

$5.59

255

Screw Socket HD M10 X 140

250001094

Unavailable

260

Hex. Flange Elastic Nut M10

233201436

$2.11
