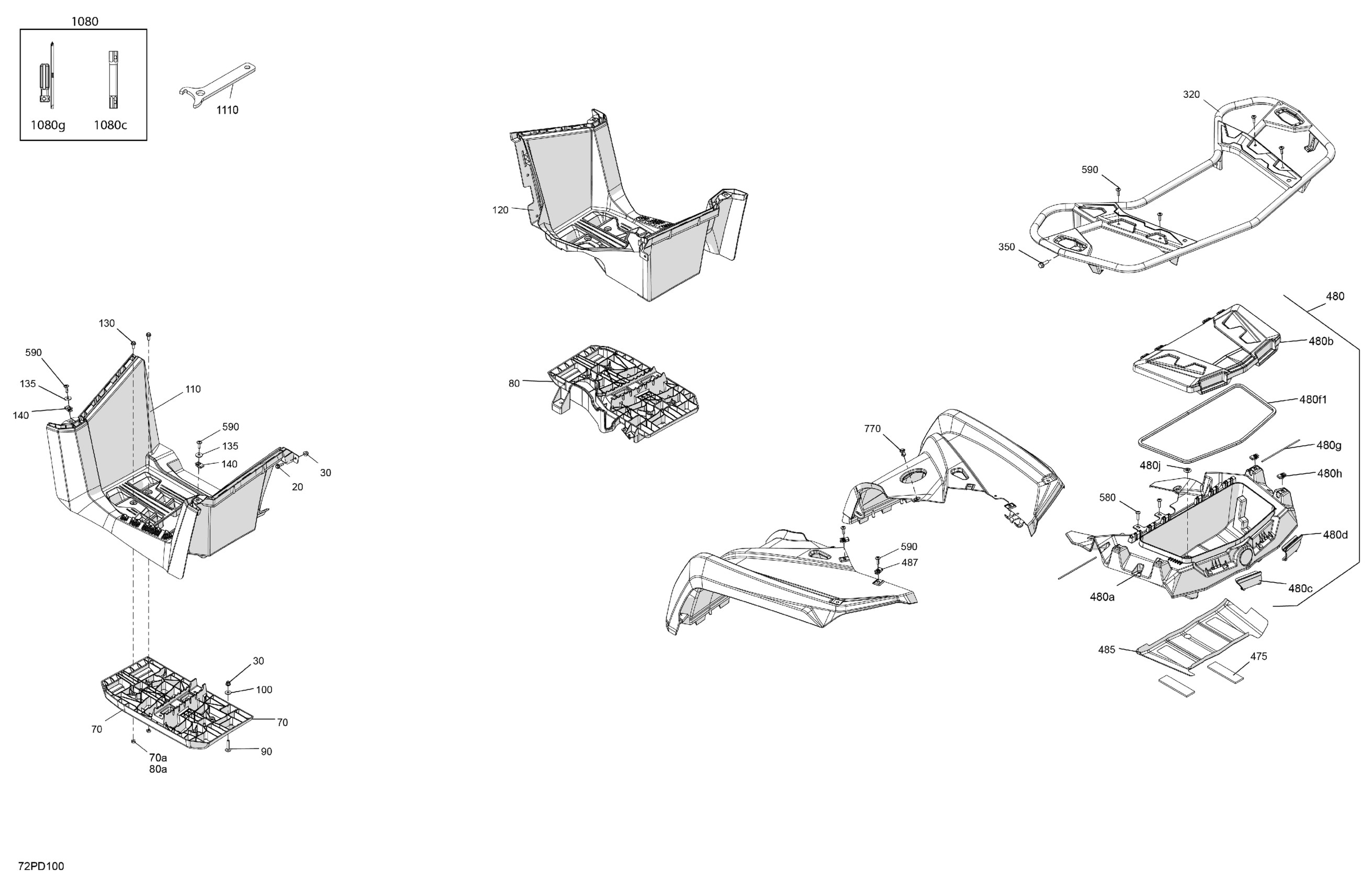

Can-Am T Regulation - Outlander 450 EFI 6X6 - 4XRA - XU+ Package - Tundra Green, 2024 07- Body - Rear Section Diagram

Hex. Flange Screw M6 X 20

207662054

$1.01

Flange Elastic Nut M6

233261434

$4.44

LH Structural Footboard

705011540

$119.99

Square Nut M6

232862412

$1.49

RH Structural Footboard

705011542

$109.99

Square Nut M6

232862412

$1.49

Carriage Bolt M6 X 35

207763554

$2.11

Flat Washer 6 mm

234062410

$0.77

LH Step

705007040

$97.99

RH Footrest

705007723

$104.99

Hex. Flange Screw M6 X 20

207662054

$1.01

Flat Washer

224061201

$1.37

Panel Nut M6 X 1.0

250100198

$2.11

Deep Black, Rear Luggage Rack

705017600

$275.49

Hex Flange Screw M8 X 25 S.Grip

250001016

$1.46

Rubber Pad

293830163

$10.49

Storage Cover | Model-Europe International

715004412

$219.99

Storage Cover | Model-Europe International

715004412

$219.99

Storage Cover | Model-Europe International

715004412

$219.99

LH Box Rear Latch

705007448

$11.99

RH Box Rear Latch

705007921

$13.49

Was 715900411 Neoprene Seal | Outlander MAX

219704452

$38.99

Retaining Rod

705007531

$78.99

Panel Nut M6 X 1.0

250100198

$2.11

CAP - Call your local BRP dealership

414859400

Unavailable

Heat Deflector Sheet

705007487

$5.09

Panel Nut M6 X 1.0

250100198

$2.11

Torx Truss Screw M6 X 25

250000807

$2.11

Torx Screw M6 X 20

250000722

$1.68

Tuflok Plastic Rivet

293150230

$1.47

Tool Kit

704700168

$40.99

Socket Wrench 14/16MM

529000085

$6.55

Screw Driver

529000021

$3.29

Adjustment Wrench

529000035

$2.09
