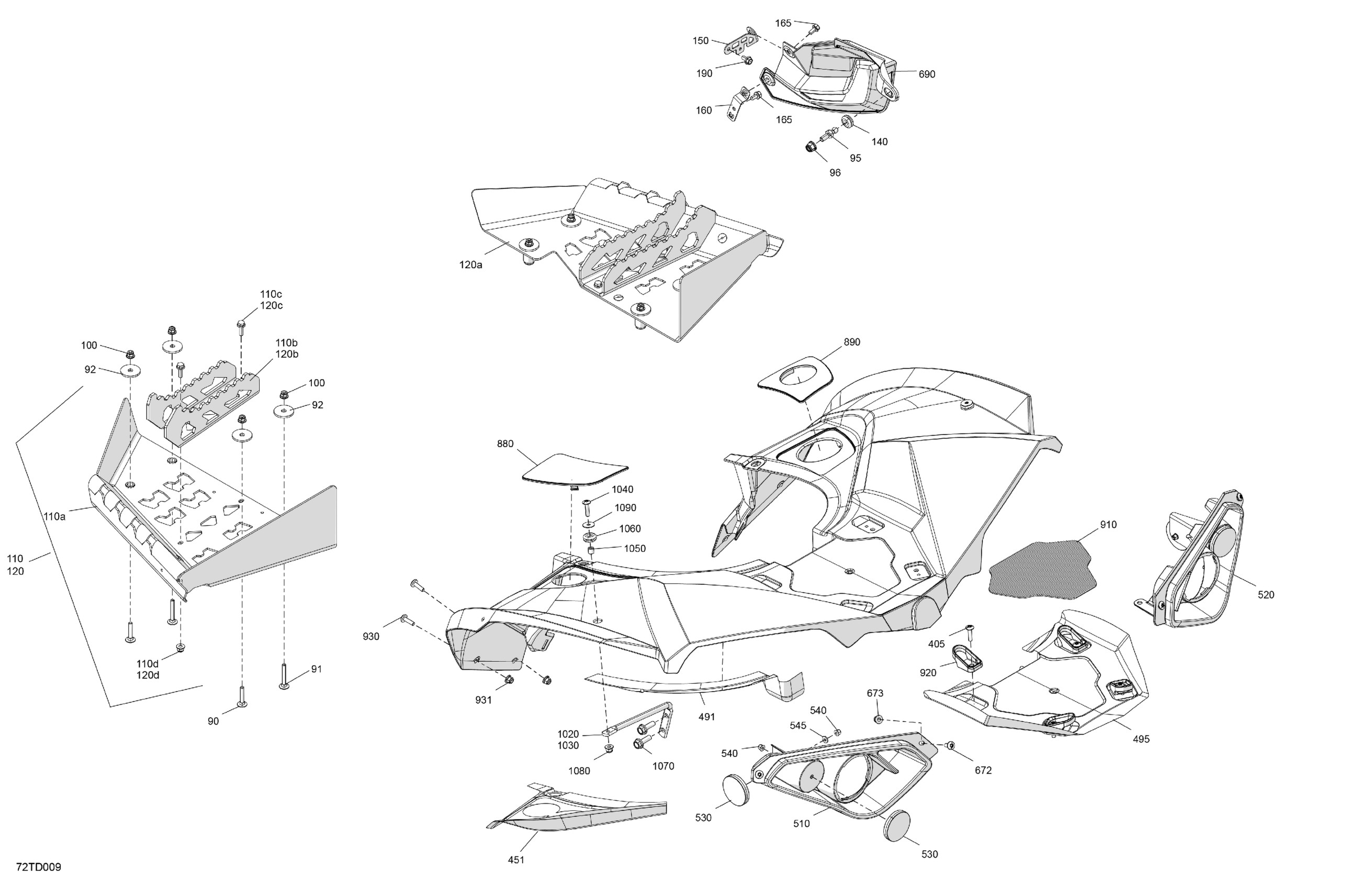

Can-Am International - Renegade 1000R EFI 4X4 - 4FRC - X MR Package - Hyper Silver, 2024 07- Body - Rear Section Diagram

Description

Price

Carriage Bolt M6 X 35

207763554

$2.11

Carriage Bolt M6 X 45

207764550

$6.09

Flat Washer M8

250200158

$2.11

Ball Head Stud

250300039

$7.51

Hex. Flange Elastic Nut M8

233281414

$1.47

100

Hex. Flange Elastic Nut M6

233261494

$1.58

110

LH Footrest Ass'y | Includes 110 to 110d

705018510

$329.99

110a

Deep Black, LH Footrest -SB

705017260

$329.99

110b

LH Foot Rest

705010493

$119.99

110c

Hex. Flange Screw M6 X 20

207662054

$1.01

110d

Flange Elastic Nut M6

233261434

$4.44

120

RH Footrest Ass'y | Includes 120 to 120d

705018511

$329.99

120a

Deep Black, RH Footrest -SB

705017261

$329.99

120b

RH Foot Rest

705010499

$119.99

120c

Hex. Flange Screw M6 X 20

207662054

$1.01

120d

Flange Elastic Nut M6

233261434

$4.44

140

Overmolded Grommet

293720130

$4.69

150

Engine Cover Support

705011461

$10.49

160

Engine Cover Support

705003646

$9.23

165

Hex. Flange Screw M6 X 12

210261250

$1.90

190

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

405

Torx Screw M6 X 25

250000758

$2.11

451

Reflective Sheet

707002475

$3.89

491

Reflective Sheet

705002451

$8.89

495

Reflective Sheet

705005840

$9.39

510

LH Rear Facia | North America, International

705004731

$19.99

520

RH Rear Facia | North America, International

705004732

$19.99

530

Red, Reflector

705016982

$14.49

540

Flange Elastic Nut M5

233251434

$2.00

545

Flat Washer

517225900

$0.18

672

Torx Screw M6 X 16

250000755

$0.87

673

Flange Elastic Nut M6

233261434

$4.44

690

Engine Cover

705004966

$14.49

880

LH Rear Body Panel Cap

705017923

$13.99

890

RH Rear Body Panel Cap

705017924

$15.99

910

Rear Carpet

705002343

$19.49

920

Hook

705017925

$16.99

930

Torx Screw M6 X 20

250000712

$2.11

931

Flange Elastic Nut M6

233261434

$4.44

1020

LH Fender Support

705010314

$51.99

1030

RH Fender Support

705010315

$51.99

1040

Torx Screw M6 X 25

250000758

$2.11

1050

Bushing

293900105

$7.65

1060

Overmolded Grommet

293720130

$4.69

1070

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

1080

Flange Elastic Nut M6

233261434

$4.44

1090

Flat Washer

250200040

$1.90
