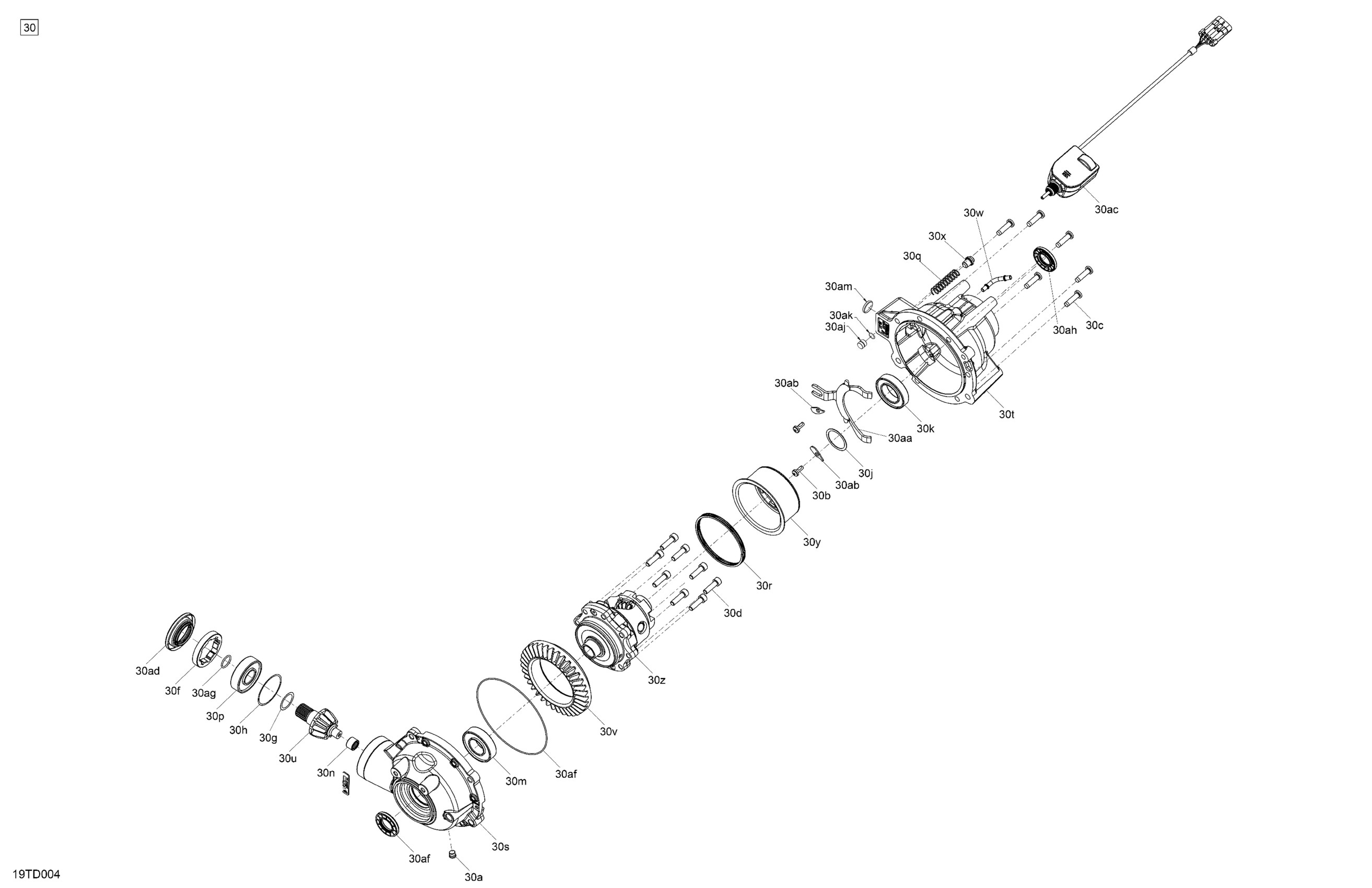

Can-Am International - Renegade 1000R EFI 4X4 - 4FRC - X MR Package - Hyper Silver, 2024 04- Drive - Front - Differential Parts Diagram

Description

Price

Differential Ass'y | Includes 30 to 30af

705403049

$1,339.99

30a

Drain Plug | After May 30, 2014

705501885

$14.22

30b

Torx Screw M6 X 16

705402845

$11.05

30c

Screw | 4X4

705401601

$10.49

30d

Screw | After May 30, 2014

705401602

$6.19

30f

Nut | 4X4

705401603

$35.99

30g

Shim

705401769

$7.69

30h

Shim

705401770

$7.09

30j

Shim

705402846

$32.99

30k

Ball Bearing

705402847

$49.99

30m

Ball Bearing | 4X4

705401606

$51.99

30n

Ball Bearing | After May 30, 2014

705402848

$49.99

30p

Ball Bearing

705402849

$51.99

30q

Compression Spring

705402850

$11.99

30r

Wave Spring

705402851

$37.99

30s

Front Pinion Cover | After May 30, 2014

705401792

$149.99

30t

Front Cover

705403051

$279.99

30u

Pinion 10 Teeth | After May 30, 2014

705402841

$219.99

30v

Gear 36 Teeth

705402842

$409.99

30w

Vent Valve | After May 30, 2014

705401613

$16.49

30x

Plunger

705402854

$14.99

30y

Shift Collar

705402855

$60.49

30z

Differantial 0 CIP

705402789

$929.99

30aa

Shift Fork

705402785

$52.99

30ab

Retaining Ring

705402783

$16.99

30ac

Actuator

705403060

$389.99

30ad

Oil Seal | After May 30, 2014

705401615

$19.49

30af

Seal | After May 30, 2014

705401616

$14.28

30ag

O'Ring | After May 30, 2014

705401617

$7.20

30ah

Gasket | 4X4

705401618

$18.49

30aj

Plug

705403054

$24.49

30ak

O'Ring

705403052

$12.11

30am

Oil Seal

705403053

$24.99
