Description

Price

0a

Push Nut

250001189

$1.37

0b

LH Headlight | Includes 0b to 0b3

710006997

$239.99

0b1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0b2

Rubber Cap Protector

219800280

$19.49

0b3

Spring

219800281

$3.49

0c

E-Circlip

293370013

$0.65

0d

RH Headlight | Includes 0d to 0d3

710006998

$239.99

0d1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0d2

Rubber Cap Protector

219800280

$19.49

0d3

Spring

219800281

$3.49

0f

Torx Truss Screw M6 X 16

250000721

$1.69

0g

E-Circlip

293370013

$0.65

0g1

Female Housing, 2 Circuits

409209500

$15.27

10h

Connector Plug | Includes 10h to 10h1

710004900

$15.87

10h1

Housing

710001951

$12.71

10j

Cap

708400046

$3.89

0h

LH Tail Light | Includes 0k to 0k1

710007002

$158.99

0h1

Flasher Bulb

219800304

$6.66

0j

RH Tail Light | Includes 0m to 0m1

710007004

$158.99

0j1

Flasher Bulb

219800304

$6.66

0k

Panel Nut M6 X 1.0

250100208

$1.46

0m

Torx Screw M6 X 20

250000722

$1.68

0n

Flat washer M6

250200164

$1.01

0p

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

0p1

Bulb 12V 10W

219800322

$8.68

0q

Panel Nut M5 X 0.8

250000958

$4.23

0r

Torx Truss Screw M5 X 20

250000715

$2.11

0s

Stainless Steel Flat Washer M5

234052670

$1.01

0t

Passenger Detection Switch

710008103

$76.99

0u

Panel Nut M6 X 1.0

250100208

$1.46

0v

Stainless Steel Flat Washer

234062670

$2.11

0w

Torx Truss Screw M6 X 25

250000807

$2.11

0x

LH Cargo Harness

710006437

$1,029.99

0y

Cargo Harness RH

710006429

$27.99

0z

LH Connector Support

710004643

$12.99

0aa

RH Connector Support

710004644

$11.49

0ab

Torx Screw K50 X 16

250000720

$1.69

3z

Antenna Cap

708302051

$25.99

3aa

Antenna Cable Ass'y

710006406

$86.99

3ab

Antenna Support | Includes 0ah to 0ah1

708301797

$13.99

3ac

Panel Nut M6 X 1.0

250100208

$1.46

3ad

Torx Screw M6 X 20

250000722

$1.68

0ad

Hex. Flange Screw M8 X 20

207682044

$1.15

0af

License Light | Includes 0an to 0an1

710001451

$76.49

0af1

Bulb

219800128

$2.46

0ag

Hex. Flange Screw K40 X 16

250001123

$2.11

410f

Antenna

710005434

$27.49

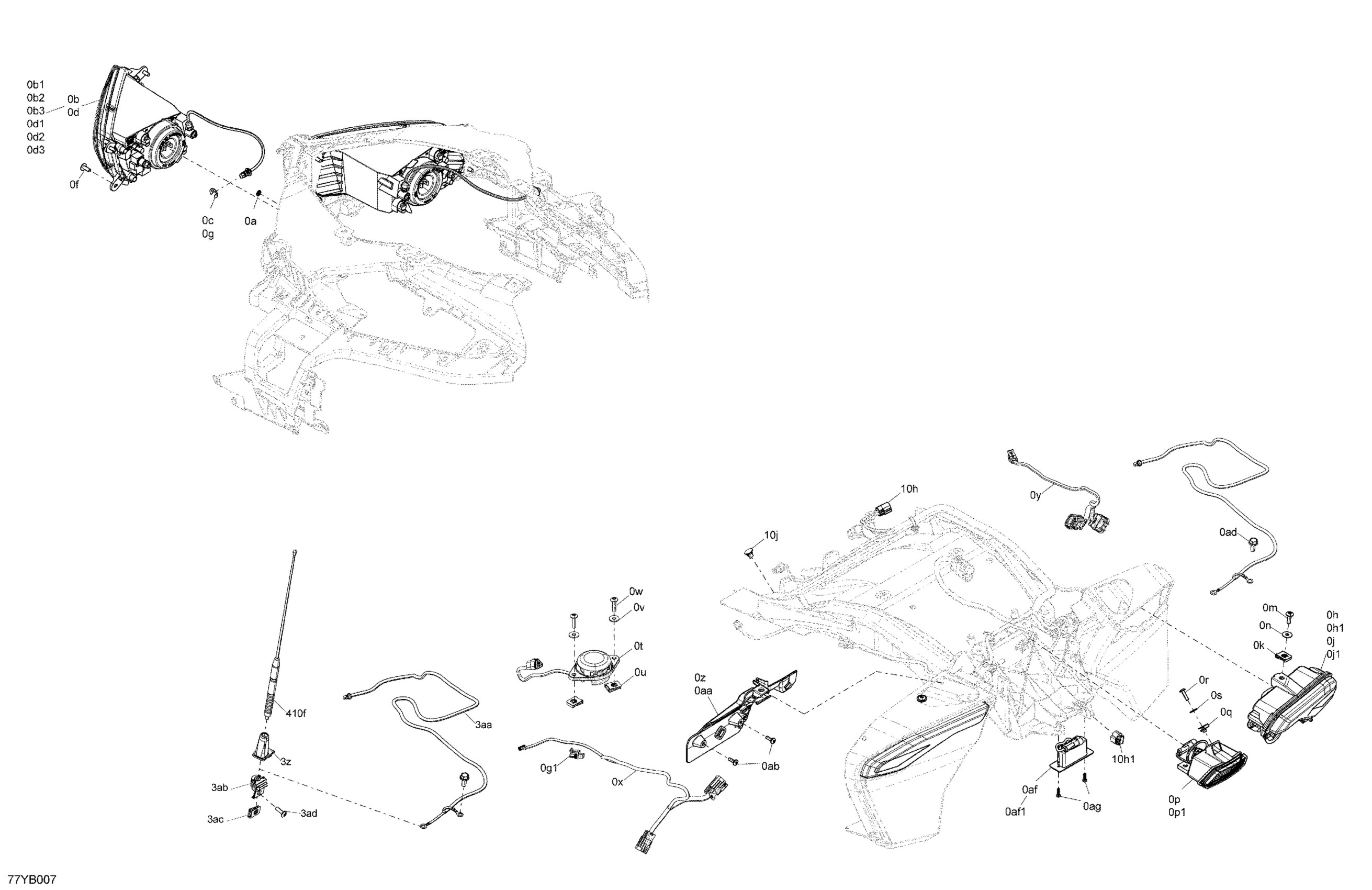

Can-Am 013 - F3 T - Barely Blue, 2022 08- Electric - Vehicle Lighting Diagram

Push Nut

LH Headlight | Includes 0b to 0b3

Halogen Bulb, 60/55 W, 12 V ( H4 )

Rubber Cap Protector

Spring

E-Circlip

RH Headlight | Includes 0d to 0d3

Halogen Bulb, 60/55 W, 12 V ( H4 )

Rubber Cap Protector

Spring

Torx Truss Screw M6 X 16

E-Circlip

Female Housing, 2 Circuits

Connector Plug | Includes 10h to 10h1

Housing

Cap

LH Tail Light | Includes 0k to 0k1

Flasher Bulb

RH Tail Light | Includes 0m to 0m1

Flasher Bulb

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Flat washer M6

Back-Up Light | Includes 0k to 0k1

Bulb 12V 10W

Panel Nut M5 X 0.8

Torx Truss Screw M5 X 20

Stainless Steel Flat Washer M5

Passenger Detection Switch

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Torx Truss Screw M6 X 25

LH Cargo Harness

Cargo Harness RH

LH Connector Support

RH Connector Support

Torx Screw K50 X 16

Antenna Cap

Antenna Cable Ass'y

Antenna Support | Includes 0ah to 0ah1

Panel Nut M6 X 1.0

Torx Screw M6 X 20

Hex. Flange Screw M8 X 20

License Light | Includes 0an to 0an1

Bulb

Hex. Flange Screw K40 X 16

Antenna
