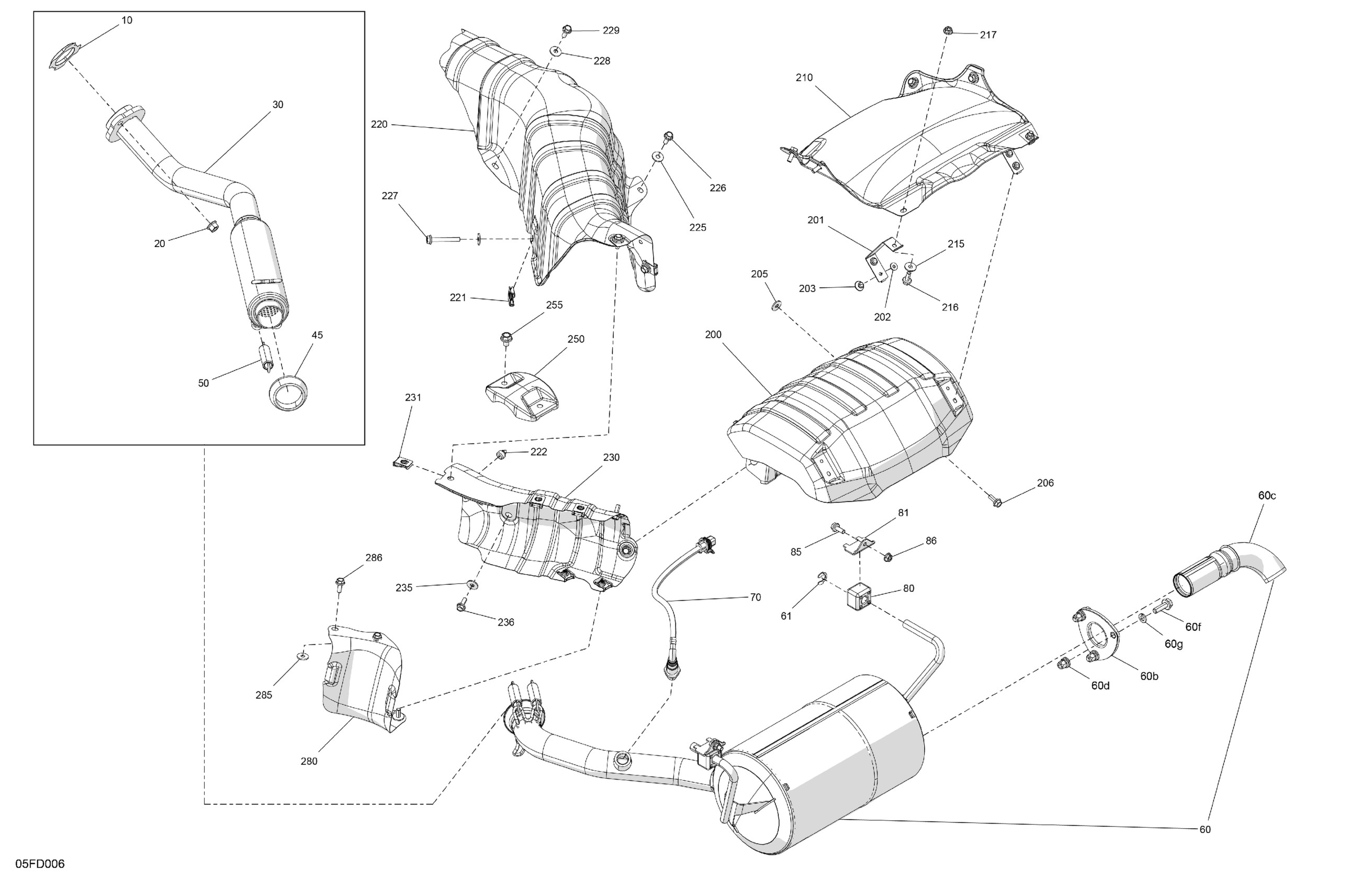

Can-Am International - Outlander Max 700 4X4 - 1YRC - XT Package - Platinum Silver Satin, 2024 02- Engine - Exhaust Diagram

Description

Price

Exhaust Gasket

707602697

$5.98

Hex. Flange Nut

233081436

$2.00

Exhaust Pipe | Includes 30 to 30k

707602958

$269.99

Exhaust Gasket

707603475

$26.49

Spring

707601834

$6.35

Exhaust Muffler Ass'y | Includes 60 to 60g

707602964

$741.49

60b

Gasket

707602780

$12.63

60c

Tail Pipe | Includes 60c to 60c4

707602969

$87.99

60d

Threaded Insert M8 X 1.25

250100238

$0.80

60f

Hex. Flange Screw M8 X 25

207682544

$1.35

60g

Lock Washer Din.127B

707603743

$2.00

External Retaining Ring

293370184

$1.89

Oxygen Sensor

707600872

$144.99

Vibration Damper

707603000

$7.90

Muffler Support

707603200

$18.54

Hex Flange Screw M6 X 16

250000906

$5.29

Hex. Flange Nut M6

233161414

$2.11

200

Heat Shield

707603428

$47.99

201

Heat Shield Support

707603029

$3.29

202

Flat Washer

517225900

$0.18

203

Pop Rivet 3/16”

390910000

$0.57

205

Flat Washer 6 mm

234062410

$0.77

206

Hex Flange Screw M6 X 16

250000906

$5.29

210

Heat Shield

707603768

$60.99

215

Flat Washer 6 mm

234062410

$0.77

216

Hex Flange Screw M6 X 16

250000906

$5.29

217

Hex. Flange Nut M6

233161414

$2.11

220

Heat Shield

707603002

$36.99

221

Panel Nut M6 X 1.0

250100208

$1.46

222

Rubber Bumper

293830005

$8.09

225

Flat Washer 6 mm

234062410

$0.77

226

Hex Flange Screw M6 X 16

250000906

$5.29

227

Hex. Flange Screw M6 X 45

207664544

$1.46

228

Flat Washer 6 mm

234062410

$0.77

229

Hex Flange Screw M6 X 16

250000906

$5.29

230

Heat Shield

707603003

$36.99

231

Panel Nut M6 X 1.0

250100208

$1.46

235

Flat Washer 6 mm

234062410

$0.77

236

Hex Flange Screw M6 X 16

250000906

$5.29

250

Heat Shield

707603005

$13.49

255

Hex. Flange Screw M8 X 12, Scotch Grip

207581244

$1.15

280

Heat Shield

707603006

$13.49

285

Flat Washer 6 mm

234062410

$0.77

286

Hex Flange Screw M6 X 16

250000906

$5.29
