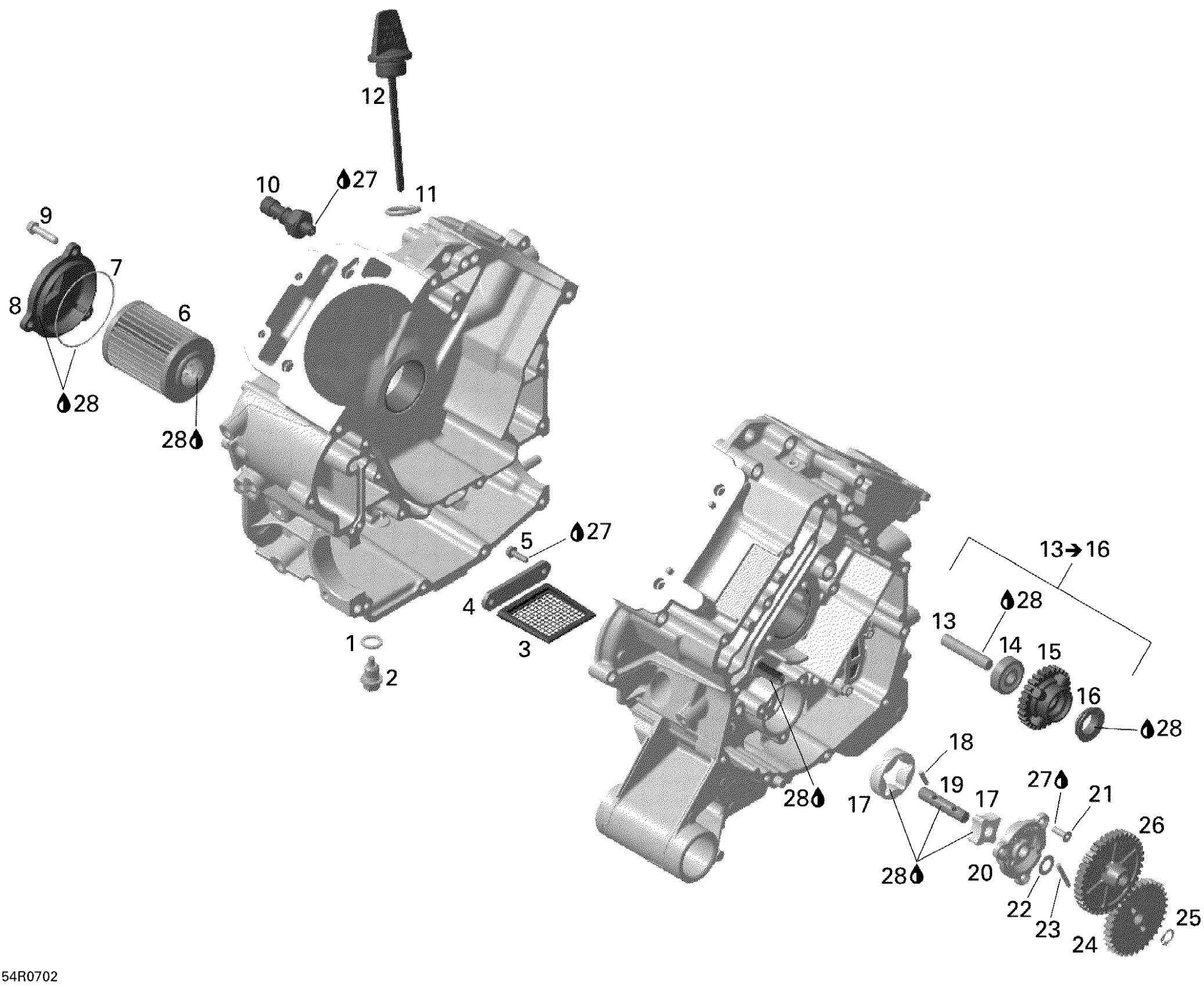

Can-Am Outlander 500 XT, 2008 01- Engine Lubrication Diagram

#

Description
Price

1

Copper Washer

420250640

$0.98

2

Magnetic Drain Plug M12

420241787

$17.99

3

Oil Sieve

420256322

$28.49

4

Cover Sieve

420210661

$14.28

5

Taptite Screw M5 X 16

420941928

Unavailable

6

Oil Filter

420256188

$13.77

7

O-Ring

420230923

$3.17

8

Oil Filter cover

420612135

$11.63

9

Torx Flange Screw M6 X 25

420641238

$3.27

10

Oil Pressure Switch

420856537

$45.99

11

O-Ring

420631640

$2.11

12

Oil Dipstick

420256802

$17.05

13

IDLE GEAR, 28 TEETH - Call your local BRP dealership | Includes 13 to 16

420434305

Unavailable

13

Idle Gear Ass'y, 28 Teeth | Includes 13 to 16

420434307

$88.99

13

Not Available As Spare Part - Friction Washer

Unavailable

14

Not Available As Spare Part - Friction Washer

Unavailable

15

Not Available As Spare Part - Friction Washer

Unavailable

16

V-Ring 20S FPM Blow By Valve

420630125

$11.63

16

Oil Seal

420430555

$19.99

17

Oil Pump Rotor

420256348

$77.99

18

Needle Pin

420232731

$4.01

19

Oil Pump Shaft

420237059

$29.49

20

Oil Pump Cover

420210646

$48.49

21

Torx Head Screw M5 X 16

420640823

$1.90

22

Thrust Washer

420827590

$4.01

23

Needle Pin

420232431

$4.39

24

Oil Pump Gear, 33 Teeth

420434320

$13.77

25

Snap Ring

420245330

$1.79

26

Idle Gear, 38 Teeth

420434300

$13.77

27

Loctite 243, 10 ml

293800060

$21.49

28

Not Available As Spare Part - Friction Washer

Unavailable
