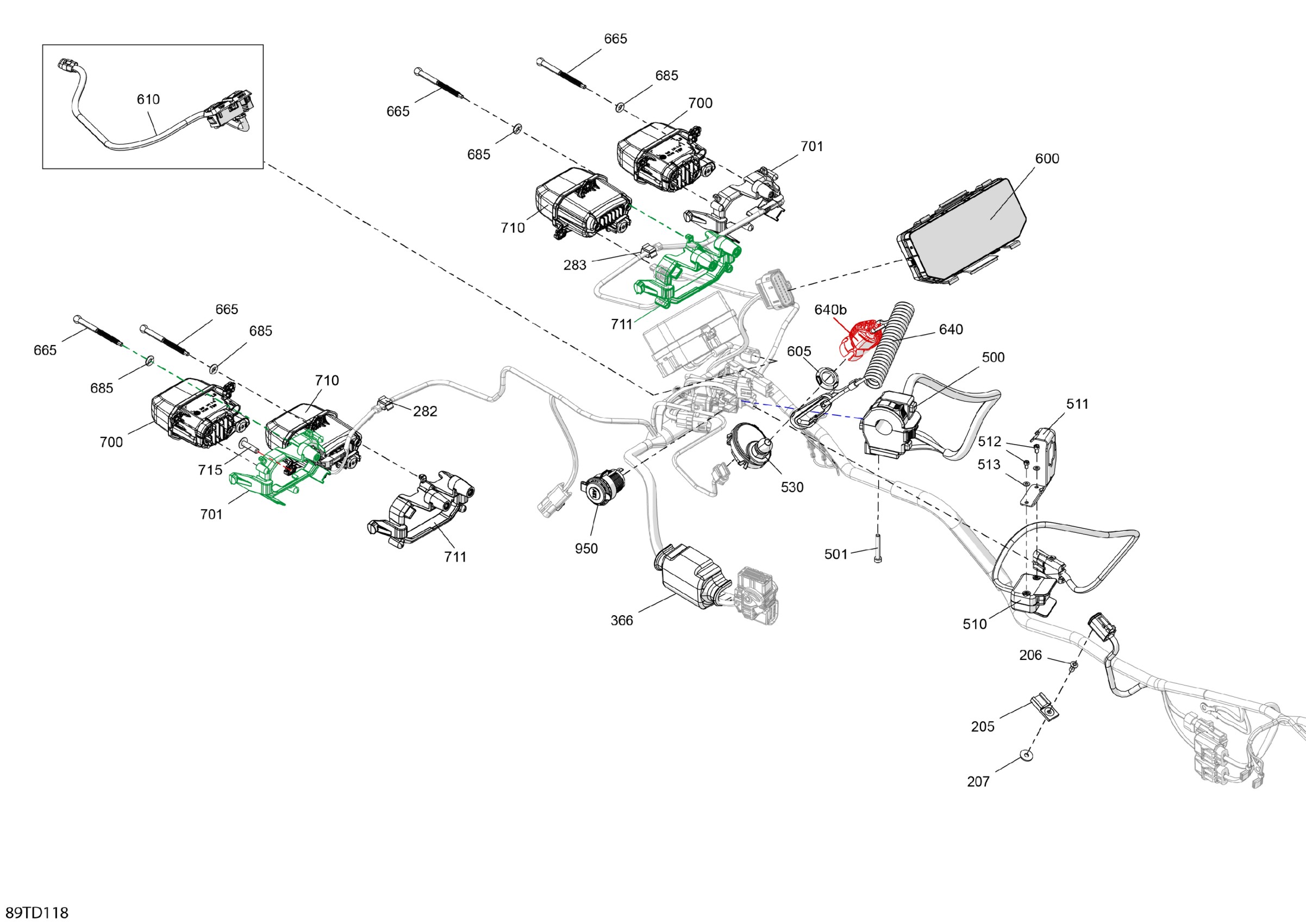

Can-Am North America - Outlander 850 EFI 4X4 - 4KRA - X MR Package - Legion Red, 2024 08- Electric - Front Section Diagram

Description

Price

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

210

ARB Connector Cap | Not Shown

710009479

$17.59

210a

Connector Sumitomo Male 2 Cavities

710008151

$8.54

210b

Cap

710000080

$8.29

282

Clip

710010204

$1.67

283

Clip

710010204

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

Switch Handle

710006134

$71.99

501

Socket Head Screw M5 X 35

205053588

$1.90

510

Winch Switch

710007327

$13.18

511

Black Support | Packages - XT, XTP, LTD, XMR Except Europe

710004670

$10.99

512

Hex. Cap Screw 6-32 X 1/4" | XT Models

250000153

$1.69

513

Flat Washer 4 mm

234040600

$0.55

530

Terminal DESS One Wire

515179305

$74.99

600

Multifunction Gauge Mid

710008297

$379.99

605

Specialized Nut

278004274

$3.28

610

Multifunction Switch

710008638

$63.49

640

Key Dess Can-Am Ass'y | Includes 660 to 660b

710010247

$84.99

640b

Grey, Can-Am DESS Key

515179384

$63.49

665

Ajustment Screw

710005837

$6.35

685

O-Ring

293300192

$4.92

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

710

HIgh Beam Light

710006910

$129.99

711

Interior Headlight Support

710008394

$9.09

715

Torx-Truss Pt K40 X 16

250000759

$2.11

950

DC Outlet

710001248

$37.99
