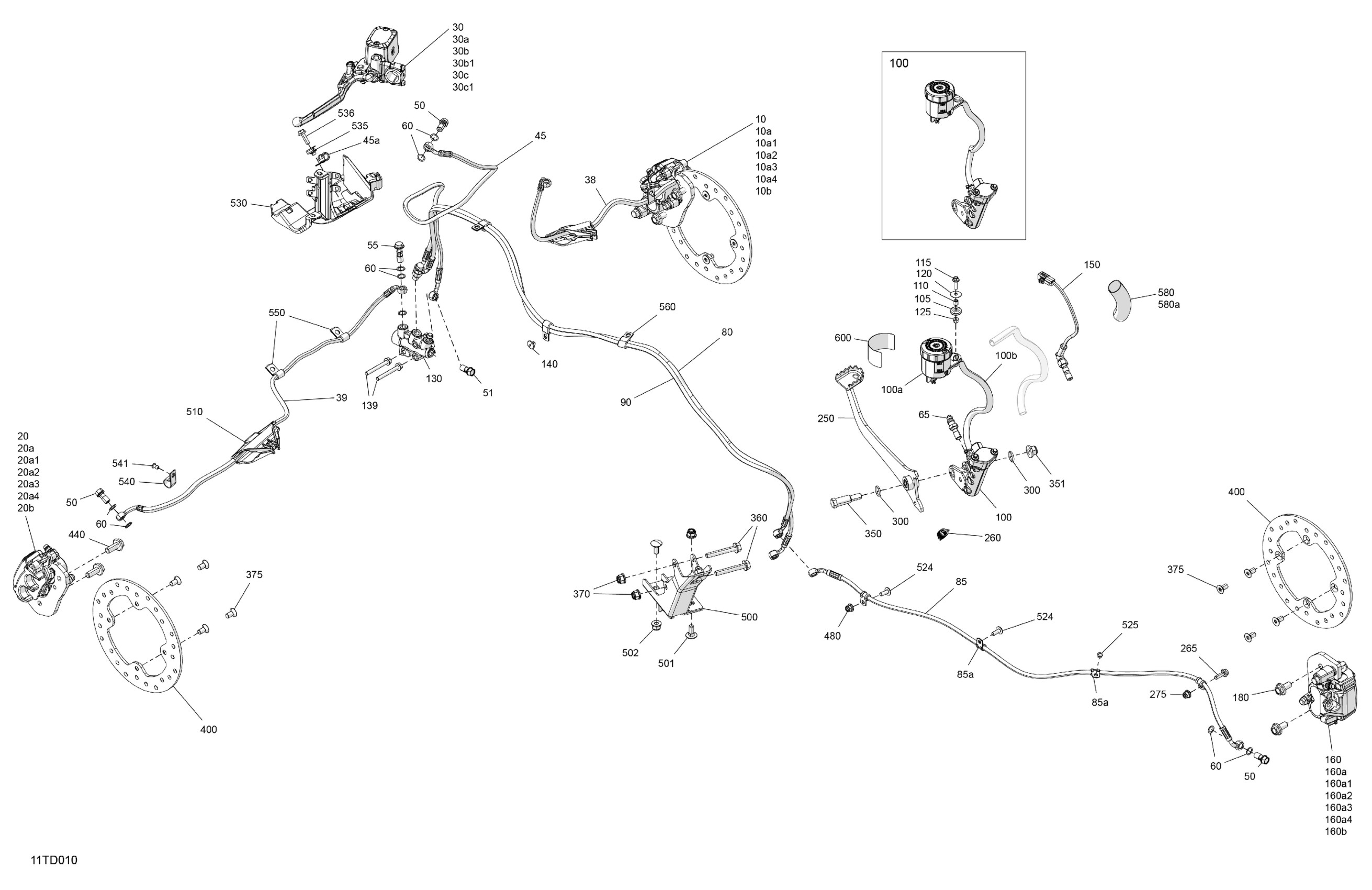

Can-Am North America - Outlander 1000R EFI 4X4 - 5KRB - X MR Package - Hyper Silver, 2024 03- Mechanic - Brake System Diagram

RH Front Caliper Ass'y | Model XMR

703500967

$280.99

RH Front Caliper Ass'y | Includes 1 to 5

705600861

$270.49

RH Organic Brake Pad Kit

705601014

$42.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

LH Front Caliper Ass'y | Model XMR

703500968

$270.49

LH Front Caliper Ass'y | Includes 6 to 10

705600862

$270.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

LH Organic Brake Pad Kit

705601015

$42.49

LH Metallic Brake Pad Kit | Model XMR

715900248

$51.99

LH Front Master Cylinder | Includes 11 to 14

705601430

$259.99

Lever Set

705601013

$63.99

Clamp And Screw Kit

507032477

$23.99

Hex. Flange Screw M6 X 25

250000447

$2.11

Cap Set

219800096

$21.99

Screw M4 X 20

415129356

$2.22

RH Brake Line | Package XMR

705601690

$45.49

LH Brake Line | Package XMR

705601692

$45.49

Brake Handle Line | Includes 17 to 18

705600967

$48.49

Clamp

293650256

$5.49

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Banjo Bolt (M10 x 1.25 thread)

705600609

$0.99

Double Banjo Bolt

705601723

$7.90

Washer

414920600

$1.90

Bleeding Screw

705601051

$12.16

Outlet Hose, Master Cylinder

705601518

$69.99

RH Rear Hose

705601324

$49.99

Clamp

293650256

$5.49

Inlet Hose, Master Cylinder

705600973

$63.49

Rear Master Cylinder Ass'y | Includes 28 to 30

705601776

$229.99

Oil Tank

705601020

$39.99

Oil Housing Hose

705601019

$15.87

Grommet

414036300

$2.79

Bushing

293900112

$10.06

Hex.Flange Screw M5 X 20

207652044

$1.90

Flat Washer

224060201

$1.26

Flange Elastic Nut M5

233251434

$2.00

Splitter

705600994

$153.49

Hex. Flange Screw M6 X 50 | Model Europe, T3

210265040

$2.11

Pop Rivet 3/16"

390406500

$0.88

Brake Switch

705601251

$51.99

RH Rear Caliper Ass'y | Includes 175 to 175d, Model XMR

703500969

$291.49

RH Rear Brake Caliper | Includes 41 to 45

705602190

$307.49

Pin Set

705601016

$9.26

Bleeding Screw

705601017

$6.35

Retaining Spring

705601018

$7.55

RH Organic Brake Pad Kit

705601014

$42.49

RH Metallic Brake Pad Kit | Model XMR

715900249

$51.99

Hex. Flange Screw M10 X 20

207502046

$2.11

Deep Black, Brake Pedal

705602163

$154.99

Brake Pedal Spring

705600792

$9.10

Hex. Flange Screw M6 X 20

207662044

$2.00

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

O-Ring

293300144

$3.82

Shoulder Screw M10

250000513

$6.77

Hex. Flange Elastic Nut M10

233201436

$2.11

Hex. Flange Screw M8 X 55

207685544

$5.39

Hex. Flange Elastic Nut M8

233281414

$1.47

Torx Screw M8 X 16, Scotch Grip

235381646

$2.53

Disc Brake

705601997

$67.99

Hex. Flange Screw M10 X 25

207502546

$2.11

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

Brake Pedal Bracket

705202000

$38.99

Carriage Bolt, M8 X 20

207782044

$1.90

Hex. Flange Elastic Nut M8

233281414

$1.47

Front Hose Guard

705602016

$4.55

Torx Screw M6 X 16

250000755

$0.87

Pop Rivet 3/16"

390402400

$0.35

Front Hose Bracket

705600983

$13.71

Panel Nut M6 X 1.0

250100198

$2.11

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

Open Clamp

518321570

$7.69

Pop Rivet 3/16"

390402300

$0.75

Clamp

293650219

$0.90

Clamp

293650220

$0.90

Tubing 25 MM 1000MM Long

219704402

$15.99

Tubing 25 MM 1000MM Long

219704402

$15.99

Heat Shield

705601311

$4.29
