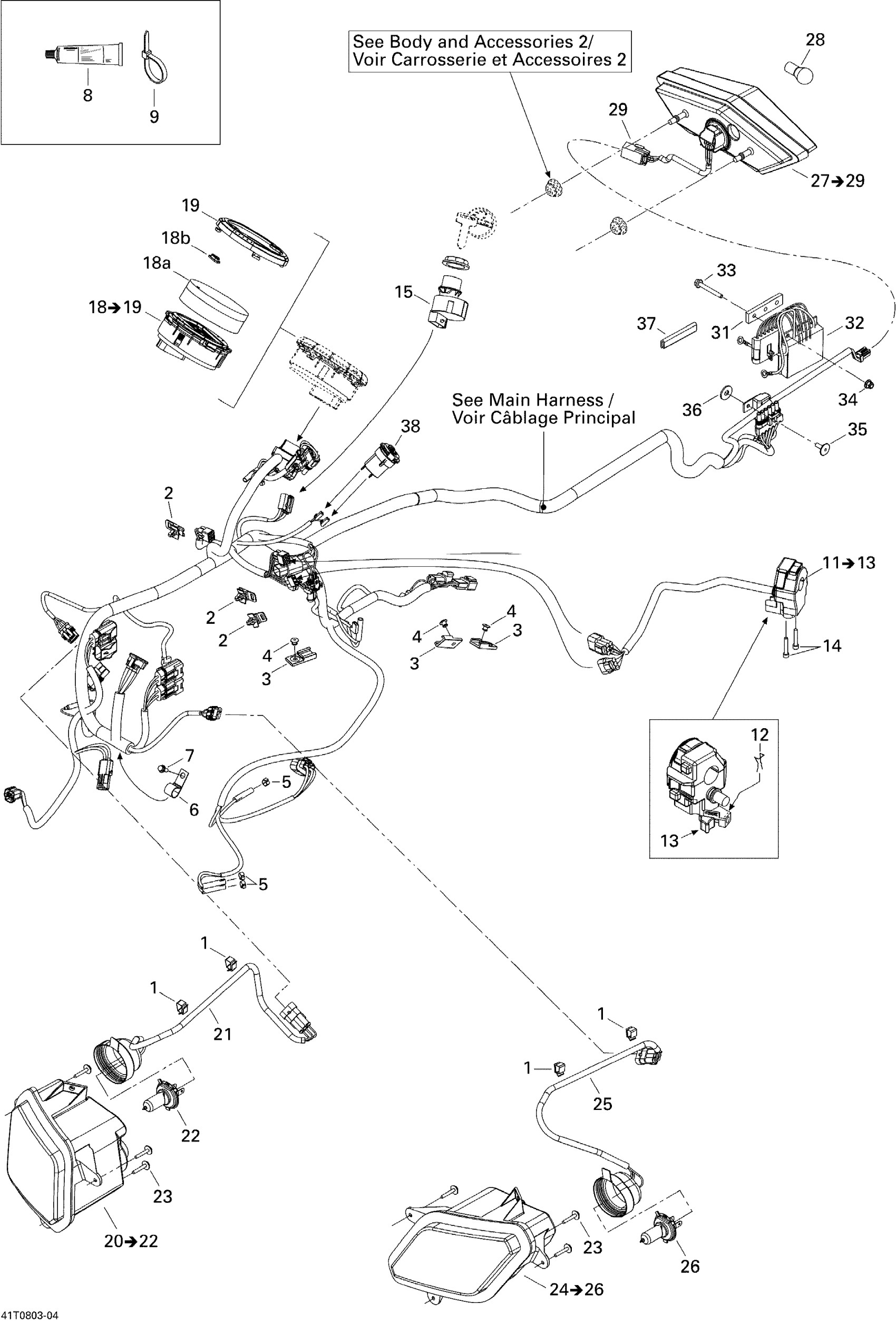

Can-Am Outlander 400 STD, 2008 10- Electrical Accessories Diagram

#

Description
Price

1

Clip

414227300

$1.67

2

Housing Support

515175283

$9.19

3

Clip

270000141

$11.49

4

Pop Rivet 3/16"

390402400

$0.35

5

Oetiker Clamp

293650100

$3.38

6

CLAMP - Call your local BRP dealership

293650181

Unavailable

7

Hex. Flange Screw M6 X 16

210261650

$1.67

8

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

9

Tie Wrap 142 mm

293750002

$1.25

9

Tie-Rap 173 mm

293750009

$1.04

9

Tie-Rap 180 mm

414115200

$0.11

9

Tie Wrap 368 mm

293750008

$1.04

9

Tie-rap 627 mm

293750041

$0.93

11

Multi-Fonction Handle | Includes 9 To 11

710000311

Unavailable

12

CLIP - Call your local BRP dealership

710000631

Unavailable

13

CHOKE LEVER - Call your local BRP dealership

710000632

Unavailable

14

Socket Head Screw M5 X 35

205053588

$1.90

15

Switch_Ignition

710007867

$87.99

18

SPEEDOMETER - Call your local BRP dealership | Includes 18 to 18a

710001358

Unavailable

18a

LENS - Call your local BRP dealership

415129319

Unavailable

19

TRIM RING - Call your local BRP dealership

710000353

Unavailable

19a

BRP Logo13 mm

704904615

$13.49

20

RH Headlamp Ass'y | Includes 20 to 22

710001496

$89.99

21

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

22

Bulb, 12V 35/35W

710000871

$34.99

23

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

24

LH Headlamp Ass'y | Includes 24 to 26

710001497

$89.99

25

LIGHT HARNESS - Call your local BRP dealership

710000828

Unavailable

26

Bulb, 12V 35/35W

710000871

$34.99

27

Tail Light Housing Ass'y | Includes 29 to 31

710001203

$74.99

28

Bulb

520000758

$9.10

29

Male Housing, 3 Circuits

515175494

$16.18

31

RECTIFIER SUPPORT - Call your local BRP dealership

710001262

Unavailable

32

Voltage Regulator | For replacement, refer to service bulletin 2005-5

710001103

$142.99

33

Hex. Flange Screw M6 X 50

207665044

$4.12

34

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

35

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

36

FLAT WASHER - Call your local BRP dealership | 4X4

250200081

Unavailable

37

Was 271000110 Protection Trim

219704353

$15.99

38

Outlet Power Kit, 12 Volts

861507200

$36.99
