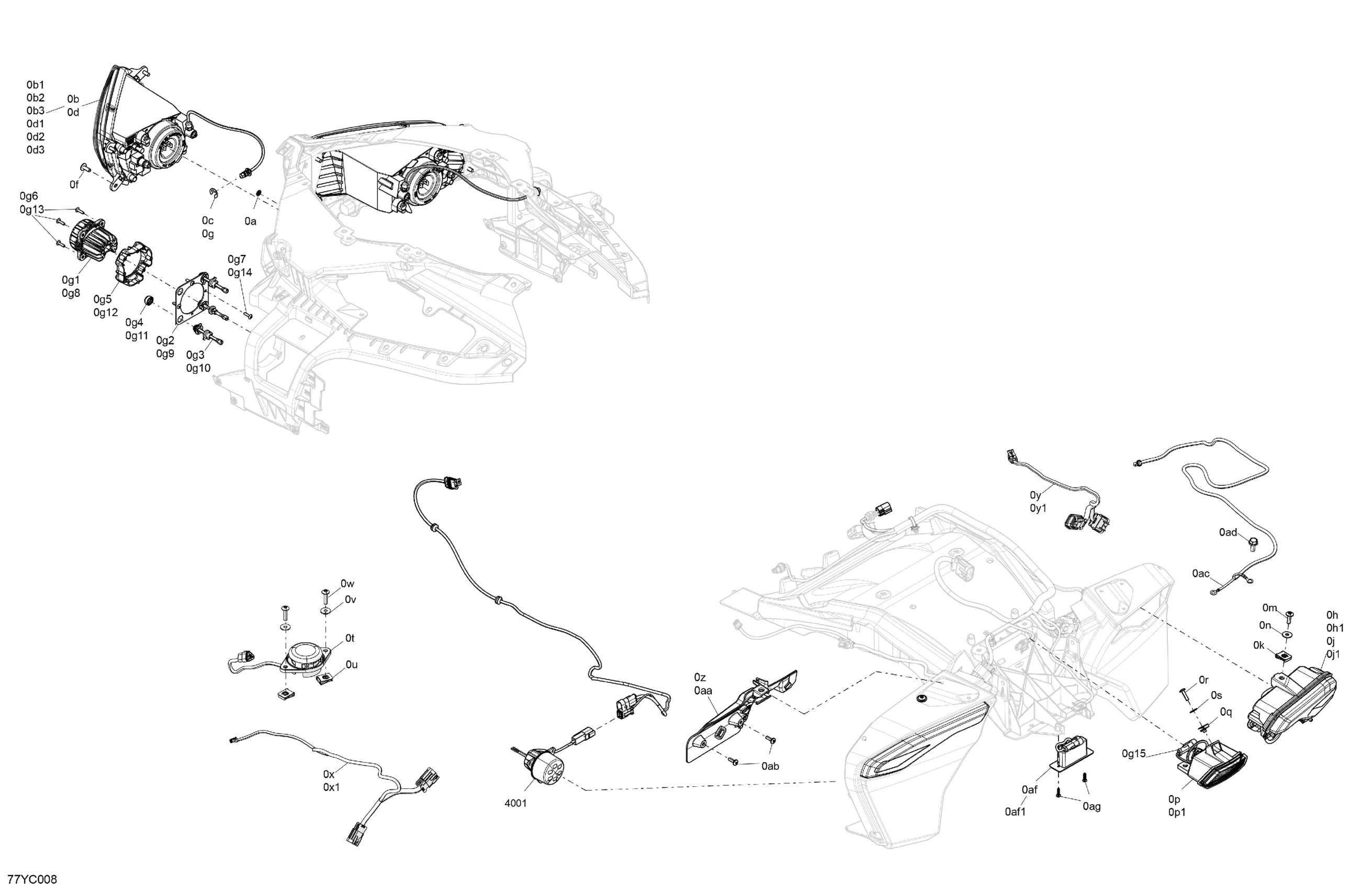

Can-Am 015 - F3 LIMITED - Dark Edition - Monolith Black, China, 2023 08- Electric - Vehicle Lighting Diagram

#

Description
Price

0a

Push Nut

250001189

$1.37

0b

LH Headlight | Includes 0b to 0b3

710006997

$239.99

0b1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0b2

Rubber Cap Protector

219800280

$19.49

0b3

Spring

219800281

$3.49

0c

E-Circlip

293370013

$0.65

0d

RH Headlight | Includes 0d to 0d3

710006998

$239.99

0d1

Halogen Bulb, 60/55 W, 12 V ( H4 )

515176274

$23.49

0d2

Rubber Cap Protector

219800280

$19.49

0d3

Spring

219800281

$3.49

0f

Torx Truss Screw M6 X 16

250000721

$1.69

0g

E-Circlip

293370013

$0.65

0g1

Low Beam Ass'y

710006007

$349.99

0g2

Headlight Support

710007188

$15.49

0g3

Adjustment Screw

710007200

$10.27

0g4

Clip

293730095

$1.68

0g5

Adapter

710007189

$3.59

0g6

Torx-Truss Pt K40 X 16

250000759

$2.11

0g7

Torx-Truss Pt K40 X 16

250000759

$2.11

0g8

Low Beam Ass'y

710006007

$349.99

0g9

Headlight Support

710007188

$15.49

0g10

Adjustment Screw

710007200

$10.27

0g11

Clip

293730095

$1.68

0g12

Adapter

710007189

$3.59

0g13

Torx-Truss Pt K40 X 16

250000759

$2.11

0g14

Torx-Truss Pt K40 X 16

250000759

$2.11

0g15

Female Housing, 2 Circuits

409209500

$15.27

0h

LH Tail Light | Includes 0k to 0k1

710007002

$158.99

0h1

Flasher Bulb

219800304

$6.66

0j

RH Tail Light | Includes 0m to 0m1

710007004

$158.99

0j1

Flasher Bulb

219800304

$6.66

0k

Panel Nut M6 X 1.0

250100208

$1.46

0m

Torx Screw M6 X 20

250000722

$1.68

0n

Flat washer M6

250200164

$1.01

0p

Back-Up Light | Includes 0k to 0k1

710007005

$70.99

0p1

Bulb 12V 10W

219800322

$8.68

0q

Panel Nut M5 X 0.8

250000958

$4.23

0r

Torx Truss Screw M5 X 20

250000715

$2.11

0s

Stainless Steel Flat Washer M5

234052670

$1.01

0t

Passenger Detection Switch

710008103

$76.99

0u

Panel Nut M6 X 1.0

250100208

$1.46

0v

Stainless Steel Flat Washer

234062670

$2.11

0w

Torx Truss Screw M6 X 25

250000807

$2.11

0x

LH Cargo Harness

710006437

$1,029.99

0x1

Housing

710001952

$11.11

0y

Cargo Harness RH

710006429

$27.99

0y1

Housing

710001927

$8.79

0z

LH Connector Support

710004643

$12.99

0aa

RH Connector Support

710004644

$11.49

0ab

Torx Screw K50 X 16

250000720

$1.69

0ac

Antenna Cable Ass'y | Includes 0ac to 0ac1

710006980

$121.99

0ad

Hex. Flange Screw M8 X 20

207682044

$1.15

0af

License Light | Includes 0an to 0an1

710001451

$76.49

0af1

Bulb

219800128

$2.46

0ag

Hex. Flange Screw K40 X 16

250001123

$2.11

4001

Fog Light Rear

710007018

$193.49
