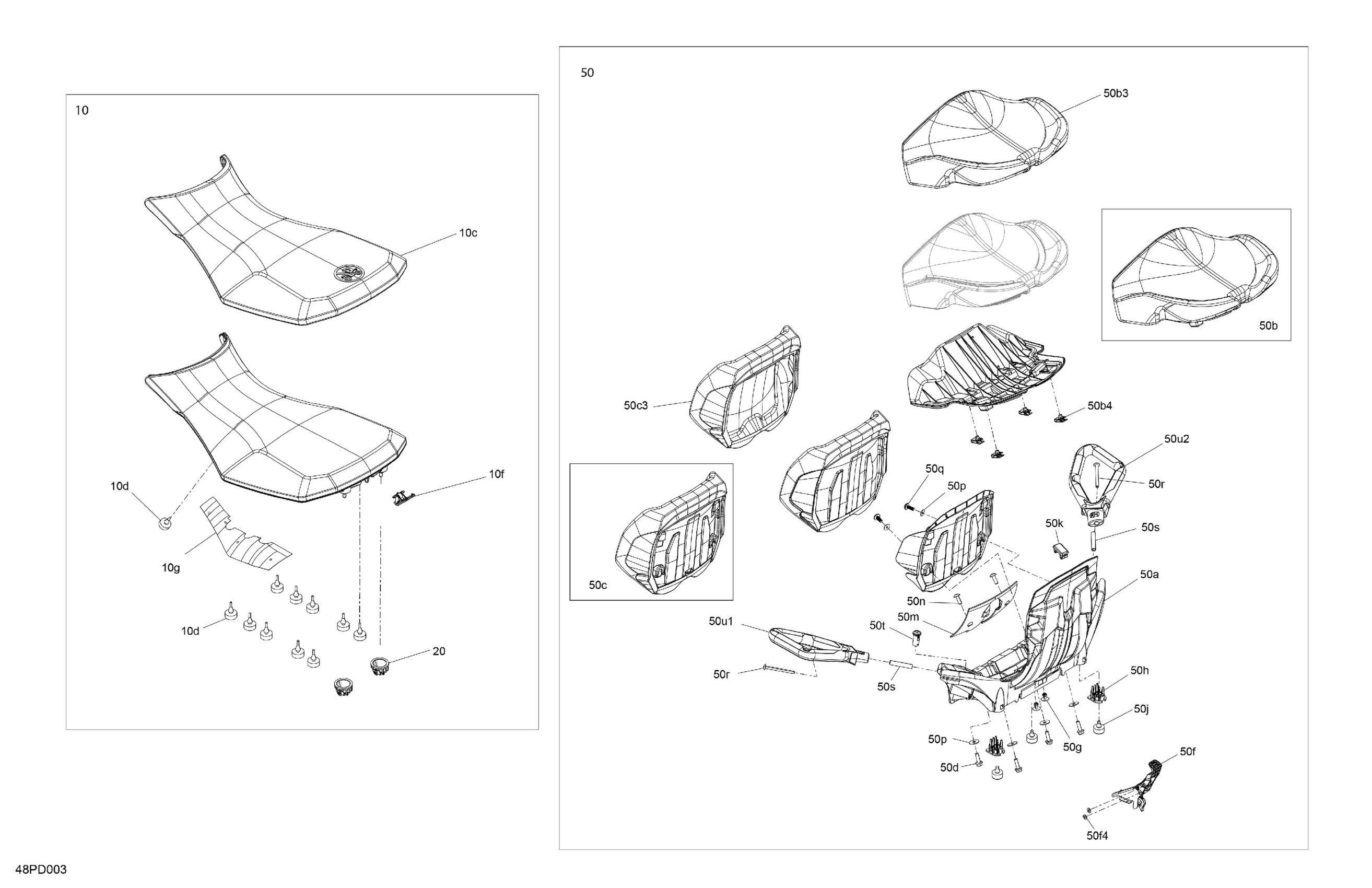

Can-Am North America - Outlander MAX 650 EFI 6X6 - 5YRA - DPS Package - Tundra Green, 2024 07- Body - Seat Diagram

Description

Price

Seat Ass'y | Includes 1 to 4

708002491

$349.99

10c

Black, Seat Cover

708000724

$77.49

10d

Rubber Stopper

708000759

$4.19

10f

Latch

708000909

$6.29

10g

HEAT SHIELD - Call your local BRP dealership

705005761

Unavailable

Seat Stopper

708003609

$10.49

Passenger Seat Ass'y | Includes 50 to 50v

708003483

$719.99

50a

Seat Base

708002574

$249.99

50b

Seat | Model-OUT-MAX XTP

708002086

$234.99

50b3

Passenger Seat Cover | Model-OUT-MAX XTP

708001581

$150.49

50b4

Panel Nut M6 X 1.0

250100198

$2.11

50c

Backrest | Model-OUT-MAX XTP

708002081

$519.99

50c3

Back Rest Cover

708001847

$123.49

50d

Hex. Flange Screw M6 X 20, Scotch Grip

207562034

$2.11

50f

Latch

708001532

$67.99

50f4

Flat Washer M5

234051410

$0.53

50g

Black, Ornit Rivet 3/16 X ,675

293150308

$1.26

50h

Seat Support

708001483

$2.99

50j

Rubber Stopper

708000758

$12.99

50k

Insert

708001511

$4.29

50m

Cap

708001512

$13.99

50n

Torx Truss PT K40 x 12

250001131

$2.11

50p

Flat Washer

224060201

$1.26

50q

Oval Head Torx Screw K60 X 16

250000546

$2.11

50r

Torx Truss M8 X 90

250000806

$7.51

50s

Sleeve

705009248

$14.99

50t

Pilot Lamp Cap

710003910

$4.29

50u1

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

50u2

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49
