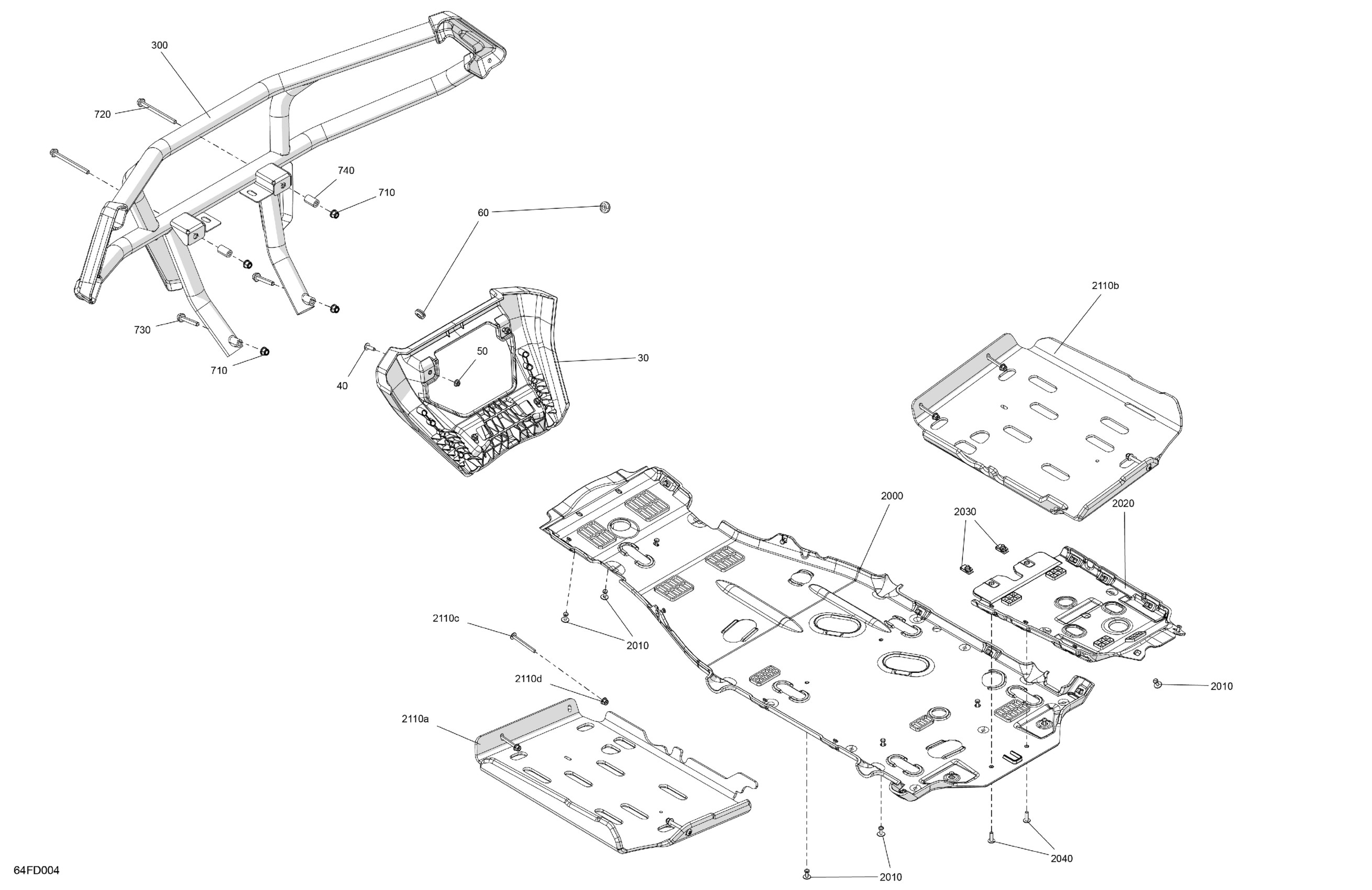

Can-Am North America - Outlander PRO HD5 4X4 - 1NRA - Hunting Edition - Wildland Camo, 2024 07- Body - Skid Plate and Bumper Diagram

#

Description
Price

30

Front Skid Plate

715009563

$29.49

40

Screw Torx M6 X 20

250001257

$1.68

50

Hex. Flange Nut M6

233161414

$2.11

60

Overmolded Grommet

293720130

$4.69

300

Deep Black, Front Bumper

705016741

$291.49

710

Hex. Elastic Flange Nut M8

233281416

$1.48

720

Hex. Flange Screw M8 X 95

207689534

$4.23

730

Hex. Flange Screw M6 X 45

250001028

$1.26

740

Spacer

705210807

$10.49

2000

Central Skid Plate Short

705018715

$98.49

2010

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

2020

Lower Rear Skid Plate

705014893

$98.49

2030

Panel Nut M6 X 1.0

250100198

$2.11

2040

Screw Torx M6 X 20

250001257

$1.68

2110a

LH Under Foot Protector

705014845

Unavailable

2110b

RH Under Foot Protector

705014846

Unavailable

2110c

Torx Screw M6 X 60

250000631

$4.61

2110d

Hex. Flange Elastic Nut M6

233261494

$1.58
