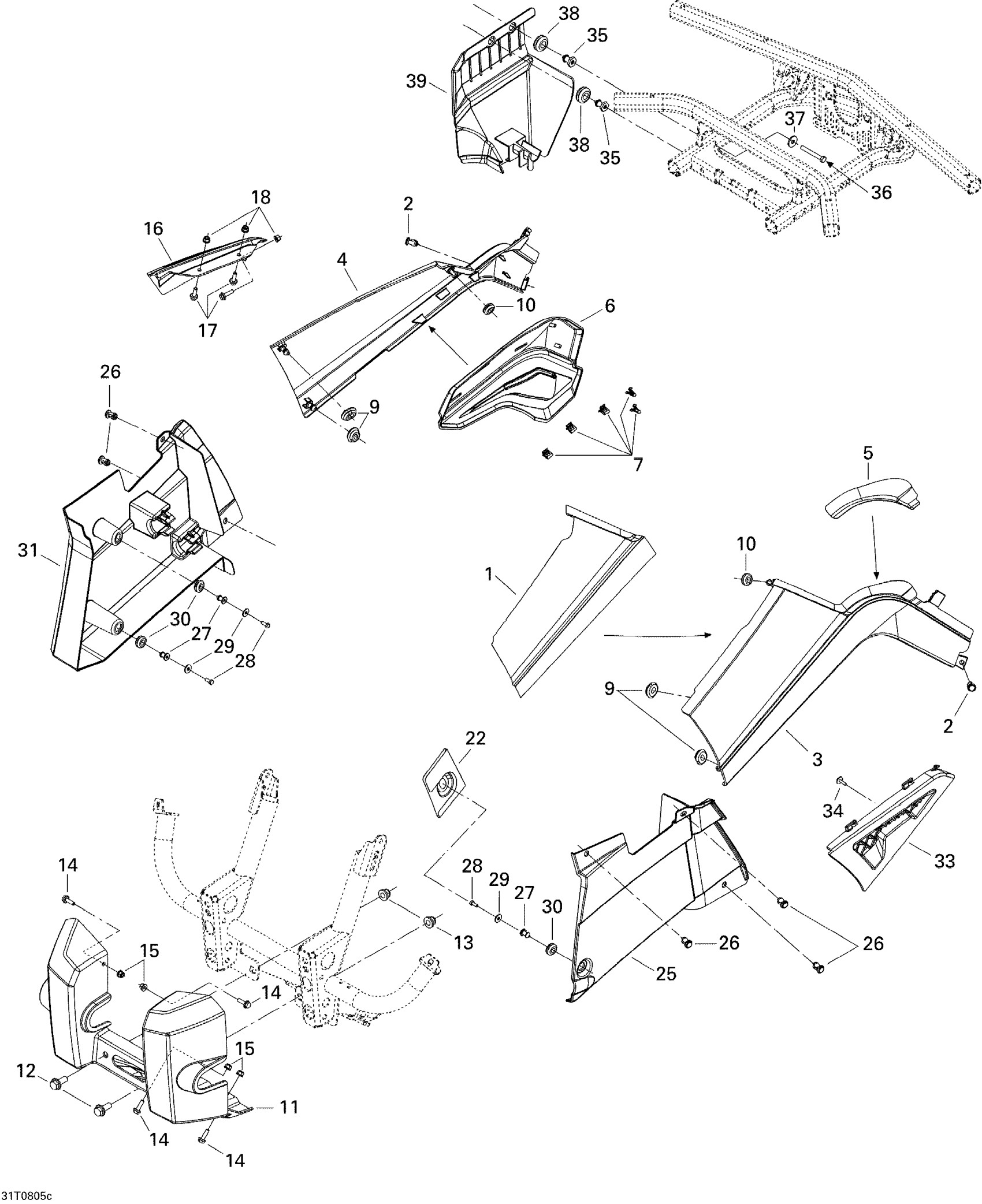

Can-Am Outlander 400 EFI XT, 2008 09- Body And Accessories 3, XT Diagram

#

Description
Price

1

REFLECTIVE SHEET - Call your local BRP dealership

705002491

Unavailable

2

Tuflok Plastic Rivet

293150230

$1.47

3

RED LH SIDE PANEL - Call your local BRP dealership | Viper Red

705003499

Unavailable

3

LH SIDE PANEL - Call your local BRP dealership | Laurentian Green

705003651

Unavailable

3

PANEL_BODY LH B-190 - Call your local BRP dealership | Yellow

705003498

Unavailable

4

Red RH Side Panel | Viper Red

705003502

$43.99

4

RH SIDE PANEL - Call your local BRP dealership | Laurentian Green

705003652

Unavailable

4

PANEL_BODY RH B-190 - Call your local BRP dealership | Yellow

705003501

Unavailable

5

Reflective Sheet

705002793

Unavailable

6

MUFFLER COVER - Call your local BRP dealership

705002664

Unavailable

7

Edge Clip

517302785

$0.88

9

Oval Washer

705005156

$4.97

10

Grommet

705003264

$4.09

11

Not Available As Spare Parts

XXX

Unavailable

12

Not Available As Spare Parts

XXX

Unavailable

13

Hex. Flange Elastic Nut M10

233201414

$1.58

14

Hex. Flange Screw M6 X 20

207662044

$2.00

15

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

16

LEVER INDICATOR - Call your local BRP dealership

705001529

Unavailable

17

Hex. Flange Screw M6 X 20

207662044

$2.00

18

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

22

Reflective Sheet

705003830

$12.99

25

LH Inner Fender

705000652

$39.99

26

Tuflok Plastic Rivet

293150230

$1.47

27

Knob

517303439

$4.55

28

Torx Screw K50 X 16

250000720

$1.69

29

Washer | DS 650 X

391301600

$0.48

30

Grommet

709000582

$4.69

31

INNER FENDER - Call your local BRP dealership

705002640

$36.99

33

CONSOLE CAP - Call your local BRP dealership

705002493

Unavailable

34

Screw M4 X 16

250000725

$3.49

35

Knob

517303439

$4.55

36

HEX. SCREW K50 X 50 - Call your local BRP dealership

241055030

Unavailable

37

Washer | DS 650 X

391301600

$0.48

38

Grommet

709000582

$4.69

39

Thread Cover

705004036

$20.99
