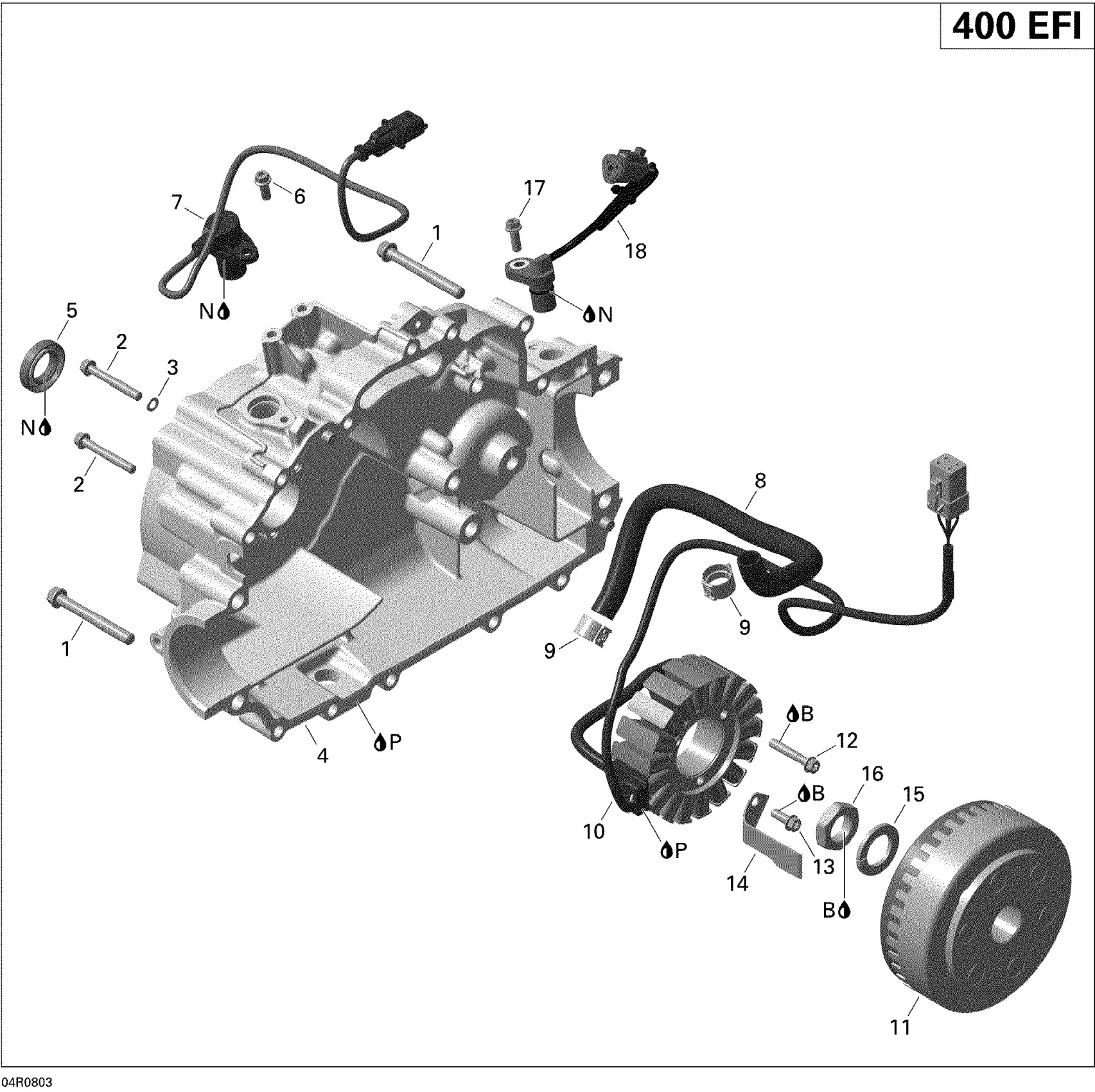

Can-Am Outlander 400 EFI STD, 2008 03- Magneto Diagram

#

Description
Price

1

Torx Flange Screw M8 X 65

420440402

$7.41

2

Torx Flange Screw M6 X 45

420440324

$0.98

3

Seal Washer

420230415

$1.79

4

Not Available As Spare Part - Friction Washer

Unavailable

5

Oil Seal

420930392

$15.81

6

Torx Flange Screw M6 X 16

420440162

$3.17

7

Crankshaft Position Sensor Ass'y | Includes 10 to 11

420966570

$109.99

8

Not Available As Spare Part - Friction Washer

Unavailable

9

Not Available As Spare Part - Friction Washer

Unavailable

10

Stator Plate, 420W

420685920

$319.49

11

MAGNETO FLYWHEEL - Call your local BRP dealership

420296903

$579.99

12

Torx Flange Screw M6 X 35

420440274

$1.01

13

Torx Flange Screw M6 X 16

420440162

$3.17

14

Inner Cable Cover

420251270

$12.12

15

Lock Washer, 22 mm

420945759

$1.90

16

Hex. Nut, M22 X 1.5

420842239

$17.53

17

Torx Flange Screw M6 X 16

420440162

$3.17

18

Speed Sensor

420265723

$109.99

B

Loctite 243, 10 ml

293800060

$21.49

N

Grease, Super Lube

293550030

$28.99

P

Loctite 5910, 300 ml

293800081

$57.99
