Description

Price

1

Front Fender Black Ds90X

V83007DGF000

$204.99

2

Rear Fender, Black

V82012DGF01H

$204.99

3

Cargo Cover

V82103DGF00HLL

$56.99

4

RH Front Side Panel

V80104DGF010BK

Unavailable

5

LH Front Side Panel

V80105DGF010BK

Unavailable

6

RH Rear Side Panel

V80116DGF000BKLL

$17.49

7

LH Rear Side Panel

V80117DGF000BKLL

$19.99

8

Heat Insulation Sheet

V18450DGF000LL

$10.99

9

Round Head Screw

V930000601201LL

$2.19

10

Round Head Screw

V930000601501LL

$2.19

11

Spring Nut

V9034506000KLL

$8.32

12

Waterproof Strip

V81146DGF020

$4.14

13

SKID PLATE, YELLOW - Call your local BRP dealership

V82113DGF01H

Unavailable

13

SKID PLATE, BLACK - Call your local BRP dealership

V80113DGF01HBK

Unavailable

14

Elastic Stop Nut M6

232561414

$0.55

15

Cargo Cover Hinge

V50262DGF030LL

$18.49

16

Tapping Screw

V9309304012LL

$2.19

17

Hex. Flange Screw M6 X 12

207661244

$2.11

18

Round Haed Bolt M6 X 35

V9300006035

$3.29

19

Hex. Flange Screw M6 X 12

207661244

$2.11

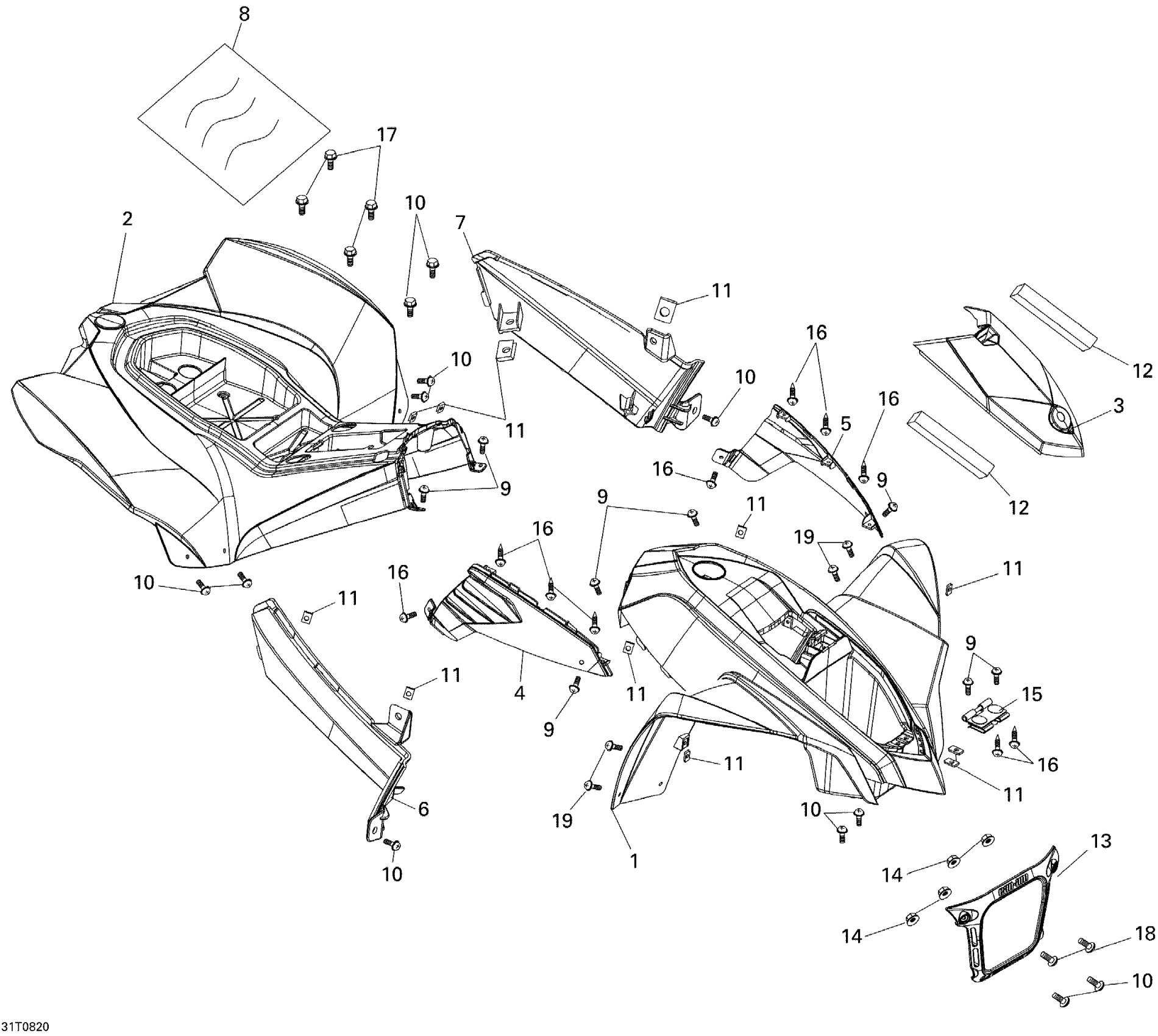

Can-Am Mini DS X 90cc 4T Black, 2008 09- Body And Accessories Diagram

Front Fender Black Ds90X

Rear Fender, Black

Cargo Cover

RH Front Side Panel

LH Front Side Panel

RH Rear Side Panel

LH Rear Side Panel

Heat Insulation Sheet

Round Head Screw

Round Head Screw

Spring Nut

Waterproof Strip

SKID PLATE, YELLOW - Call your local BRP dealership

SKID PLATE, BLACK - Call your local BRP dealership

Elastic Stop Nut M6

Cargo Cover Hinge

Tapping Screw

Hex. Flange Screw M6 X 12

Round Haed Bolt M6 X 35

Hex. Flange Screw M6 X 12
