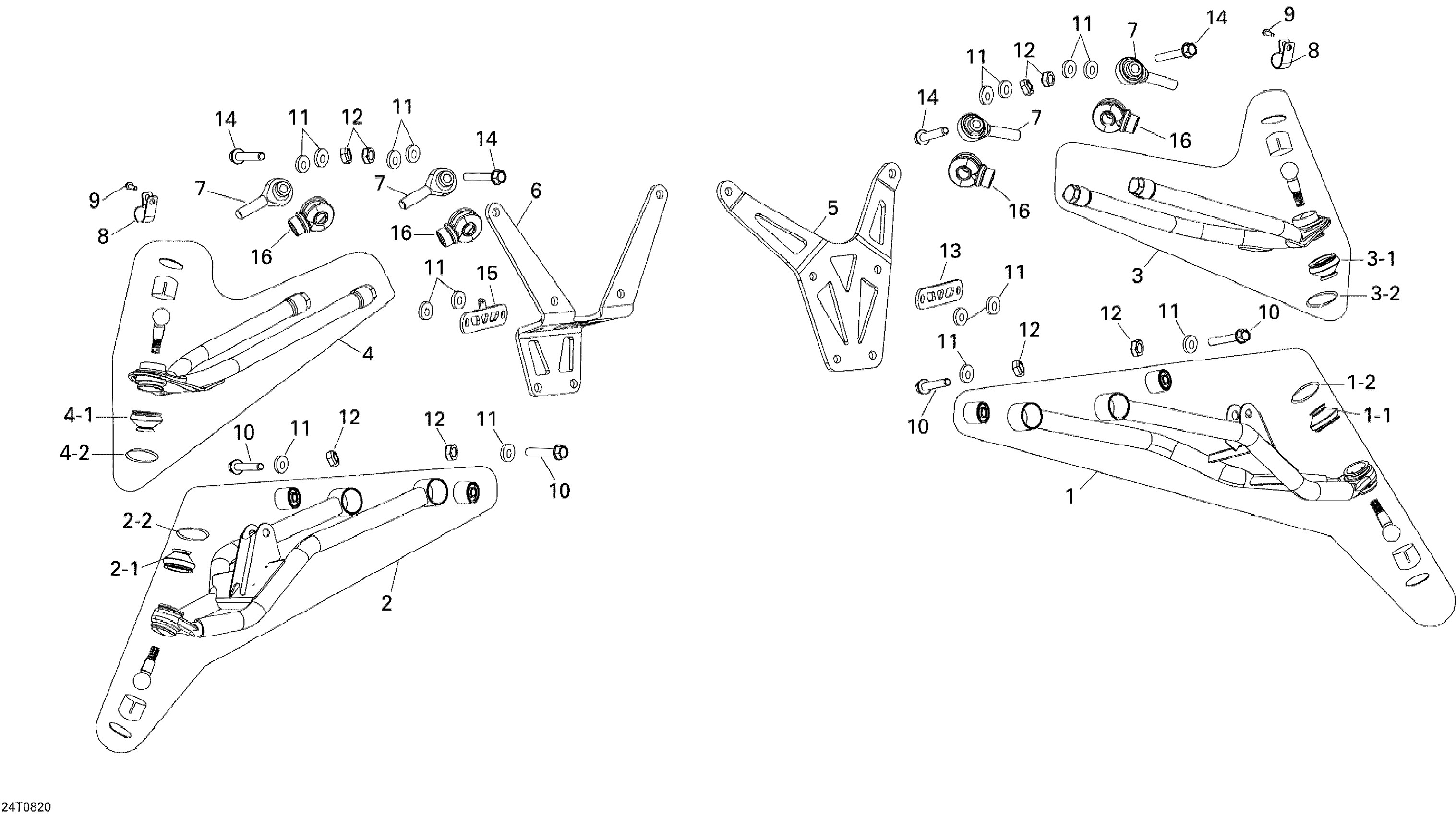

Can-Am Mini DS X 90cc 4T Black, 2008 07- Front Suspension Arm Diagram

#

Description
Price

1

LH Lower Suspension Arm

V51449DGF06H

$116.49

1-1

Protector Rubber

V52247DGF01HLL

$6.59

1-2

Circlip

V95011CEK000

$7.87

2

RH Lower Suspension Arm

V51459DGF07H

$116.49

2-1

Protector Rubber

V52247DGF01HLL

$6.59

2-2

Circlip

V95011CEK000

$7.87

3

LH Upper Suspension Arm

V51469DGF09H

Unavailable

3-1

Protector Rubber

V52247DGF01HLL

$6.59

3-2

Circlip

V95011CEK000

$7.87

4

Fr.Upper Swing Arm Rh

V51479DGF08HLL

$116.49

4-1

Protector Rubber

V52247DGF01HLL

$6.59

4-2

Circlip

V95011CEK000

$7.87

5

Front Plate

V50120DGF07HLL

$82.99

6

Rear Plate

V50121DGF06HLL

$71.99

7

Ball Joint

V51472DGF02HLL

$82.99

8

Clip

V50126DGF00H

$12.18

9

Hex. Flange Screw M6 X 12

207661244

$2.11

10

Hex. Flange Screw M10 X 55

207605544

$3.38

11

Washer

A941011020020

Unavailable

12

Elastic Flange Nut M10

232501416

$1.48

13

Plate

V50130DGF05H

$10.49

14

Hexagonal Flange Bolt

V958211006090LL

$6.35

15

Plate

V50132DGF03H

$10.49

16

Rubber Cushion

V85268DGF020LL

$2.59
