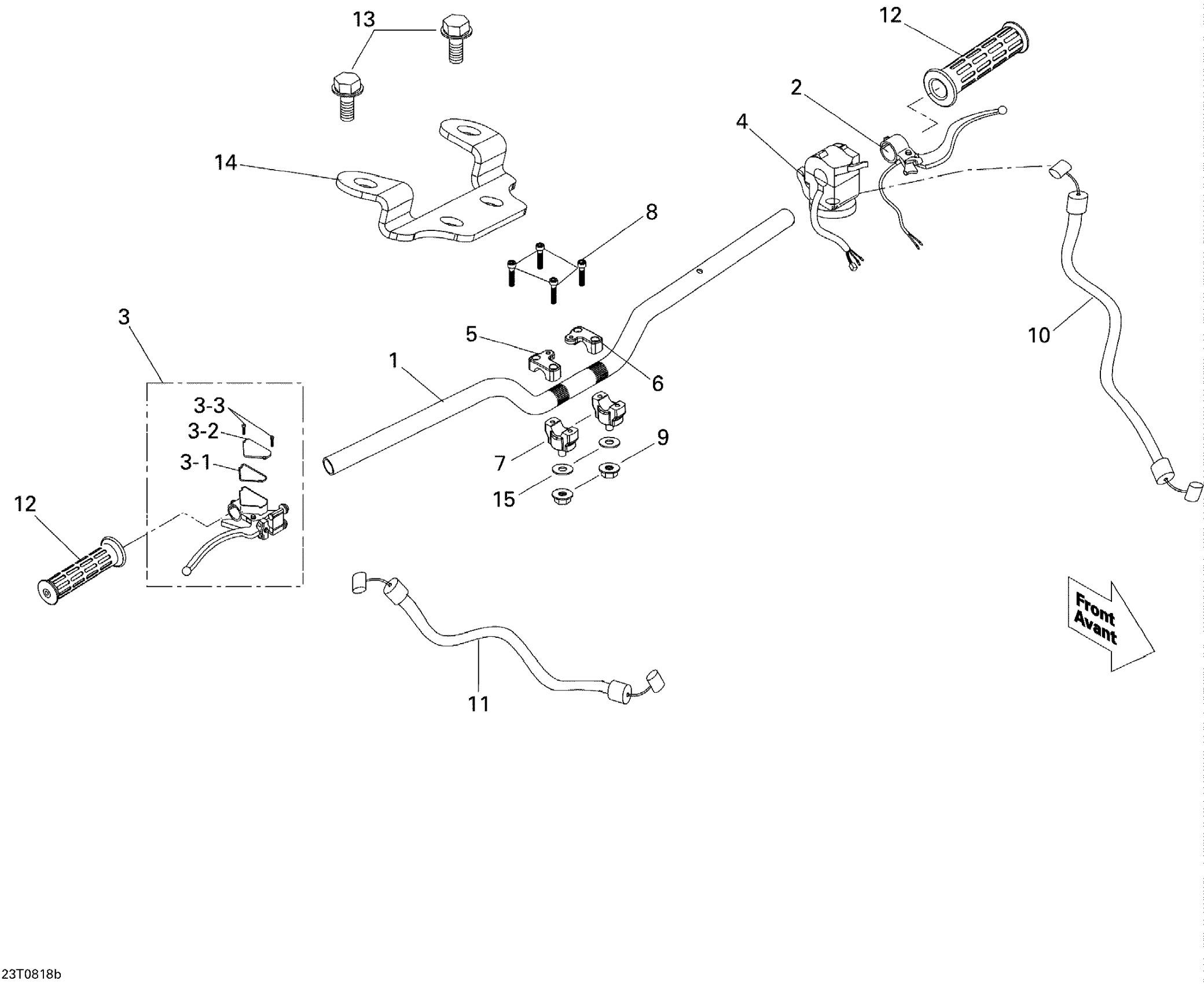

Can-Am Mini DS 90cc 4T Jaune, 2008 07- Handlebar Diagram

#

Description
Price

1

Handle Bar

V53100DGF060BKLL

$45.49

2

LH Brake Lever

V53178MAA020BKLL

$88.99

3

RH Brake Lever Ass'y

V53179MAA010BKLL

$189.99

3-1

RH LEVER GASKET - Call your local BRP dealership

V53182MAA000

Unavailable

3-2

LEVER BODY COVER - Call your local BRP dealership

V53183MAA000

Unavailable

3-3

BOLT - Call your local BRP dealership

V9350004016

Unavailable

4

MULTI-FUNCTION SWITCH - Call your local BRP dealership

V35160DGF010

Unavailable

5

LH Upper Handle Bar Clamp

V53170MAA020BKLL

$19.99

6

RH Upper Handle Bar Clamp

V53175MAA020BKLL

$19.99

7

Lower Handle Bar Clamp

V45517MAA040BK

$28.99

8

Hexagonal Bolt M6 X 25

V9100006025LL

$3.29

9

Nylon Nut M10

V9035010000010LL

$2.30

10

Choke Cable

V43316DGF060LL

$23.99

11

Throttle Cable

V17910DGF030LL

$32.99

12

Handle Grip

V53140DGF000BK

$20.49

13

Hex. Flange Screw M6 X 12

207661244

$2.11

14

Support

V50223DGF030

$18.49

15

Helicoidal Lock Washer M10 | XT Models

234101601

$1.15
