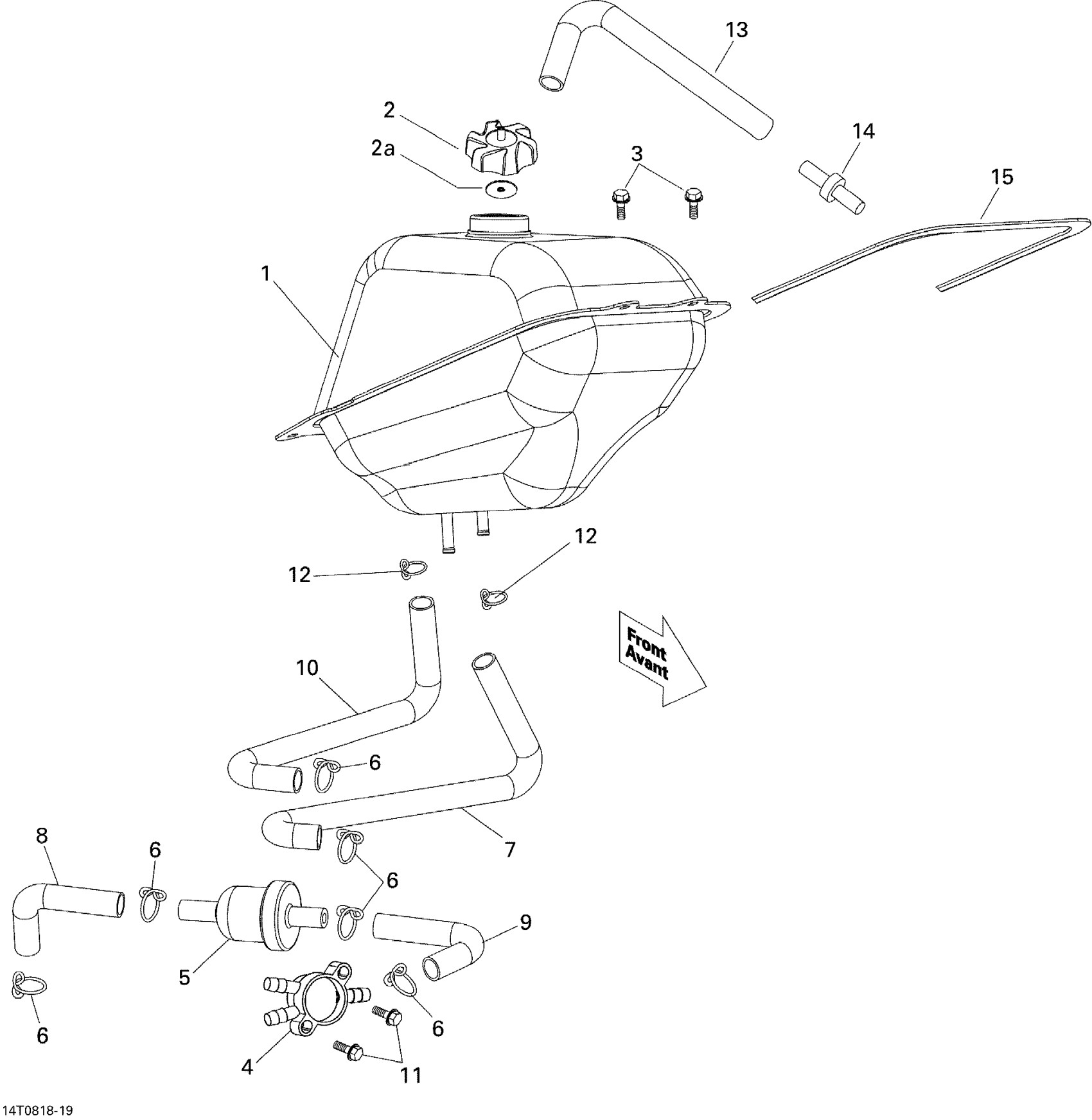

Can-Am Mini DS 90cc 4T Jaune, 2008 02- Fuel System Diagram

#

Description
Price

1

Fuel Tank

V17500DGF070LL

$85.99

2

Fuel Tank Cap

V17620DGF080LL

$28.49

2a

Fuel Tank Cap Gasket

V17624DGF010

$4.55

3

Hex. Flange Screw M6 X 12

207661244

$2.11

4

Fuel Valve

V16950DGF010LL

$48.99

5

Fuel Filter

V16910MAA000

$15.87

6

Hose Clamp

V17209DGF020

$6.99

7

FUEL TUBE B - Call your local BRP dealership

V17684DGF010

Unavailable

8

FUEL TUBE A - Call your local BRP dealership

V17682DGF030

Unavailable

9

Fuel Tube

V17683DGF010

$21.99

10

Fuel Tube

V17685DGF020

$19.49

11

Hex. Flange Bolt

V935000502201

$2.19

12

Hose Clamp

V17210DGF010

$13.99

13

Fuel Vent Tube

V17686DGF040LL

$22.49

14

Vent Pipe

V43351DGF010LL

$28.49

15

Waterproof Strip

V81149MEM010

$13.24
