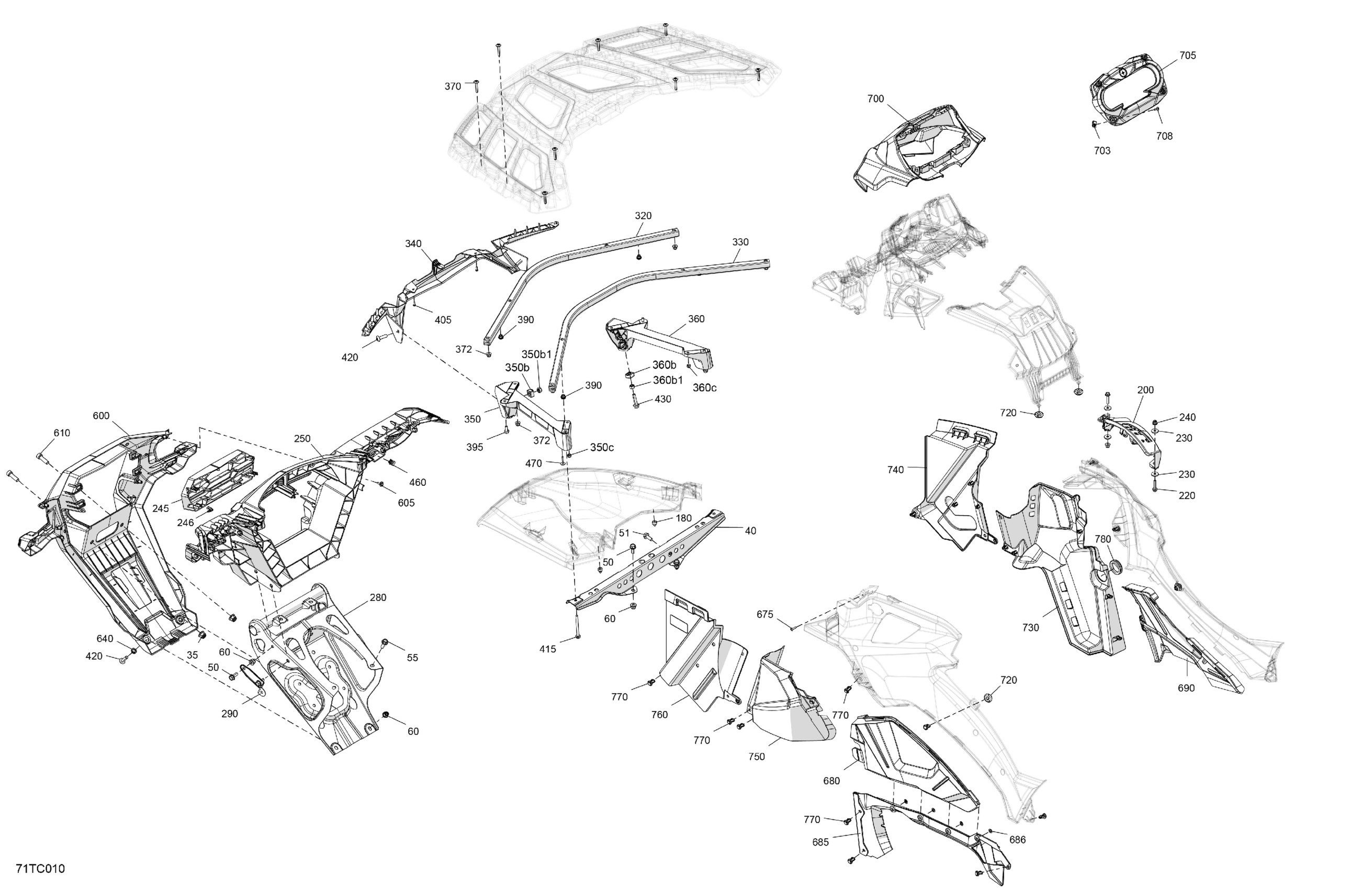

Can-Am 006 - Outlander T MAX 650 EFI - XTP - T Regulation, 2023 07- Body - Front Section Diagram

Hex. Flange Elastic Nut M10

233201434

$2.09

Cargo Rack Center Support

705006812

$61.99

Hex. Flange Screw M8 X 20

207682044

$1.15

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

Hex. Flange Elastic Nut M8

233281414

$1.47

Rubber Bumper

293830005

$8.09

Shift Lever Grille Kit

715008678

$26.99

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

Flat Washer

224061201

$1.37

Flange Elastic Nut M6

233261434

$4.44

Air Inlet Grille

705016613

$26.99

Clip

517306478

$1.09

Fascia

705016526

$119.99

Front Bumper Support

705016893

$349.99

Lower Fender Support

705004565

$6.89

Sectional Bent Tube

705016640

$38.99

Sectional Bent Tube

705016641

$42.99

Lugage Rack Moulding

705004523

$24.49

LH Support Luggage Rack Ass'y | Includes 33 to 35

705011553

$19.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hex. Elastic Stop Nut M6

232561600

$1.15

RH Support Luggage Rack Ass'y | Includes 36 to 38

705011555

$21.99

Elastic Nut Housing M8 | Included 10a6 to 10a6a

269501943

$6.67

Hex. Elastic Nut M8 Brass

232581200

$2.22

Hex. Elastic Stop Nut M6

232561600

$1.15

Black, Torx Screw M6 X 35

250000646

$0.98

Flange Elastic Nut M6

233261434

$4.44

Insert Half Hex Body M6 x 1.0

250100199

$3.19

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

Screw K40 X 10

241140060

$1.48

Hex. Flange Screw M6x70, Scotch Grip

207567044

$2.11

Torx Screw M8 X 30

250000886

$2.11

Hex. Flange Screw M8 X 35

207683544

$1.69

Edge Clip

517302785

$0.88

Plastite Screw Type K-40, M4 X 25

250000101

$3.49

Front Skid Plate

705016528

$45.49

Screw M4 X 16

250000725

$3.49

Socket Screw M10 x 30 | XT

205003044

$3.17

Ring

705004497

$5.19

Phillips Screw K40 X 16

250000723

$0.98

Deflector Body Panel Kit

715007294

$55.99

Deflector Body Panel

705014061

$43.99

Push Nut

732610072

$2.19

Engine Cover

705003444

$22.99

Gauge Support

705013984

$19.99

Extruded Panel Nut M4 X 0.7

250100143

$8.49

Front Gauge Trim

705013985

$22.49

Torx Head Screw M4 X 16

250000797

$2.09

Grommet

705003264

$4.09

RH Wheel Arch Protector

705013925

$19.04

RH Front Wheel Arch Protector

705017002

$16.85

LH Wheel Arch Protector

705013924

$19.04

LH Front Wheel Arch Protector

705017001

$16.85

Tuflok Plastic Rivet

293150230

$1.47

Rubber Cover

293250242

$6.99
