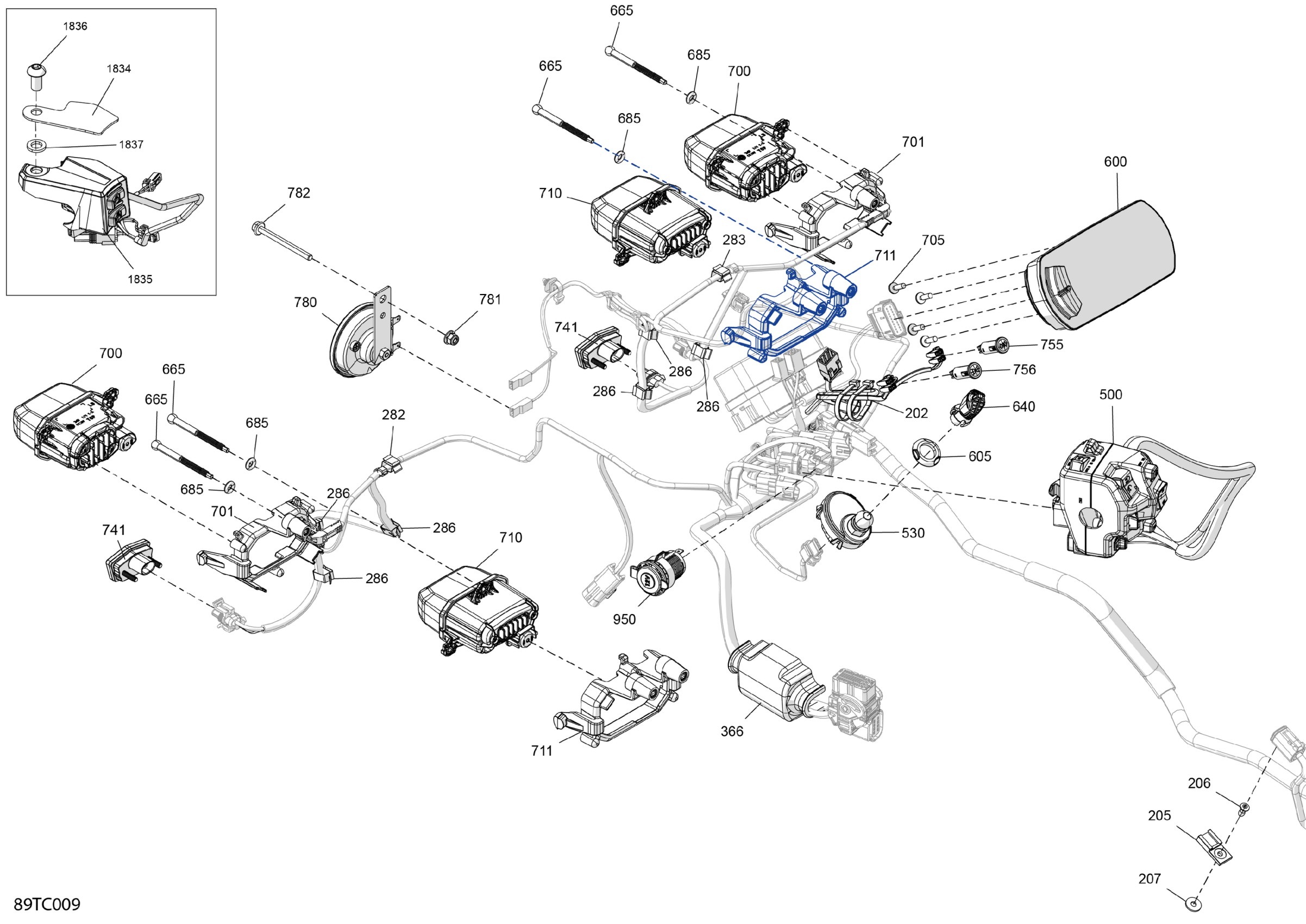

Can-Am 002 - Outlander T 650 EFI - XU+ - T Regulation, 2023 08- Electric - Front Section Diagram

Description

Price

202

Tell Tale Wiring Harness

710007825

$24.99

205

Clip

270000141

$11.49

206

Pop Rivet 3/16"

390402300

$0.75

207

Washer | DS 650 X

391301600

$0.48

282

Clip

414227300

$1.67

283

Clip

414227300

$1.67

286

Clip

414227300

$1.67

366

Soft Protection Sleeve

710007255

$2.54

500

LH Front Switch Housing

710006672

$248.99

530

Terminal Dess One-Wire

515179240

$83.49

600

Multifunction Gauge Compact Mono

710008108

$409.99

605

Safety Nut (DESS Switch)

278002963

$3.28

640

Grey Key RFID | Except Model Europe, Except T3

710004964

$63.49

665

Ajustment Screw

710005837

$6.35

685

O-Ring

293300192

$4.92

700

Low Beam Light

710008088

$139.99

701

Exterior Headlight Support

710008396

$26.99

705

Torx Screw K50 X 16

250000720

$1.69

710

HIgh Beam Light

710006910

$129.99

711

Interior Headlight Support

710008394

$9.09

741

Amber Light Turn Signal

710007217

$17.99

755

Pilot Light Trailer Flasher

710005766

$9.29

756

Pilot Light Tail Lamp

710005767

$9.39

780

Horn

710004791

$38.99

781

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

782

Hex. Flange Screw M6 X 70

207667044

$0.85

784

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

785

Hex. Flange Screw M6 X 16

207661644

$0.74

950

DC Outlet

710001248

$37.99

1834

Top Plate

715004008

$21.99

1835

Multifonction Housing Ass'y

710004990

$154.99

1836

Screw M10 X1.25 X 20 BHCS S.Grip

710005908

$9.69

1837

Washer

503192496

$0.77
