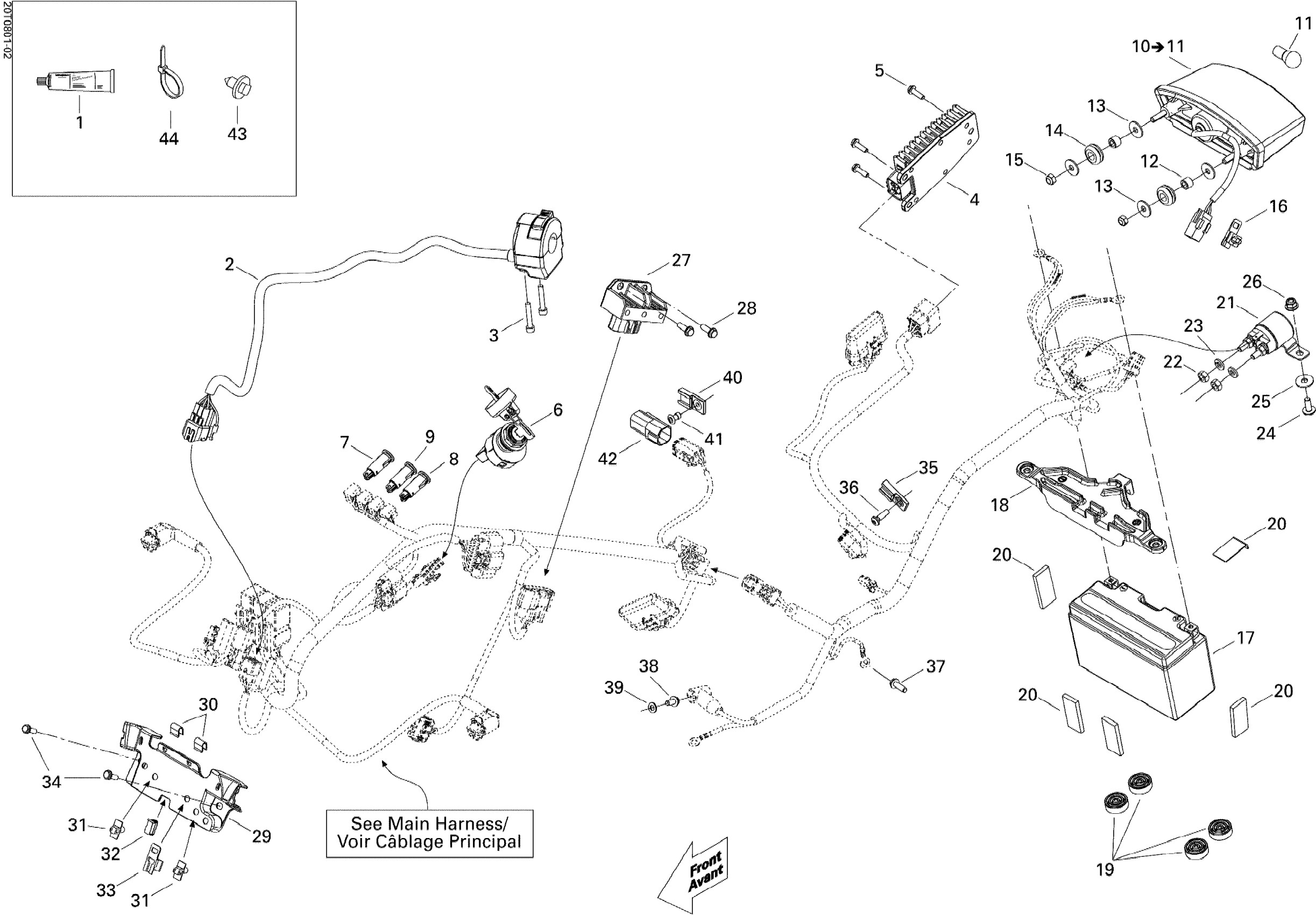

Can-Am DS 450 X, 2008 10- Electrical System Diagram

#

Description
Price

1

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

2

Inter.Multi.Fon*Switch-M.Fuct.

710001762

$132.49

3

SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership

205053088

Unavailable

4

Rectifier

710000803

$82.49

5

Hex. Flange Screw, Scotch Grip

207551634

$2.00

6

Ignition Switch With Key

710002323

$86.99

7

PILOT LAMP - Call your local BRP dealership

710002527

Unavailable

8

PILOT LAMP - Call your local BRP dealership

710002526

Unavailable

9

PILOT LAMP, NEUTRAL - Call your local BRP dealership

710001012

Unavailable

10

Tail Light Ass'y | Includes 19 to 20

710001041

$62.49

11

Bulb

520000758

$9.10

12

SPACER - Call your local BRP dealership

293900089

Unavailable

13

Flat Washer

250200082

$0.42

14

Grommet

709000582

$4.69

15

Elastic Stop Nut M6

232561434

$1.99

16

Housing Support

515175283

$9.19

17

Battery 6,5A

715500305

$128.81

18

BATTERY SUPPORT - Call your local BRP dealership

710000963

Unavailable

19

Rubber Stopper

708000506

$7.55

20

RUBBER PAD - Call your local BRP dealership

293830129

Unavailable

21

Starter Relay

710007777

$48.49

22

Hex. Nut M6

232061600

$1.15

23

Lock Washer Helical M6

234161601

$1.15

24

Torx Screw M6 X 16

250000223

$2.11

25

Flat Washer

250200097

$2.11

26

Flange Elastic Nut M6

233261434

$4.44

27

Light Control

710001028

Unavailable

28

Hex. Flange Screw, Scotch Grip

207551634

$2.00

29

Housing Support

710001074

Unavailable

30

Clip

414479100

$1.90

31

Mount Dart

293730040

$1.04

32

CLIP - Call your local BRP dealership

409014200

Unavailable

33

Housing Support

515175283

$9.19

34

Hex. Flange Screw, Scotch Grip

207551634

$2.00

35

Clip

515175821

$10.99

36

Torx Screw K50 X 16

250000720

$1.69

37

Hex. Flange Screw, Scotch Grip

207551634

$2.00

38

SCREW-HEX.FLANGE DIN.6921 S.GRIP - Call your local BRP dealership

207551034

Unavailable

39

Flat Washer

234051430

$2.32

40

Clip

270000141

$11.49

41

Avex Rivet

390909200

$0.30

42

Diagnostic Connector

278002704

$19.49

43

Mount Dart

293730040

$1.04

44

Tie Wrap 142 mm

293750002

$1.25

44

Tie-Rap 180 mm

414115200

$0.11

44

Tie Wrap 368 mm

293750008

$1.04

44

Tie-rap 627 mm

293750041

$0.93

45

Neoprene Seal (1PAC=3M)

219704364

$27.49
