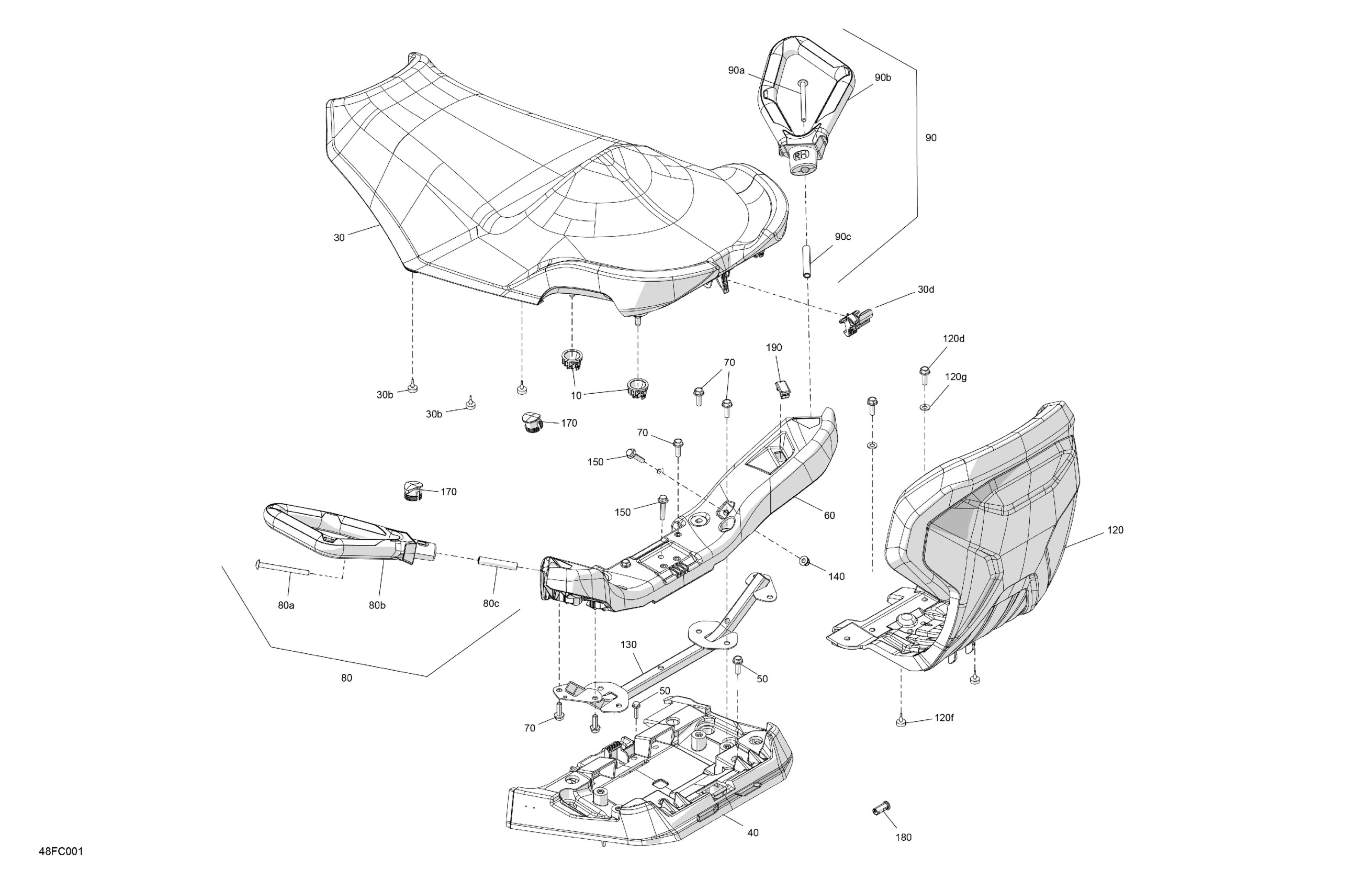

Can-Am 004 - Outlander T PRO MAX XU HD7 - T Regulation, 2023 07- Body - Seat Diagram

Description

Price

Seat Stopper

708003609

$10.49

2 Places Seat | Includes 30 to 30b

708003927

$499.99

30b

Rubber Stopper

708000759

$4.19

30d

Seat Latch

708003926

$6.19

Seat Anchorage

708003907

$109.99

Hex. Flange Screw M6 X 25

207662544

$0.64

Handle Support

708003168

$77.99

Hex. Flange Screw M8 X 25

207682544

$1.35

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

80a

Torx Truss M8 X 90

250000806

$7.51

80b

LH Passenger Seat Handle Kit | Includes 28, 44

703500806

$66.49

80c

Sleeve

705006129

$14.99

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

90a

Torx Truss M8 X 90

250000806

$7.51

90b

RH Passenger Seat Handle Kit | Includes 28, 44

703500807

$66.49

90c

Sleeve

705006129

$14.99

120

Backrest Support Ass'y | Includes 120 to 120g

708004004

$459.99

120d

Hex. Flange Screw M8 X 25

207682544

$1.35

120f

Rubber Stopper

708000759

$4.19

120g

Flat Washer 8 mm

234081410

$0.83

130

Handle Support Reinforcement Ass'y

708003529

$38.99

140

Hex. Flange Elastic Nut M8

233281414

$1.47

150

Hex. Flange Screw M8 X 40

207684054

$2.11

160

Cap

708003592

$1.39

170

Pilot Lamp Cap

710003910

$4.29

180

Insert

708001511

$4.29

190

Flat Washer 8 mm

234081410

$0.83
