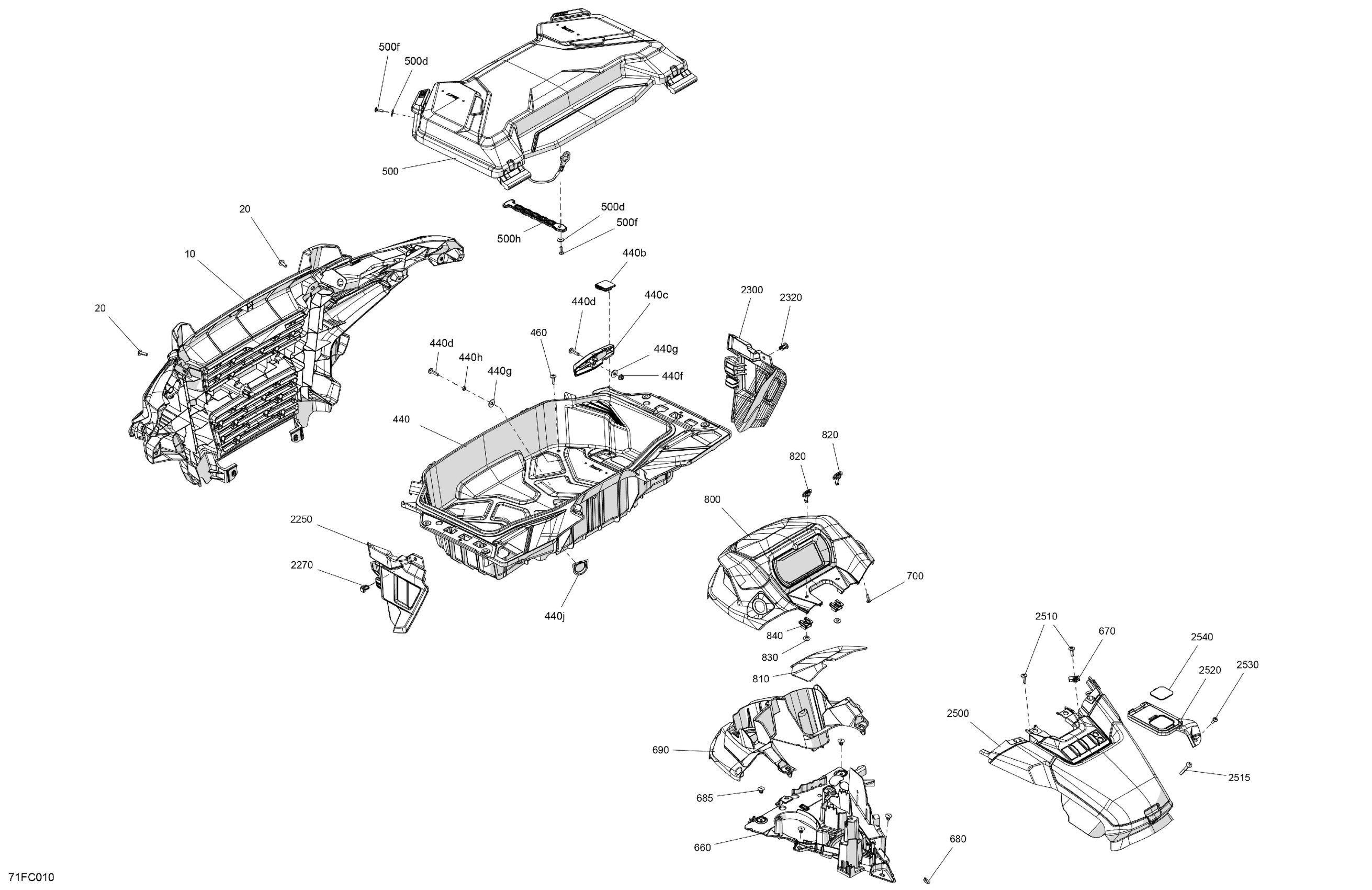

Can-Am 004 - Outlander T PRO MAX XU HD7 - T Regulation, 2023 07- Body - Front Section Diagram

Description

Price

Front Grille

705016722

$89.99

Screw Torx M6 X 20

250001257

$1.68

440

Front Storage Box Kit | Includes 440 to 440j

715009556

$229.99

440b

Box Cap

705015244

$9.49

440c

Cam

705018509

$11.99

440d

Torx Truss Screw M6 X 25

250000807

$2.11

440f

Hex. Flange Nut M6

233161414

$2.11

440g

Flat Washer

250200097

$2.11

440h

Bushing

708300737

$5.99

440j

Body Cap

705014660

$6.39

460

Screw Torx M6 X 20

250001257

$1.68

500

Front Box Cover Kit | Includes 500 to 500h

715009587

$80.99

500d

Washer M5

250200025

$0.74

500f

Torx Screw K50 X 16

250000720

$1.69

500h

Retaining Strap

708303885

$3.06

660

Multipurpose Support

705013880

$15.49

670

Panel Nut M6 X 1.0

250100198

$2.11

680

Clip

414479100

$1.90

685

Black, Pop Rivet 3/16 X ,425

293150291

$0.56

690

Dashboard Support

705014887

$45.99

700

Torx Screw K50 X 16

250000720

$1.69

800

Dashboard

705012914

$46.99

810

Foam

705015852

$9.19

820

Quarter Turn

708400278

$4.29

830

Washer

708400286

$3.99

840

Clip

708400285

$3.99

2250

LH Front Radiator Deflector

705015256

$19.99

2270

Tuflok Plastic Rivet

293150230

$1.47

2300

RH Front Radiator Deflector

705015257

$19.99

2320

Tuflok Plastic Rivet

293150230

$1.47

2500

Glove Box Ass'y

705018584

Unavailable

2510

Torx Screw M6 X 20

250000712

$2.11

2515

Torx Truss Screw M6 X 50

250000749

$3.17

2520

Smartphone Support Ass'y

705017807

$38.99

2530

Torx Screw K50 X 16

250000720

$1.69

2540

Plate Ass'y

710009102

Unavailable
