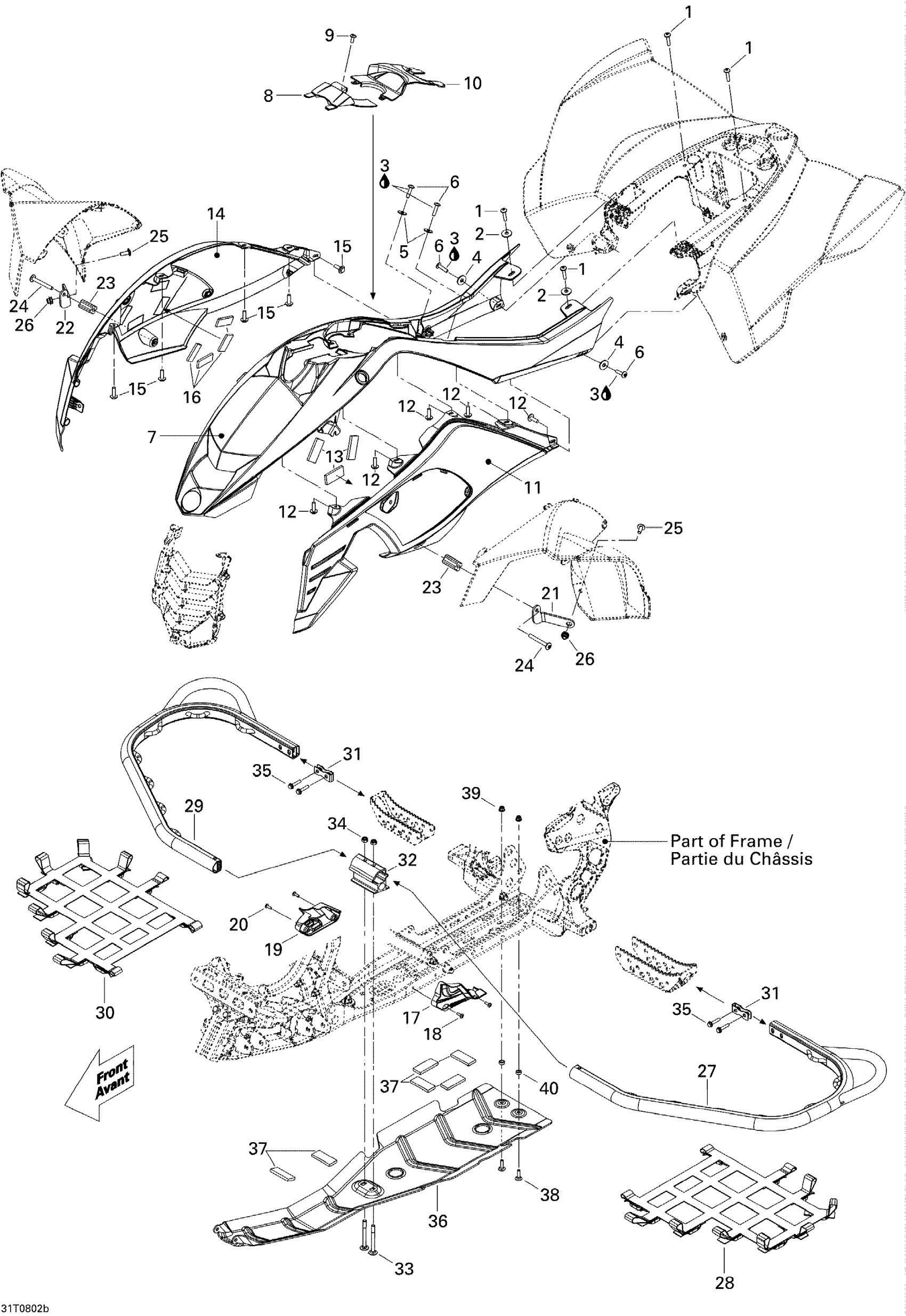

Can-Am DS 450 X, 2008 09- Body And Accessories 2 Diagram

#

Description
Price

1

Torx Screw M5 X 25

250000762

$2.11

2

Flat Washer

250200097

$2.11

3

Loctite 243, 10 ml

293800060

$21.49

4

Flat Washer

250200039

$0.74

5

Flat Washer

250200097

$2.11

6

Torx Screw M6 x 25

250000284

$2.11

7

Front fascia

705002157

Unavailable

8

DASH-BOARD - Call your local BRP dealership

705001758

Unavailable

9

Torx Screw M6 X 16

250000223

$2.11

10

ACCESS COVER - Call your local BRP dealership

705002288

Unavailable

11

LH SIDE PANNEL - Call your local BRP dealership

705002961

Unavailable

12

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

13

Gasket

705002447

$3.59

14

RH SIDE PANNEL - Call your local BRP dealership

705002962

Unavailable

15

Hex. Plastic Screw M4.8 X 16

243141630

$2.11

16

Gasket

705002447

$3.59

17

LH ENGINE MOULDING - Call your local BRP dealership

705002631

Unavailable

18

Torx Screw M6 X 20

250000722

$1.68

19

RH Engine Moulding

705002632

Unavailable

20

Torx Screw M6 X 20

250000722

$1.68

21

LH FENDER SUPPORT - Call your local BRP dealership

705002695

Unavailable

22

RH FENDER SUPPORT - Call your local BRP dealership

705002696

Unavailable

23

BUSHING - Call your local BRP dealership

705002697

Unavailable

24

Torx Truss M6 X 50

250000868

$2.11

25

Torx Screw M6 X 16

250000223

$2.11

26

Threaded Insert M6 X 1.0

250100242

Unavailable

27

LH NERF BAR - Call your local BRP dealership

705002573

Unavailable

28

LH NET - Call your local BRP dealership

705001952

Unavailable

29

RH NERF BAR - Call your local BRP dealership

705002574

Unavailable

30

RH NET - Call your local BRP dealership

705001953

Unavailable

31

ATTACHMENT PLATE - Call your local BRP dealership

705002646

Unavailable

32

NERF BAR HOLDER - Call your local BRP dealership

705003761

Unavailable

33

CARRIAGE BOLT M8 X 80 - Call your local BRP dealership

207788034

Unavailable

34

Elastic Stop Nut

232581434

$2.00

35

Hex. Flange Screw M8 X 25

207682534

$2.11

36

SKID PLATE - Call your local BRP dealership

705201545

Unavailable

37

PROTECTOR - Call your local BRP dealership

293830083

Unavailable

38

CARRIAGE BOLT M6 X 25 - Call your local BRP dealership

207762534

Unavailable

39

Flange Elastic Nut M6

233261434

$4.44

40

BUSHING - Call your local BRP dealership

293900067

Unavailable
