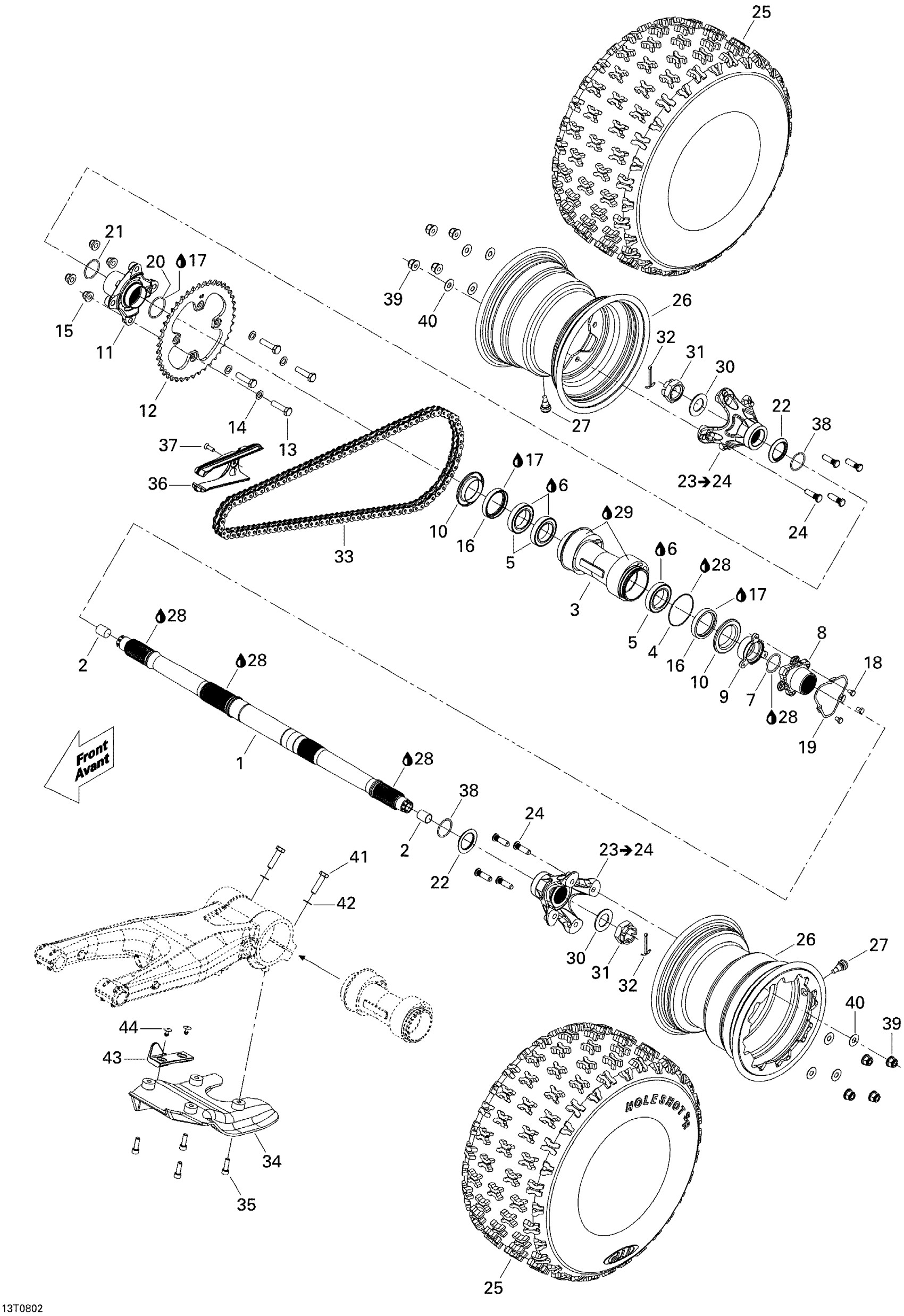

Can-Am DS 450 X, 2008 08- Drive System, Rear Diagram

#

Description
Price

1

DRIVE AXLE - Call your local BRP dealership

705501079

Unavailable

2

CAP - Call your local BRP dealership

293730044

Unavailable

3

CHAIN TIGHTENER - Call your local BRP dealership

705500644

Unavailable

4

O-Ring

293300115

$3.77

5

Ball Bearing

293350053

$37.99

6

Loctite 609, 10 ml

413703100

$26.99

7

O-RING - Call your local BRP dealership

293300089

Unavailable

8

Brake Disc Hub

705500646

$96.49

9

NUT M40 - Call your local BRP dealership

705500649

Unavailable

10

Wear Ring

705500648

$18.54

11

Wheel Hub

705501161

$132.49

12

SPROCKET KIT, 42 TEETH - Call your local BRP dealership

715000592

Unavailable

13

Hex. Screw M10 X 40

207004036

$1.90

14

Flat Washer

250200084

$3.38

15

Hex. Flange Elastic Nut M10

233201436

$2.11

16

Oil Seal

293250164

$14.28

17

Synthetic Grease, 400 G

293550010

Unavailable

18

HEX. SCREW M6 X 10 - Call your local BRP dealership

207161034

Unavailable

19

LOCK WASHER - Call your local BRP dealership

705500669

Unavailable

20

O-RING - Call your local BRP dealership

293300099

Unavailable

21

RING RETAINER - Call your local BRP dealership

705500108

$7.19

22

SUPPORT RING - Call your local BRP dealership

705500663

Unavailable

23

Rear Wheel Hub Ass'y | Includes 23 to 24

705501075

$132.49

24

Wheel Stud

250000138

$11.05

25

TIRE_20X10R9 REAR - Call your local BRP dealership

705500787

Unavailable

26

RIM_9 INCH X 8,5 - Call your local BRP dealership

705500781

Unavailable

27

Rim Valve With Cap

705400193

$8.69

28

Graisse *Grease

293550062

$15.99

29

LUBRICANT LOCTITE LB 8150 236ML - Call your local BRP dealership

219704461

Unavailable

30

FLAT WASHER - Call your local BRP dealership

250200087

Unavailable

31

Hex. Castlellated Nut M27

250100093

$13.18

32

COTTER PIN - Call your local BRP dealership

250400028

Unavailable

33

Chain

705500948

$110.99

34

REAR SKID PLATE - Call your local BRP dealership

705500889

Unavailable

35

SOCKET HEAD SCREW M8 X 25 - Call your local BRP dealership

205082534

Unavailable

36

Chain Slider

705501422

$18.54

37

Socket Head Screw M6, Scotch Grip

205862034

$2.11

38

RING RETAINER - Call your local BRP dealership

705500065

Unavailable

39

Flange Nut M10

250100105

$6.89

40

Flat Washer

250200080

$2.11

41

Hex. Screw M10 X 1.5 X 40

207004034

$2.11

42

Flat Washer

250200084

$3.38

43

CHAIN SLIDER - Call your local BRP dealership

705500923

Unavailable

44

Pop Rivet 3/16" | DS 650 X

293150104

$1.09
