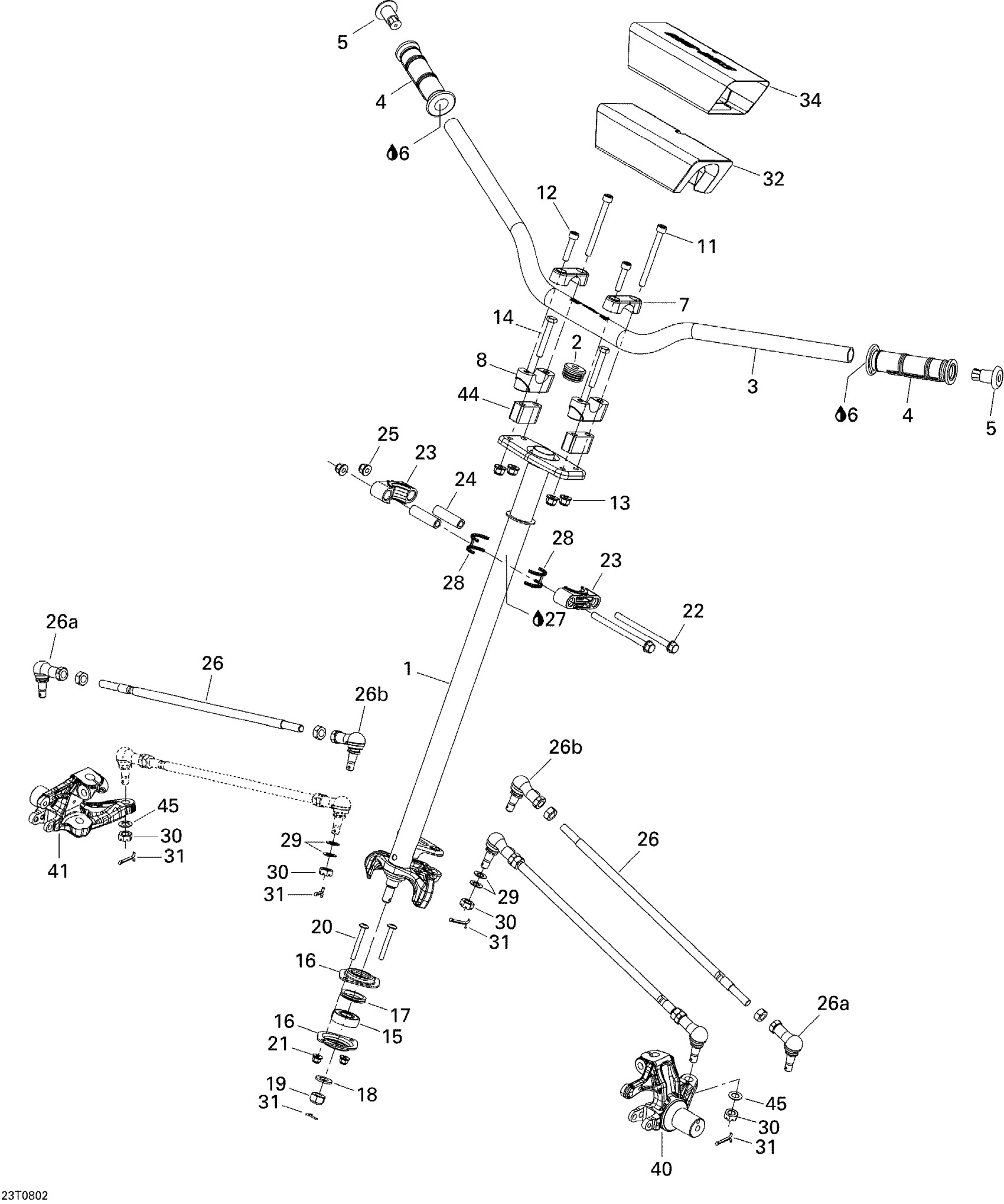

Can-Am DS 450 X, 2008 07- Steering Diagram

STEERING COLUMN - Call your local BRP dealership

709400802

Unavailable

Cap

293730045

Unavailable

HANDLE BAR - Call your local BRP dealership

709400495

Unavailable

Handle Grip

709400493

$14.83

END PIECE - Call your local BRP dealership

709400627

Unavailable

Loctite 406, 7 Oz

293800100

$36.99

Support

709400496

$22.49

Lower Mounting Clamp

709402750

$25.99

SCREW-SOCKET HD.DIN.912 - Call your local BRP dealership

205088534

Unavailable

Socket Head Screw

205083534

$2.11

Hex. Flange Elastic Nut M8

233281434

$2.11

HEX. SCREW M8 X 55 - Call your local BRP dealership

207085560

Unavailable

Ball Bearing

709400439

$19.49

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

Seal

293250177

$7.29

Flat Washer

234021430

$2.11

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

Torx Screw M6 X 50

250000317

$2.11

Flange Elastic Nut M6

233261434

$4.44

Hex. Flange Screw M8 X 110

230681034

$4.44

Half Bushing

709400471

$14.30

BUSHING - Call your local BRP dealership

709400072

Unavailable

Hex. Flange Elastic Nut M8

233281434

$2.11

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

Synthetic Grease, 400 G

293550010

Unavailable

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

Flat Washer

250200084

$3.38

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

Cotter Pin

250400034

$2.11

Foam

709400422

$17.49

Cover

709400423

$33.99

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

EXTENSION - Call your local BRP dealership

709400385

Unavailable

Flat Washer

250200084

$3.38
