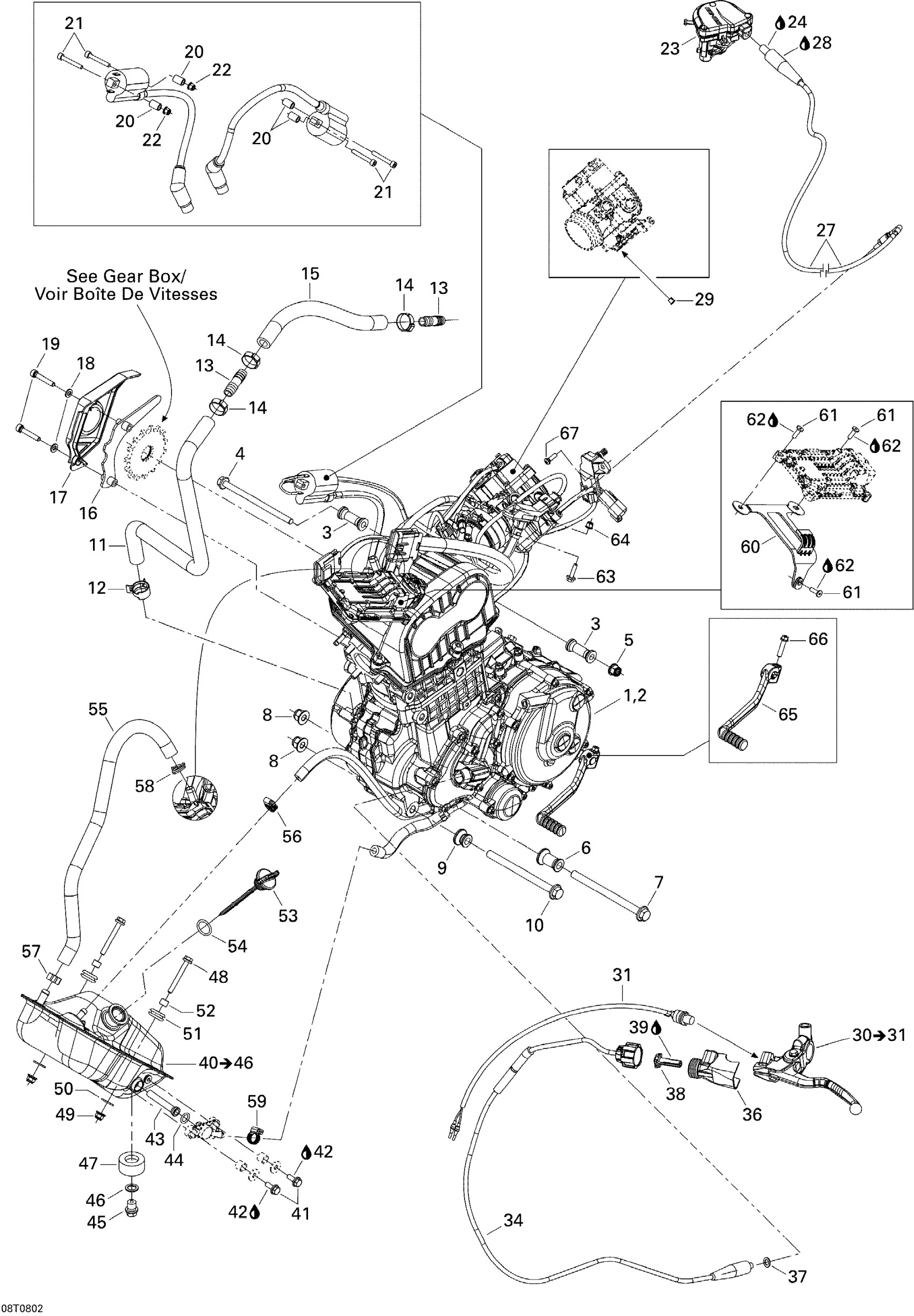

Can-Am DS 450 X, 2008 01- Engine Diagram

#

Description
Price

1

Not Available As Spare Part - Friction Washer

Unavailable

2

LONG BLOCK, 449 ENGINE - Call your local BRP dealership

420044901

Unavailable

3

SPACER - Call your local BRP dealership

293900071

Unavailable

4

Hex. Flange Screw M8 X 130

230683034

$7.51

5

Hex. Flange Elastic Nut M8

233281434

$2.11

6

SPACER - Call your local BRP dealership

293900072

Unavailable

7

HEX. FLANGED SCREW M10 X 135 - Call your local BRP dealership

230603536

Unavailable

8

Hex. Flange Elastic Nut M10

233201434

$2.09

9

SPACER - Call your local BRP dealership

293900074

Unavailable

10

HEX. FLANGED SCREW M10 X 130 - Call your local BRP dealership

230603036

Unavailable

11

Hose

707000502

$21.99

12

Norma Clamp

293650110

$4.54

13

CONNECTOR - Call your local BRP dealership

293710119

Unavailable

14

Oetiker Clamp

293650012

$7.49

15

HOSE 12 MM - Call your local BRP dealership

707000537

Unavailable

16

CHAIN GUARD - Call your local BRP dealership

707000464

Unavailable

17

SPROCKET COVER - Call your local BRP dealership

707000425

Unavailable

18

Flat Washer M6

234061430

$2.11

19

SOCKET HEAD SCREW M6 X 35, SCOTCH GRIP - Call your local BRP dealership

205563536

Unavailable

20

Sleeve

293900078

$13.71

21

SOCKET HEAD SCREW M5 X 35 - Call your local BRP dealership

205053534

Unavailable

22

Flange Elastic Nut M5

233251434

$2.00

23

THROTTLE HANDLE - Call your local BRP dealership

707000440

Unavailable

24

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

27

THROTTLE CABLE - Call your local BRP dealership

707000439

Unavailable

28

CABLE LUBRICANT, 400 G - Call your local BRP dealership

293600041

Unavailable

29

Cable Guide

707000434

$11.60

30

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 30 to 31

707000469

Unavailable

31

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

Unavailable

32

HANDLE LEVER ASS'Y - Call your local BRP dealership | Includes 32 to 33, Europe

707000592

Unavailable

33

LEVER SHIFTER SWITCH - Call your local BRP dealership

707000183

Unavailable

34

Clutch Cable

707000422

$51.99

35

Clutch Cable

707000422

$51.99

36

BOOT - Call your local BRP dealership

293830122

$14.99

37

Washer

504082900

$2.64

38

SCREW - Call your local BRP dealership

707000602

Unavailable

39

Was 293550004 Dielectric Grease, 150 g

219704453

$38.99

40

OIL TANK ASS'Y - Call your local BRP dealership | Includes 40 to 46

707000806

Unavailable

41

Hex. Flange Screw M6 X 20

207662034

$2.11

42

Loctite 243, 10 ml

293800060

$21.49

43

STRAINER - Call your local BRP dealership

519000144

Unavailable

44

O-Ring

293300128

$6.35

45

Plug

250500010

$61.49

46

Copper Washer

250200061

$2.61

47

RUBBER STOPPER - Call your local BRP dealership

705001678

Unavailable

48

HEX. FLANGED SCREW M6 X 50 - Call your local BRP dealership

207665034

Unavailable

49

Flange Elastic Nut M6

233261434

$4.44

50

Flat Washer

250200082

$0.42

51

Grommet

293720062

$5.39

52

SPACER - Call your local BRP dealership

293900089

Unavailable

53

Oil Cap

707000526

$13.75

54

O-Ring

709000089

$15.89

55

HOSE - Call your local BRP dealership

707000544

Unavailable

56

Tridon Gear Clamp

293650171

$3.09

57

Oetiker Clamp

293650011

$3.09

58

ROTOCLIP CLAMP - Call your local BRP dealership

293650180

Unavailable

59

Tridon Gear Clamp

293650171

$3.09

60

MODULE SUPPORT - Call your local BRP dealership

710000972

Unavailable

61

SOCKET HEAD SCREW M5 X 16 - Call your local BRP dealership

250000295

Unavailable

62

Loctite 243, 10 ml

293800060

$21.49

63

HEX. FLANGED SCREW M5 X 20 - Call your local BRP dealership

207652034

$1.99

64

Flange Elastic Nut M5

233251434

$2.00

65

Gearshift Pedal

420248540

$94.49

66

Torx Flange Screw M6 X 25

420440234

$3.06

67

Torx Screw K50 X 16

250000720

$1.69
