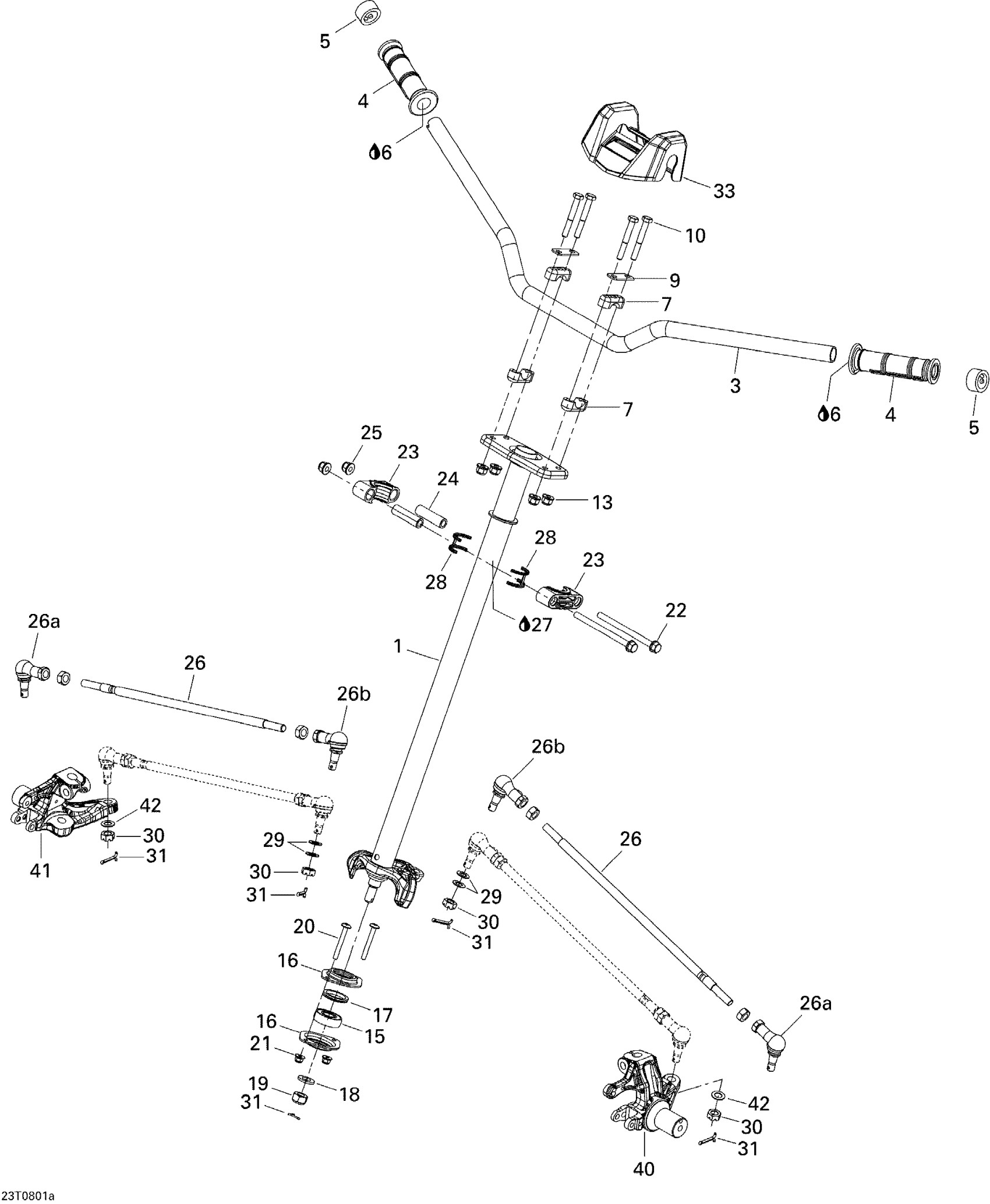

Can-Am DS 450, 2008 07- Steering Diagram

#

Description
Price

1

STEERING COLUMN - Call your local BRP dealership

709400802

Unavailable

3

HANDLE BAR - Call your local BRP dealership

709400369

Unavailable

4

Handle Grip

709400493

$14.83

5

END-PIECE - Call your local BRP dealership | DS 650

709400189

Unavailable

6

Loctite 406, 7 Oz

293800100

$36.99

7

Steering Support

709400919

$22.49

9

Stiffner

709400509

$4.69

10

SCREW-HEX.CAP DIN.931 - Call your local BRP dealership

207086034

Unavailable

13

Hex. Flange Elastic Nut M8

233281434

$2.11

15

Ball Bearing

709400439

$19.49

16

THRUST WASHER - Call your local BRP dealership

709400468

Unavailable

17

Seal

293250177

$7.29

18

Flat Washer

234021430

$2.11

19

NUT-STOP ELASTIC DIN.985 - Call your local BRP dealership

250100090

Unavailable

20

Torx Screw M6 X 50

250000317

$2.11

21

Flange Elastic Nut M6

233261434

$4.44

22

Hex. Flange Screw M8 X 110

230681034

$4.44

23

Half Bushing

709400471

$14.30

24

BUSHING - Call your local BRP dealership

709400072

Unavailable

25

Hex. Flange Elastic Nut M8

233281434

$2.11

26

ROD_TIE ASSY - Call your local BRP dealership

709400352

Unavailable

26a

BALL JOINT - Call your local BRP dealership

715900053

Unavailable

26b

BALL JOINT - Call your local BRP dealership

715900052

Unavailable

27

Synthetic Grease, 400 G

293550010

Unavailable

28

HALF-SEAL - Call your local BRP dealership

293300120

$6.69

29

Flat Washer

250200084

$3.38

30

CASTLE NUT - Call your local BRP dealership

250100094

Unavailable

31

Cotter Pin

250400034

$2.11

33

STEERING COVER - Call your local BRP dealership

709400452

Unavailable

40

LH KNUCKLE - Call your local BRP dealership

709400346

Unavailable

41

RH KNUCKLE - Call your local BRP dealership

709400348

Unavailable

42

Flat Washer

250200084

$3.38
