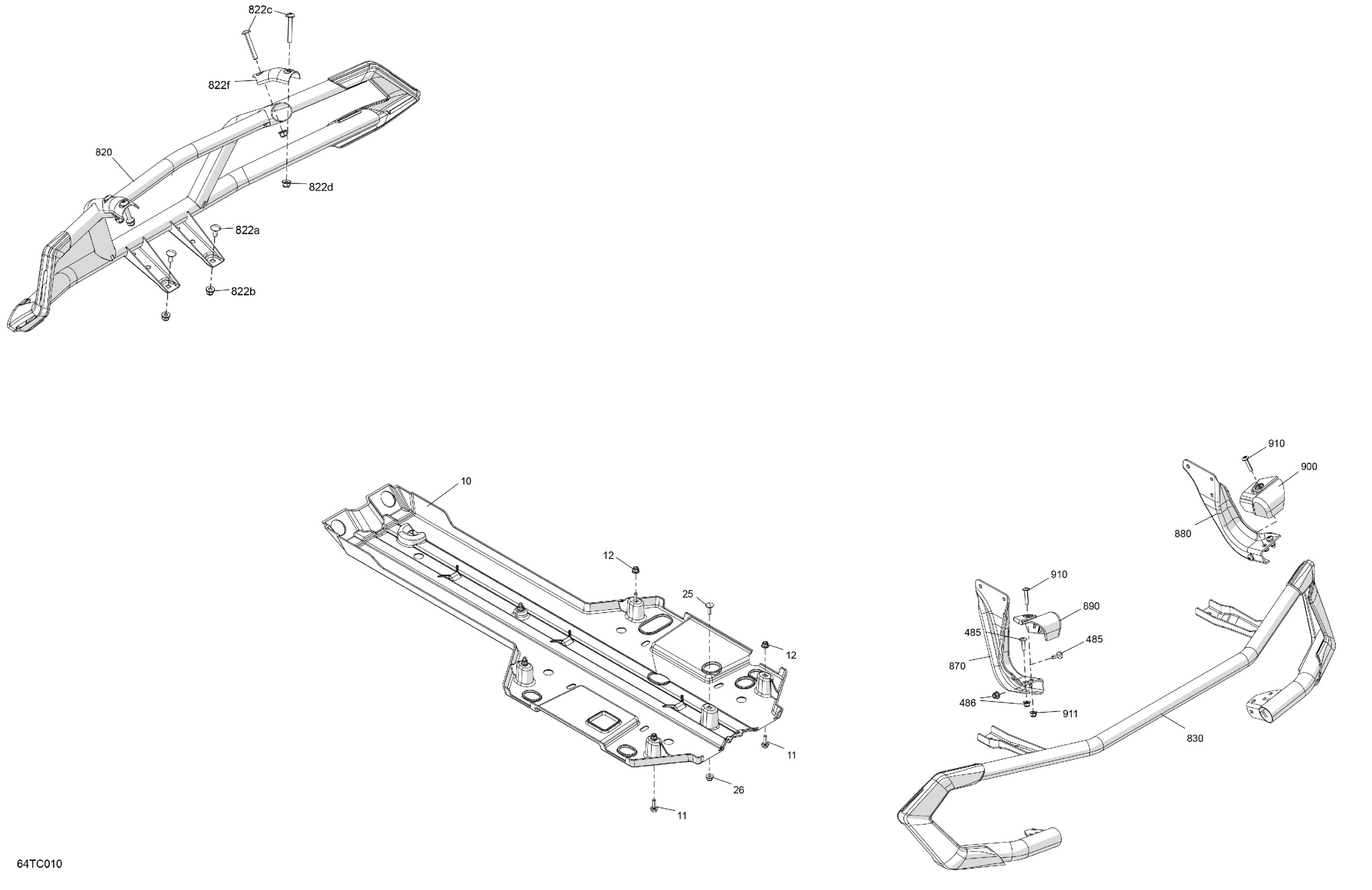

Can-Am 004 - Outlander 1000R EFI - XMR - CE, 2023 07- Body - Skid Plate and Bumper Diagram

Protective Plate Kit

715002374

$64.49

Hex. Flange Screw M6 X 20

207662054

$1.01

Flange Elastic Nut M6

233261434

$4.44

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Flange Elastic Nut M6

233261434

$4.44

Carriage Bolt M6 X 20 | DS 650 X

207762044

$1.58

Flange Elastic Nut M6

233261434

$4.44

Carbon Black, Front Bumper | Includes 820 to 820a.m

705017373

$291.49

Carriage Bolt, M8 X 20

207782044

$1.90

Hex. Flange Elastic Nut M8

233281414

$1.47

Torx Screw M8 X 55

250000535

$3.17

Elastic Flange Nut M8

233281464

$1.01

Carbon Black, Upper Mounting Clamp | Includes 822e to 822e.a

705017377

$44.99

Carbon Black, Rear Bumper | Includes 830 to 830a.k

705017382

$291.49

LH Rear Bracket | XT

705008164

$37.99

RH Rear Bracket | XT

705008165

$37.99

LH Rear Bumper Trim

705017676

$7.19

RH Rear Bumper Trim

705017677

$7.19

Stainless, Torx Screw M6 X 30

250000842

$2.11

Flange Elastic Nut M6

233261434

$4.44
