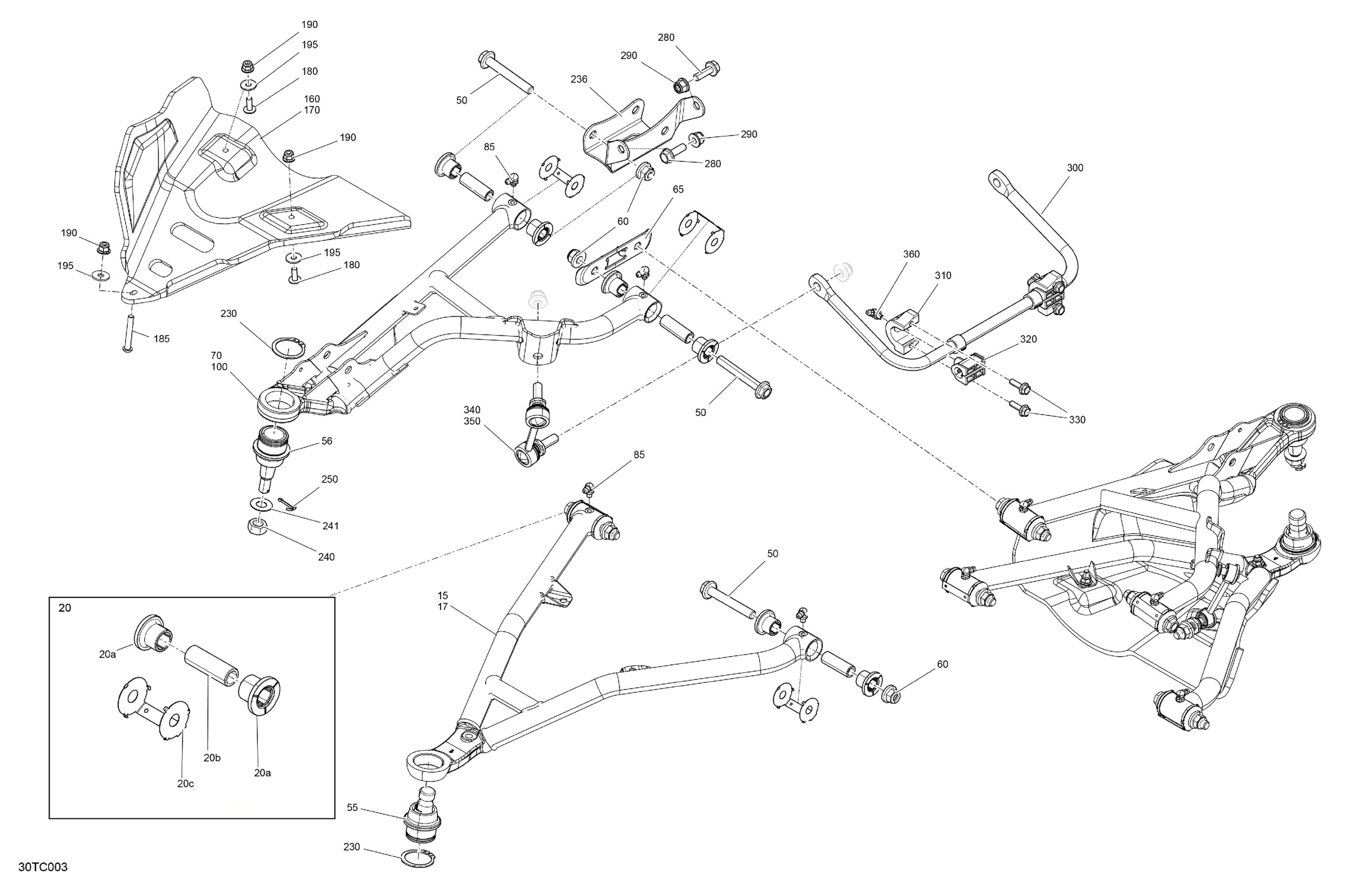

Can-Am 003 - Outlander 1000R EFI - XXC - CE, 2023 05- Suspension - Front Components Diagram

LH Lower Suspension Arm

706204637

$158.99

RH Lower Suspension Arm

706204638

$158.99

Suspension Arm Bushing Kit | Includes 4

703500875

$16.33

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Not Available As Spare Parts

XXX

Unavailable

Hex. Flange Screw M10 X 70

207607046

$2.96

Ball Joint

706202045

$35.99

Ball Joint

706202044

$35.99

Hex. Flange Elastic Nut M10

233201436

$2.11

Front Suspension Cross Plate

706200998

$5.09

RH Upper Suspension Arm

706204572

$158.99

Grease Fitting 90°

293550056

$1.15

LH Upper Suspension Arm

706204571

$158.99

LH Front A-Arm Protector | Hunting Edition

715004822

$159.49

LH Front A-Arm Protector | Hunting Edition

715004822

$159.49

Torx Screw M6 X 25

250000758

$2.11

Screw-torx Button Head M6 X 40

235564054

$6.89

Hex. Flange Elastic Nut M6

233261494

$1.58

Stainless Steel Flat Washer

234062670

$2.11

Circlip

293370035

$2.64

Upper Front Holder

705203247

$15.99

Nut M12

250100099

$2.09

Hardened Washer

706200281

$2.85

Hex. Flange Screw M10 X 60

207606044

$3.38

Hex. Flange Elastic Nut M10

233201434

$2.09

Cotter Pin

211400017

$0.33

Hex. Flange Screw M8 X 25

207682544

$1.35

Hex. Flange Elastic Nut M8

233281414

$1.47

Sway Bar

706203715

$126.99

Clamp

706203929

$25.99

Stabilizer Bar Bushing

706204796

$12.65

Hex. Flange Screw S.Grip M6 X 20

207562054

$2.11

LH Sway Bar Link

706203290

$72.99

RH Sway Bar Link

706203291

$72.99

Grease Fitting 90°

293550056

$1.15
