Description

Price

10

Radiator

709200286

$476.99

20

Fan Ass'y

709200567

$284.99

30

Support Ass'y

709200556

$338.99

30c

Rivet 3/16"

293150102

$0.70

30d

Washer

517124300

$0.19

30f

Rubber Washer 5 mm

250200024

$2.19

30h

Panel Nut M6 X 1.0

250100198

$2.11

30j

Torx Head Screw M6 X 16

250000717

$2.11

40

Protection Cover Kit

703100399

$88.99

50

Support

709200495

$27.49

60

Grommet

293720062

$5.39

70

Radiator Pressure Cap

709200207

$25.49

72

Hex. Flange Screw M6 X 16

210261640

$2.11

80

Spacer

707000058

$13.49

90

Hex. Flange Screw M6 X 20

207662034

$2.11

100

Bushing

708001129

$11.99

110

Torx Screw M6 X 30

235563054

$4.44

120

Flat Washer

250200040

$1.90

121

Flat Washer M6, Stainless

234062600

$0.77

160

Outlet Hose

709200894

$35.99

170

Outlet Hose Engine Side

709200789

$73.99

180

Outlet Hose

709200892

$35.99

190

Hose

709200891

$14.31

200

Filler Neck

709200422

$18.49

210

Nipple Tube 1"

709200448

$20.99

220

Retainer

275500526

$4.55

230

Gear Clamp

509000162

$7.29

235

Hose Support

709200641

$9.69

240

Norma Spring Clamp

293650166

$4.44

245

Norma Gear Clamp

293650098

$4.44

250

Norma Spring Clamp

293650166

$4.44

260

Torx Head Screw M6 X 16

250000717

$2.11

265

Dart

293730062

$2.09

270

Spring Clamp

414554800

$0.88

280

Hex. Flange Screw M6 X 25

207662544

$0.64

290

Coolant Tank Ass'y | Includes 290 to 290b

703501190

$104.99

290b

Cap

709200586

$11.11

300

Hose Anchor

709200036

$11.12

330

Hex. Flange Screw M6 X 16, Scotch Grip

207561644

$1.90

340

Panel Nut M6 X 1.0

250100198

$2.11

350

Flange Elastic Nut M6

233261434

$4.44

355

Elastic Stop Nut M6

232561434

$1.99

360

Hex. Flange Elastic Nut M8

233281414

$1.47

370

Button Head Torx Screw M8 X 25 S.Gr

250000757

$2.00

380

Tubing 35 MM 1000MM Long

219704428

$10.99

380a

Tubing 35 mm

515176260

Unavailable

381

Tubing 35 MM 1000MM Long

219704428

$10.99

381a

Tubing 35 mm

515176260

Unavailable

390

End Piece Latch

517304075

$4.69

400

Panel Latch

517303981

$12.99

420

Grommet

293720096

$11.49

450

Was 415110000 Polyurethane Hose 5.2 mm

219704414

$121.99

450a

Hose 6 Mm 15000Mm Long

219704360

$132.49

460

Male Connector

414580700

$4.12

470

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

470a

Polyurethane Hose

293830193

Unavailable

480

Grommet

705003264

$4.09

490

Bushing

705202499

$6.67

495

Norma Spring Clamp

293650109

$4.12

500

Hex. Flange Screw M6 X 70

207667044

$0.85

510

Flat Washer M6, Stainless

234062600

$0.77

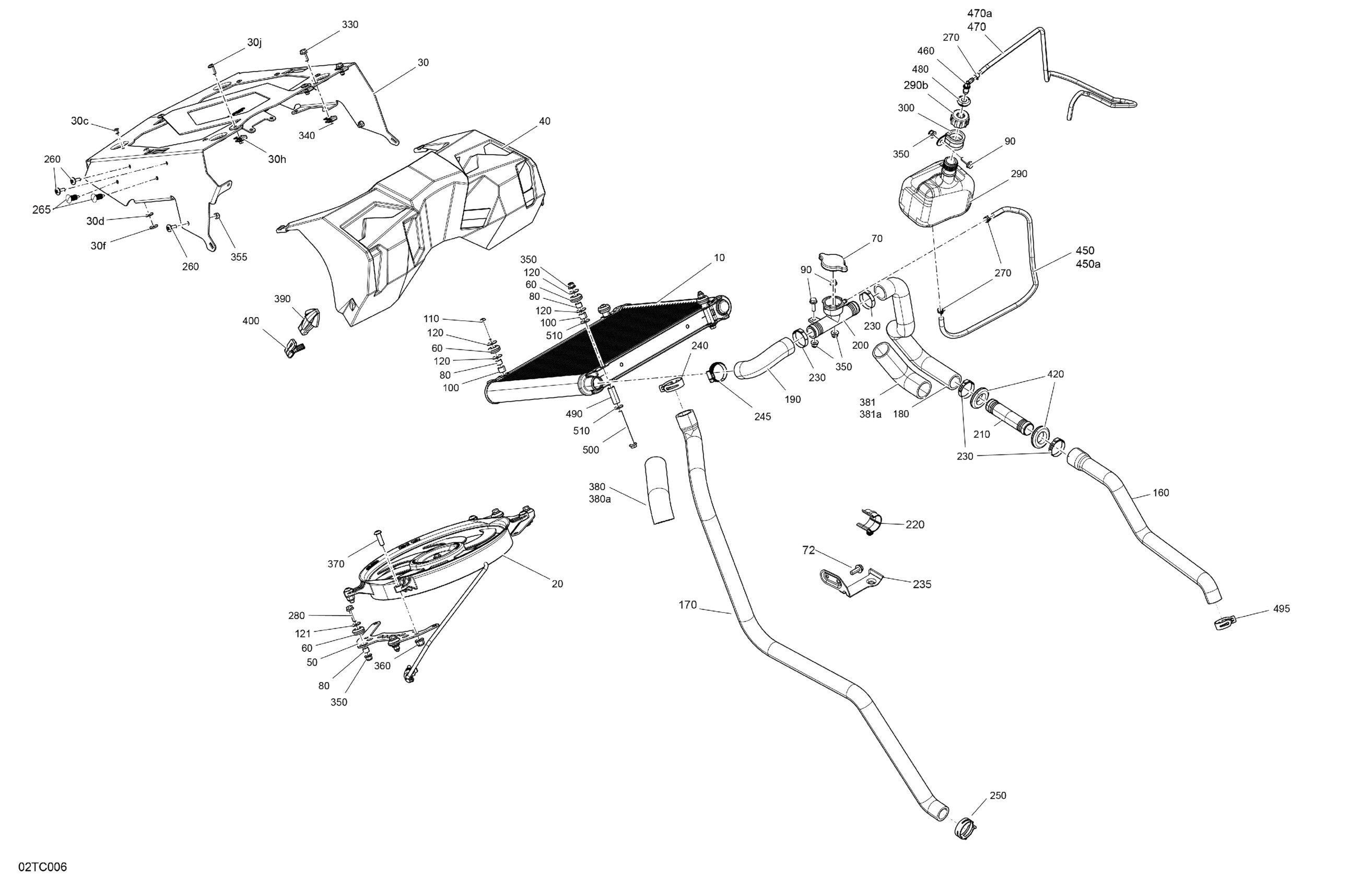

Can-Am 001 - Outlander 650 EFI - XMR - Nothern Lichen (5EPB) - CE, 2023 02- Engine - Cooling Diagram

Radiator

Fan Ass'y

Support Ass'y

Rivet 3/16"

Washer

Rubber Washer 5 mm

Panel Nut M6 X 1.0

Torx Head Screw M6 X 16

Protection Cover Kit

Support

Grommet

Radiator Pressure Cap

Hex. Flange Screw M6 X 16

Spacer

Hex. Flange Screw M6 X 20

Bushing

Torx Screw M6 X 30

Flat Washer

Flat Washer M6, Stainless

Outlet Hose

Outlet Hose Engine Side

Outlet Hose

Hose

Filler Neck

Nipple Tube 1"

Retainer

Gear Clamp

Hose Support

Norma Spring Clamp

Norma Gear Clamp

Norma Spring Clamp

Torx Head Screw M6 X 16

Dart

Spring Clamp

Hex. Flange Screw M6 X 25

Coolant Tank Ass'y | Includes 290 to 290b

Cap

Hose Anchor

Hex. Flange Screw M6 X 16, Scotch Grip

Panel Nut M6 X 1.0

Flange Elastic Nut M6

Elastic Stop Nut M6

Hex. Flange Elastic Nut M8

Button Head Torx Screw M8 X 25 S.Gr

Tubing 35 MM 1000MM Long

Tubing 35 mm

Tubing 35 MM 1000MM Long

Tubing 35 mm

End Piece Latch

Panel Latch

Grommet

Was 415110000 Polyurethane Hose 5.2 mm

Hose 6 Mm 15000Mm Long

Male Connector

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Polyurethane Hose

Grommet

Bushing

Norma Spring Clamp

Hex. Flange Screw M6 X 70

Flat Washer M6, Stainless
