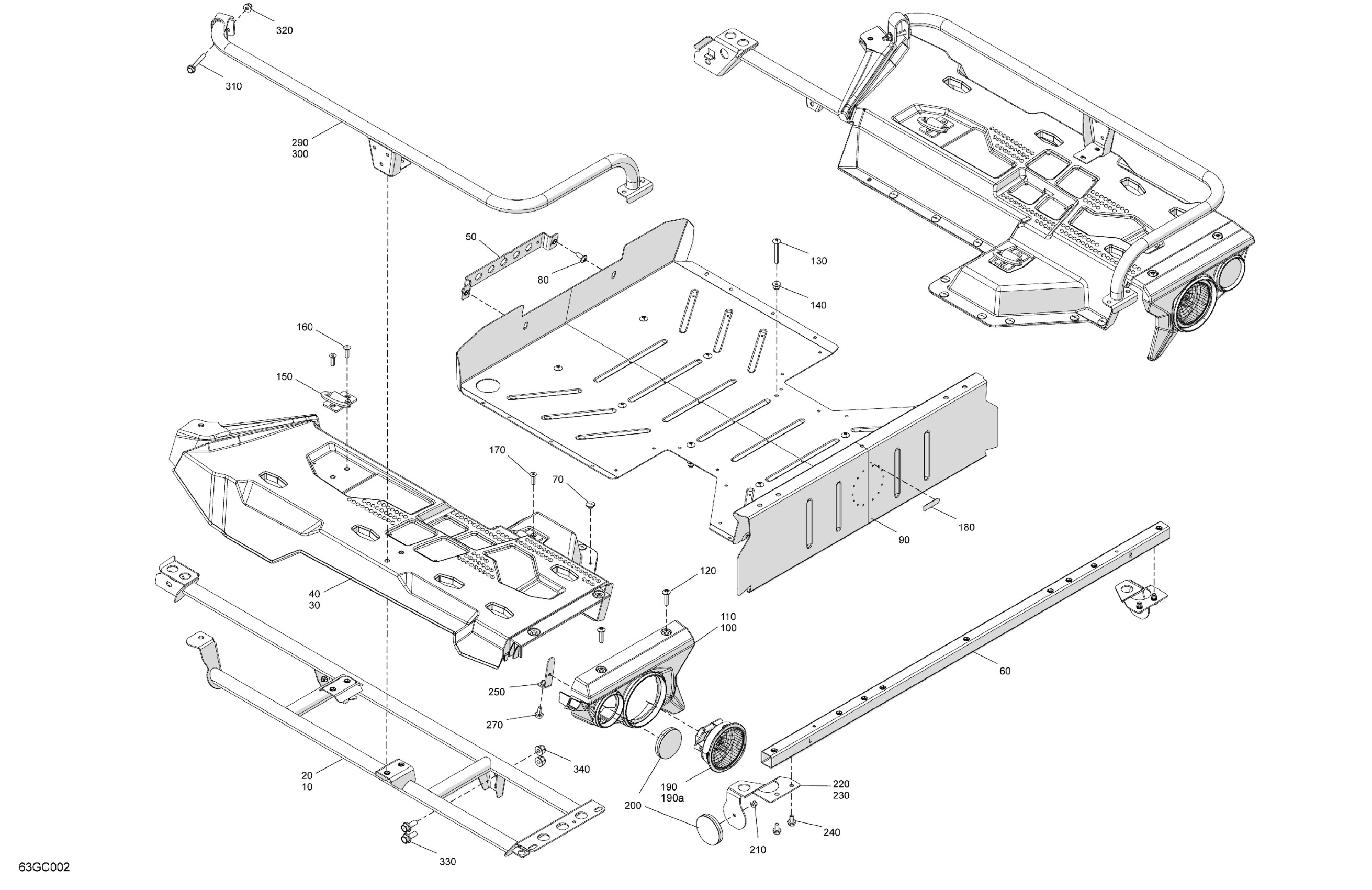

Can-Am 001 - Outlander MAX 6X6 - 450 EFI - DPS - International, 2023 07- Body - Cargo Diagram

#

Description
Price

10

RH Fender Support | Includes 1000 to 1000a

708302667

$279.99

20

LH Fender Support | Includes 1010 to 1010a

708302668

$279.99

30

RH Cargo Fender

708302687

$204.99

40

CARGO FENDER LH - Call your local BRP dealership

708302688

$134.99

50

Fastening Plate | Includes 1040 to 1040a

708302628

$33.99

60

Rear Support Tube | Includes 1050 to 1050a

708302619

$55.99

70

Pop Rivet 3/16"

293150103

$0.55

80

Torx Head Screw M6 X 16

250000717

$2.11

90

Middle Area

705207512

Unavailable

100

RH Light Cover

708302734

$13.99

110

LH Light Cover

708302735

$13.99

120

Torx Truss Screw M6 X 25

250000807

$2.11

130

Torx Screw M6 X 45

250000748

$1.90

140

Hex. Flange Elastic Nut M6 x 1.0

233261414

$1.47

150

Retaining Hook

708301189

$54.99

160

Screw-socket Hd.ctsk.m6 X 25

205362556

$1.90

170

Socket Screw HD.CTSK.DIN.7991 | not shown

205362096

$15.28

180

BRP Logo 68 mm

219902672

$13.99

190

Tail Light Ass'y | Includes 32 to 33

710001645

$83.49

190a

Bulb

520000758

$9.10

200

Red, Reflector

705016982

$14.49

210

Flange Elastic Nut M5

233251434

$2.00

220

LH Reflector Support

708302774

$16.49

230

RH Reflector Support

708302773

$16.49

240

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

250

Reflector Support

708302771

$6.49

260

Clinch Nut M6 Hexsert

605636003

$4.23

270

Hex. Flange Screw M6 X 12, Scotch Grip

207561244

$1.90

280

Rear Support | Not shown

708302946

Unavailable

290

LH Side Rail

708302788

$65.99

300

RH Side Rail

708302789

$65.99

310

Hex. Flange Screw

207664554

$2.11

320

Hex. Flange Elastic Nut M6

233261466

$2.00

330

Hex. Flange Screw M8 X 20

207682046

$1.90

340

Hex. Elastic Flange Nut M8

233281416

$1.48
