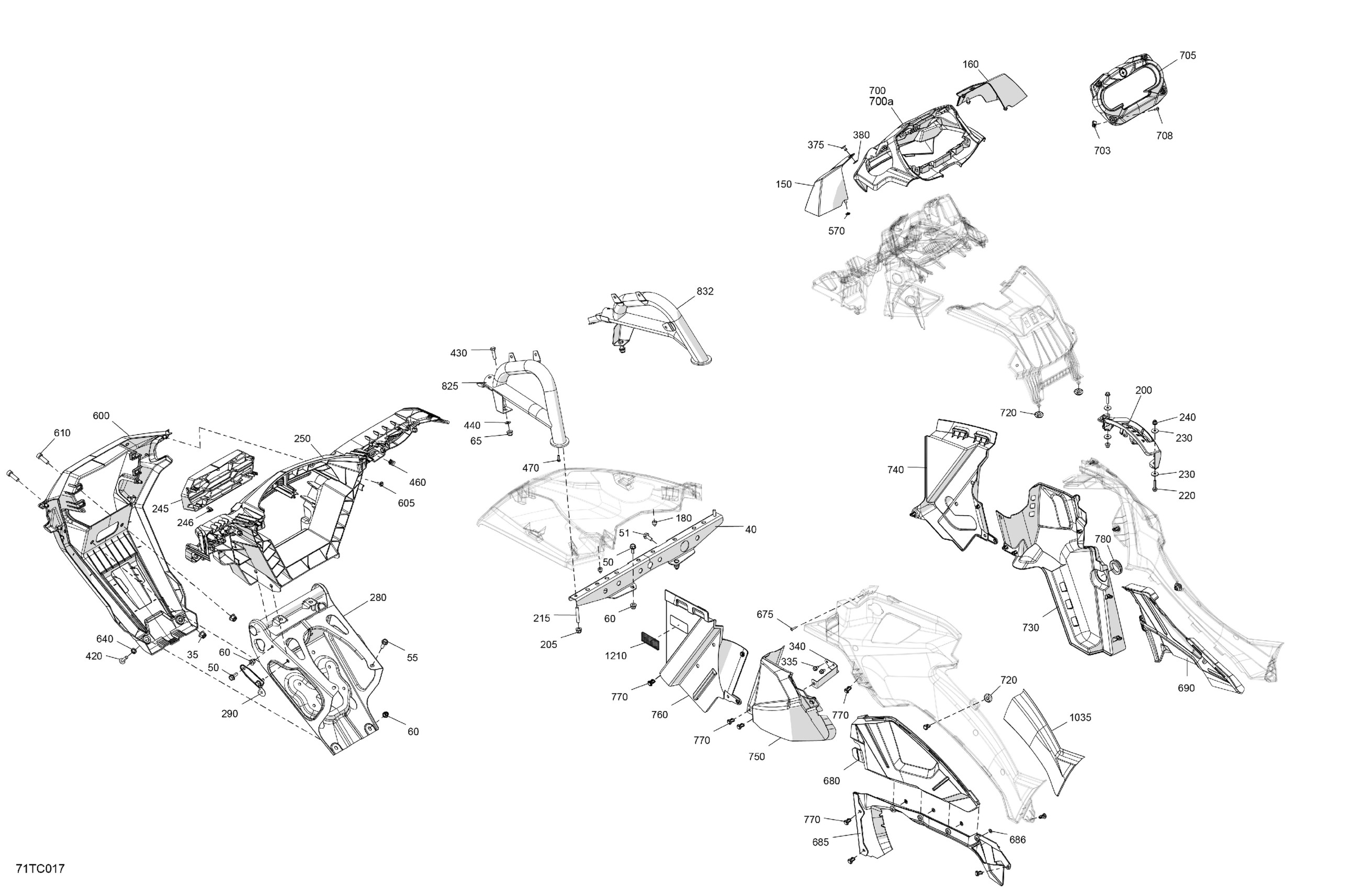

Can-Am 003 - Outlander 1000R EFI - XMR - International, 2023 07- Body - Front Section Diagram

#

Description
Price

35

Hex. Flange Elastic Nut M10

233201434

$2.09

40

Front Bumper Center Support

705006220

$88.99

50

Hex. Flange Screw M8 X 20

207682044

$1.15

51

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

55

Hex. Flange Screw M8 X 25, Scotch Grip

207582544

$1.69

60

Hex. Flange Elastic Nut M8

233281414

$1.47

65

Elastic Flange Nut M8

233281464

$1.01

150

LH Air Deflector

705006134

$26.99

160

RH Air Deflector

705006135

$24.99

180

Rubber Bumper

293830005

$8.09

200

Shift Lever Grille Kit

715008677

$28.99

205

Hex. Flange Elastic Nut M8

233281414

$1.47

215

Socket Set Screw M8 x 50

206285044

$4.65

220

Hex. Flange Screw M6 X 30, Scotch Grip | DS 650 X

207563034

$2.11

230

Flat Washer

224061201

$1.37

240

Flange Elastic Nut M6

233261434

$4.44

245

Air Inlet Grille

705016613

$26.99

246

Clip

517306478

$1.09

250

Fascia

705016526

$119.99

280

Front Bumper Support

705016893

$349.99

290

Lower Fender Support

705004565

$6.89

335

Hex. Flange Screw M6 X 10

210261040

$1.48

340

LH Inner Fender Bracket

705007140

$22.49

375

Pop Rivet 3/16" | DS 650 X

293150104

$1.09

380

Washer

517124300

$0.19

420

Torx Screw M8 X 30

250000886

$2.11

430

Hex. Cap Screw M8 X 30

207183054

$4.44

440

Stainless Steel Flat Washer 8 mm

234081670

$0.67

460

Edge Clip

517302785

$0.88

470

Hex. Flange Screw, Scotch Grip

207551634

$2.00

570

Push Nut

732610072

$2.19

600

Front Skid Plate

705016527

$51.99

605

Screw M4 X 16

250000725

$3.49

610

Socket Screw M10 x 30 | XT

205003044

$3.17

640

Ring

705004497

$5.19

675

Phillips Screw K40 X 16

250000723

$0.98

680

Deflector Body Panel Kit

715007294

$55.99

685

Deflector Body Panel

705014061

$43.99

686

Push Nut

732610072

$2.19

690

Engine Cover

705003444

$22.99

700

Gauge Support

705013983

$44.99

700a

Gauge Support

705013984

$19.99

703

Extruded Panel Nut M4 X 0.7

250100143

$8.49

705

Front Gauge Trim

705013985

$22.49

708

Torx Head Screw M4 X 16

250000797

$2.09

720

Grommet

705003264

$4.09

730

RH Wheel Arch Protector

705013925

$19.04

740

RH Front Wheel Arch Protector

705017002

$16.85

750

LH Wheel Arch Protector

705013924

$19.04

760

LH Front Wheel Arch Protector

705017001

$16.85

770

Tuflok Plastic Rivet

293150230

$1.47

780

Rubber Cover

293250242

$6.99

825

Magma Red, LH Radiator Support | Model Liquid Titan

705016602

$338.99

832

Magma Red, RH Radiator Support | Model Liquid Titan

705016603

$338.99

1035

Heat Shield

705008438

$8.89

1210

Amber, Reflector

520002680

$20.99
