Description

Price

10

Radiator

709200762

$419.99

20

Cooling Fan

709200763

$259.99

30

Hex Flange Screw M6 X 16

250000906

$5.29

40

Flat Washer 6 mm

234062410

$0.77

50

Grommet

709200948

$8.89

60

Hex. Flange Elastic Nut M6

233261466

$2.00

70

Grommet

709000582

$4.69

80

Bushing

709001288

$9.09

90

Flat Washer

250200082

$0.42

100

Hex. Flange Screw M6 X 30

207663046

$1.69

110

Radiator Pressure Cap

709200207

$25.49

140

Norma Spring Clamp

293650108

$4.12

150

Norma Spring Clamp

293650109

$4.12

160

Norma Spring Clamp

293650108

$4.12

200

Coolant Hose

709200947

$33.99

210

Cap

709201222

$13.75

220

Tuflok Plastic Rivet

293150230

$1.47

240

Coolant Hose

709200939

$33.99

300

Hose

709200937

$33.99

310

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

320

Polyurethane Hose 4000MM Long | Includes 250 to 250a

219704389

$78.49

330

Spring Clamp

414554800

$0.88

340

Spring Clamp

414420700

$0.72

360

Tube

709201205

$19.49

390

End Piece Latch

517304075

$4.69

400

Panel Latch

517303981

$12.99

500

Support

709201150

$38.99

510

Pop Rivet 3/16"

390406500

$0.88

520

Brake Pedal Spring

705600792

$9.10

530

Filler Neck

709200422

$18.49

540

Hex. Flange Screw M6 X 20

207662034

$2.11

550

Panel Nut M6 X 1.0

250100198

$2.11

570

Gear Clamp

509000162

$7.29

600

Coolant Tank Ass'y | Includes 290 to 290b

703501190

$104.99

600b

Cap

709200586

$11.11

610

Hose Anchor

709200036

$11.12

620

Hex. Flange Screw M6 X 16

207661646

$1.36

630

Panel Nut M6 X 1.0

250100208

$1.46

640

Grommet

705003264

$4.09

650

Male Connector

414580700

$4.12

660

Bumper Reinforcement

705211684

$249.99

670

Hex. Flange Screw M8 X 20, Scotch Grip

207582044

$1.69

680

Hex. Flange Nut M8

233181414

$1.15

690

Panel Nut M8 X 1.25

250100236

$4.13

710

Gasket

709201191

$8.57

720

Pop Rivet 3/16"

293150103

$0.55

730

Hood Ass'y | Includes 730 to 730c

709201249

$289.99

730c

Edge Clip

517302785

$0.88

760

Spacer

709201214

$2.68

780

Torx Screw M6 X 45

250000748

$1.90

800

Gasket

709201192

$8.57

840

Tool Kit Support

709201283

$53.99

841

Panel Nut M6 X 1.0

250100208

$1.46

842

Stainless Steel Flat Washer

234062670

$2.11

843

Torx Head Screw M6 X 16

250000717

$2.11

844

Retaining Strap

708303885

$3.06

860

Hood

709201212

$28.99

870

Torx Truss Screw M6 X 20

250000488

$2.11

871

Torx Screw M6 X 35

250000541

$2.11

880

Hex. Flange Elastic Nut M6

233261466

$2.00

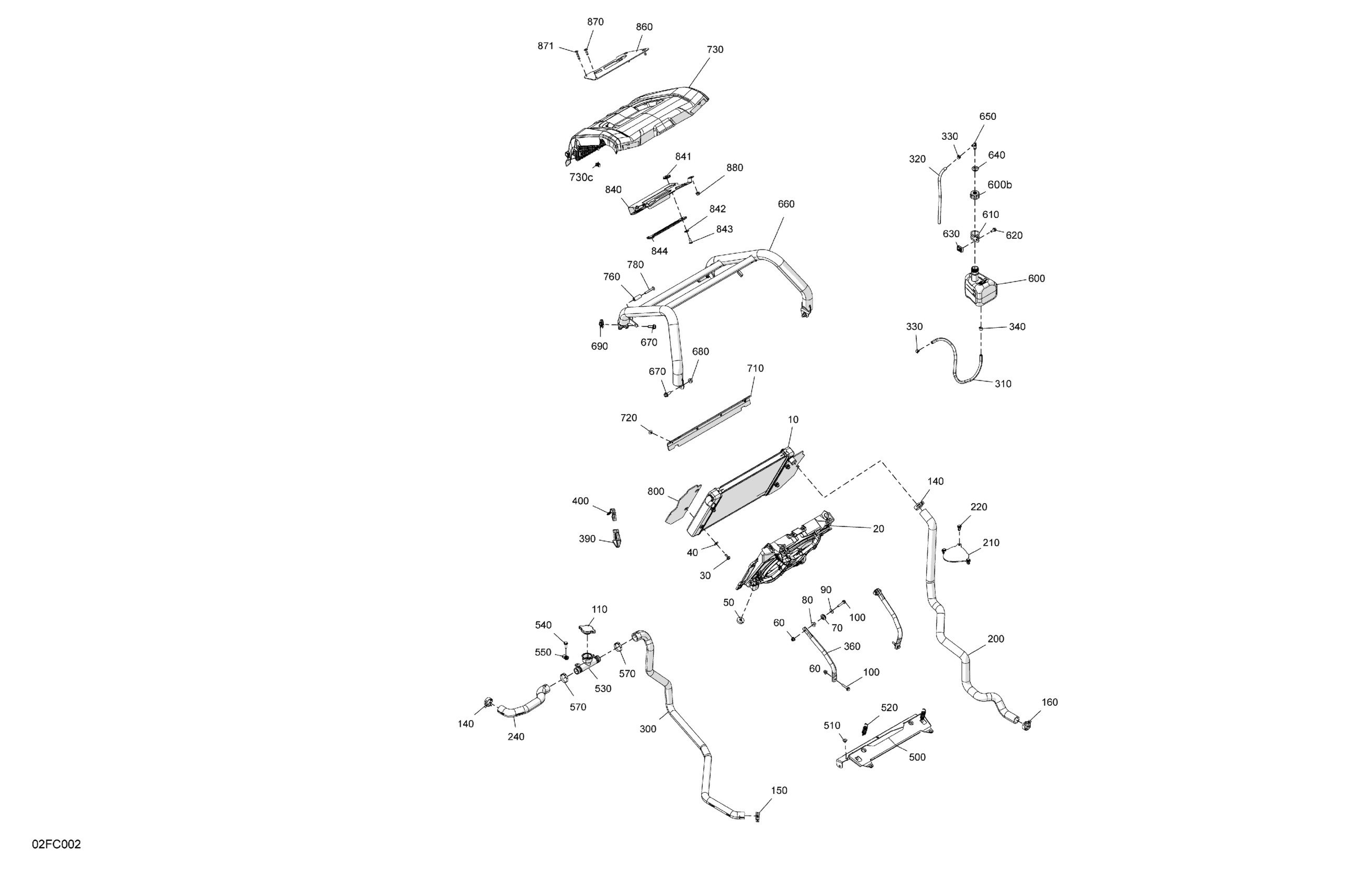

Can-Am 005 - Outlander X mr 700 - International, 2023 02- Engine - Cooling Diagram

Radiator

Cooling Fan

Hex Flange Screw M6 X 16

Flat Washer 6 mm

Grommet

Hex. Flange Elastic Nut M6

Grommet

Bushing

Flat Washer

Hex. Flange Screw M6 X 30

Radiator Pressure Cap

Norma Spring Clamp

Norma Spring Clamp

Norma Spring Clamp

Coolant Hose

Cap

Tuflok Plastic Rivet

Coolant Hose

Hose

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Polyurethane Hose 4000MM Long | Includes 250 to 250a

Spring Clamp

Spring Clamp

Tube

End Piece Latch

Panel Latch

Support

Pop Rivet 3/16"

Brake Pedal Spring

Filler Neck

Hex. Flange Screw M6 X 20

Panel Nut M6 X 1.0

Gear Clamp

Coolant Tank Ass'y | Includes 290 to 290b

Cap

Hose Anchor

Hex. Flange Screw M6 X 16

Panel Nut M6 X 1.0

Grommet

Male Connector

Bumper Reinforcement

Hex. Flange Screw M8 X 20, Scotch Grip

Hex. Flange Nut M8

Panel Nut M8 X 1.25

Gasket

Pop Rivet 3/16"

Hood Ass'y | Includes 730 to 730c

Edge Clip

Spacer

Torx Screw M6 X 45

Gasket

Tool Kit Support

Panel Nut M6 X 1.0

Stainless Steel Flat Washer

Torx Head Screw M6 X 16

Retaining Strap

Hood

Torx Truss Screw M6 X 20

Torx Screw M6 X 35

Hex. Flange Elastic Nut M6
